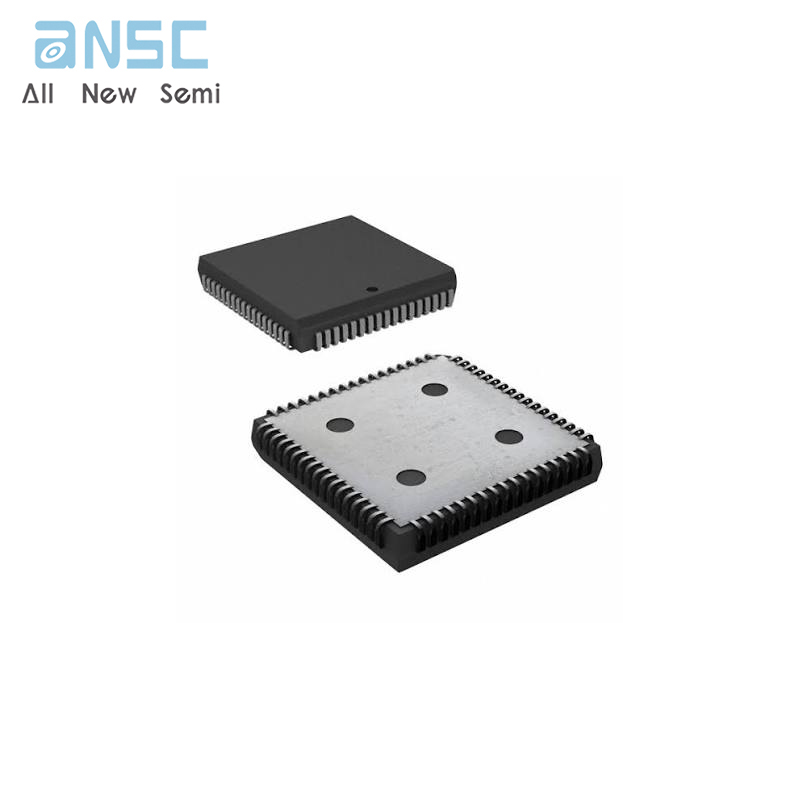

Hot-selling and scarce HPC46004V20 High-Performance microController PLCC68 spot stock

Product Descriptions

The HPC46164 and HPC46104 are members of the HPCTM family of High Performance microControllers. Each member of the family has the same core CPU with a unique memory and I/O configuration to suit specific applications. The HPC46164 has 16k bytes of on-chip ROM. The HPC46104 has no on-chip ROM and is intended for use with external memory. Each part is fabricated in National’s advanced microCMOS technology. This process combined with an advanced architecture provides fast, flexible I/O control, efficient data manipulation, and high speed computation.

The HPC devices are complete microcomputers on a single chip. All system timing, internal logic, ROM, RAM, and I/O are provided on the chip to produce a cost effective solution for high performance applications. On-chip functions such as UART, up to eight 16-bit timers with 4 input capture registers, vectored interrupts, WATCHDOGTM logic and MICROWIRE/PLUSTM provide a high level of system integration. The ability to address up to 64k bytes of external memory enables the HPC to be used in powerful applications typically performed by microprocessors and expensive peripheral chips. The term ‘‘HPC46164’’ is used throughout this datasheet to refer to the HPC46164 and HPC46104 devices unless otherwise specified.

The HPC46164 and HPC46104 have, as an on-board peripheral, an 8-channel 8-bit Analog-to-Digital Converter. This A/D converter can operate in a single-ended mode where the analog input voltage is applied across one of the eight input channels (D0 –D7) and AGND. The A/D converter can also operate in differential mode where the analog input voltage is applied across two adjacent input channels. The A/D converter will convert up to eight channels in singleended mode and up to four channel pairs in differential mode

The microCMOS process results in very low current drain and enables the user to select the optimum speed/power product for his system. The IDLE and HALT modes provide further current savings. The HPC is available only in an 80-pin PQFP package.

Product Features

Y HPC familyÐcore features:

Ð 16-bit architecture, both byte and word

Ð 16-bit data bus, ALU, and registers

Ð 64k bytes of external direct memory addressing

Ð FASTÐ200 ns for fastest instruction when using 20.0 MHz clock, 134 ns at 30.0 MHz

Ð High code efficiencyÐmost instructions are single byte

Ð 16 x 16 multiply and 32 x 16 divide

Ð Eight vectored interrupt sources

Ð Four 16-bit timer/counters with 4 synchronous outputs and WATCHDOG logic

Ð MICROWIRE/PLUS serial I/O interface

Ð CMOSÐvery low power with two power save modes:IDLE and HALT

Y A/DÐ8-channel 8-bit analog-to-digital converter with ±1/2 LSB non-linearity

Y UARTÐfull duplex, programmable baud rate

Y Four additional 16-bit timer/counters with pulse width modulated outputs

Y Four input capture registers

Y 52 general purpose I/O lines (memory mapped)

Y 16k bytes of ROM, 512 bytes of RAM on-chip

Y ROMless version available (HPC46104)

Y Commercial (0§C to a70§C) and industrial (-40℃ to +85℃) temperature ranges

Product Photos

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
