Hot-selling and scarce MPC82E54AS 8-bit micro-controller SOP20 spot stock

Product Descriptions

MPC82x54A is a single-chip 8-bit micro-controller with instruction sets fully compatible with industrial-standard 80C51 series microcontroller.

There is an excellent MCU kernel built in this device compared to general 80C51 MCUs those take twelve oscillating cycles to finish an instruction, and this unique device could take only one oscillating cycle to finish one instruction.

There is 15.5 Kbytes flash memory embedded which could be used as program or data. Also the  In-System  Programming and  In-Application  Programming mechanisms are supported. The data endurance of the embedded flash gets over 20,000 times, and 21 years data retention is guaranteed.

Product Features

 Enhanced 80C51 Central Processing Unit

15.5K bytes on-chip flash memory with ISP/IAP capability

256 bytes scratch-pad RAM and 256 bytes auxiliary RAM

Two-level code protection for flash memory access

Two 16-bits timer/counter

7 sources, 4-level-priority interrupt capability

One enhanced UART with automatic address recognition and frame error detection

15 bits Watch-Dog-Timer with 8-bit pre-scalar, one-time enabled

SPI Master/Slave mode

Programmable Counter Array (PCA)

10-bit Analog-to-Digital Converter (ADC)

Power control: Idle mode and Power-Down mode, Power-down can be woken-up through

INT0 and INT1

27 programmable I/O ports

Alternative built-in 6MHz oscillator

Fully static operation

Excellent noise immunity

On-Chip flash program/data memory:

- The data endurance of the embedded flash gets over 20,000 times.

- Greater than 100 years data rentention under room temperature

Very low power consumption

Operating Voltage:

- 4.5V~5 .5V for MPC82E54A

-  2.4V~3 .6V  for  MPC82L54A,  minimum  2.7V  requirement  in  flash  write  operation

(ISP/ICP/…...)

- Built-in Low-Voltage Detector and Reset circuit.

Operating Temperature

- Industrial (-40°C to +85°C)*

Maximum Operating Frequency:

- Up to 24MHz, Industrial range

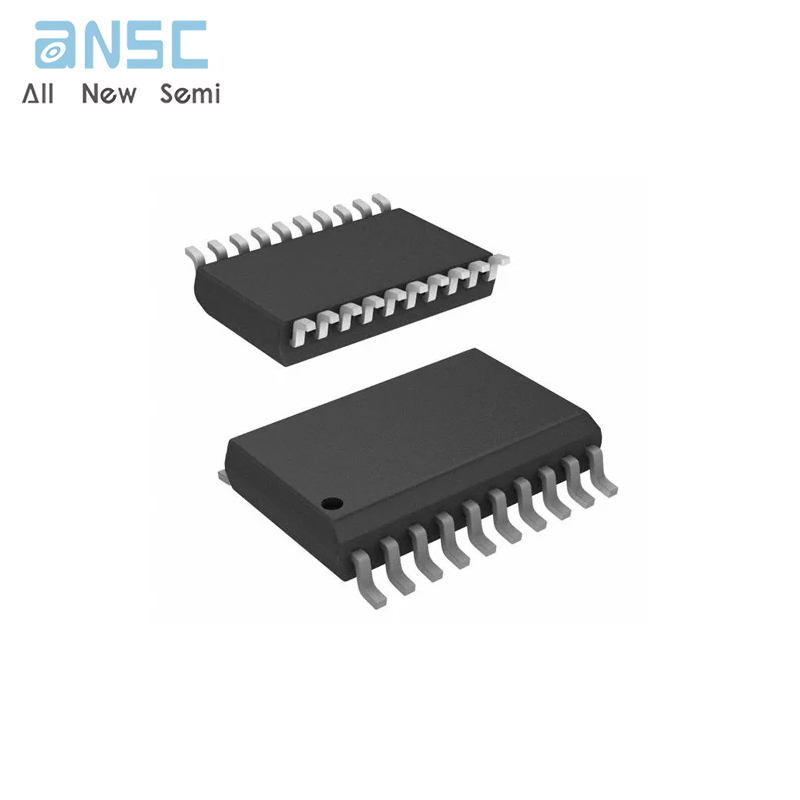

Product Photos

For more product information, please download the PDF
