Hot selling One stop supply of electronic components PIC16LF870-I/SS 28/40-Pin 8Bit CMOS FLASH Microcontrollers IC 20MHz 3.5KB

Product Features

Microcontroller Core Features:

• High performance RISC CPU

• Only 35 single word instructions to learn

• All single cycle instructions except for program branches which are two-cycle

• Operating speed:

                              DC - 20 MHz clock input

                              DC - 200 ns instruction cycle

• 2K x 14 words of FLASH Program Memory

  128 x 8 bytes of Data Memory (RAM)

  64 x 8 bytes of EEPROM Data Memory

• Pinout compatible to the PIC16CXXX 28 and 40-pin devices

• Interrupt capability (up to 11 sources)

• Eight level deep hardware stack

• Direct, Indirect and Relative Addressing modes

• Power-on Reset (POR)

• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

• Programmable code protection

• Power saving SLEEP mode

• Selectable oscillator options

• Low power, high speed CMOS FLASH/EEPROM technology

• Fully static design

• In-Circuit Serial Programming(ICSP) via two pins

• Single 5V In-Circuit Serial Programming capability

• In-Circuit Debugging via two pins

• Processor read/write access to program memory

• Wide operating voltage range: 2.0V to 5.5V

• High Sink/Source Current: 25 mA

• Commercial and Industrial temperature ranges

• Low power consumption:

- < 1.6 mA typical @ 5V, 4 MHz

- 20 A typical @ 3V, 32 kHz

- < 1 A typical standby current

Peripheral Features:

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler,can be incremented during SLEEP via external crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• One Capture, Compare, PWM module

- Capture is 16-bit, max. resolution is 12.5 ns

- Compare is 16-bit, max. resolution is 200 ns

- PWM max. resolution is 10-bit

• 10-bit multi-channel Analog-to-Digital converter

• Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address detection

• Parallel Slave Port (PSP) 8-bits wide, with external RD, WR and CS controls (40/44-pin only)

• Brown-out detection circuitry for Brown-out Reset (BOR)

Specifications

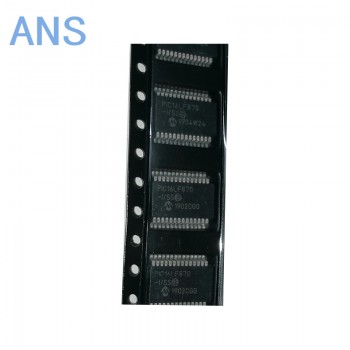

Actual product photos
