Hot-selling and scarce AD567JD Microprocessor-Compatible 12-Bit D/A Converter DIP-28 spot stock
Manufacturer Product Number
AD567JD
Description
AD567JD Microprocessor-Compatible 12-Bit D/A Converter DIP-28 spot stock
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Single Chip Construction
Double-Buffered Latch for 8-Bit uP-Compatibility
Fast Settling Time: 500ns max to +1/2LSB
High Stability Buried Zener Reference on Chip
Monotonicity Guaranteed Over Temperature
Linearity Guaranteed Over Temperature: 1/2LSB max(AD567K)
Guaranteed for Operation with +12V or +15V Supplies
Low Power: 300mW Including Reference
TTL/5V CMOS Compatible Logic Inputs
Low Cost
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD567JD |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 500ns |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Architecture | R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| Mounting Type | Through Hole |
| Base Product Number | AD567 |

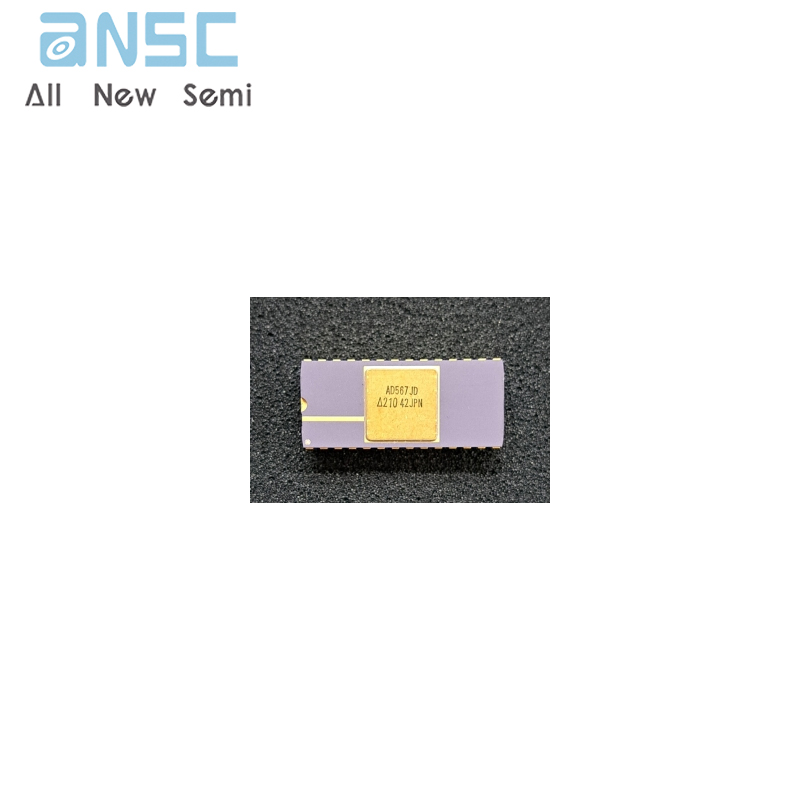

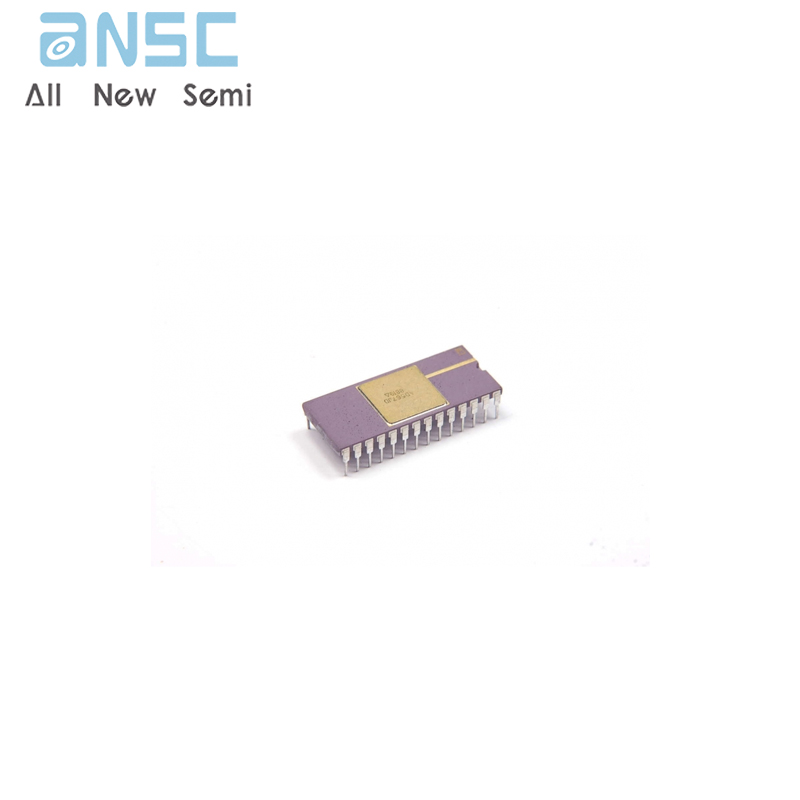

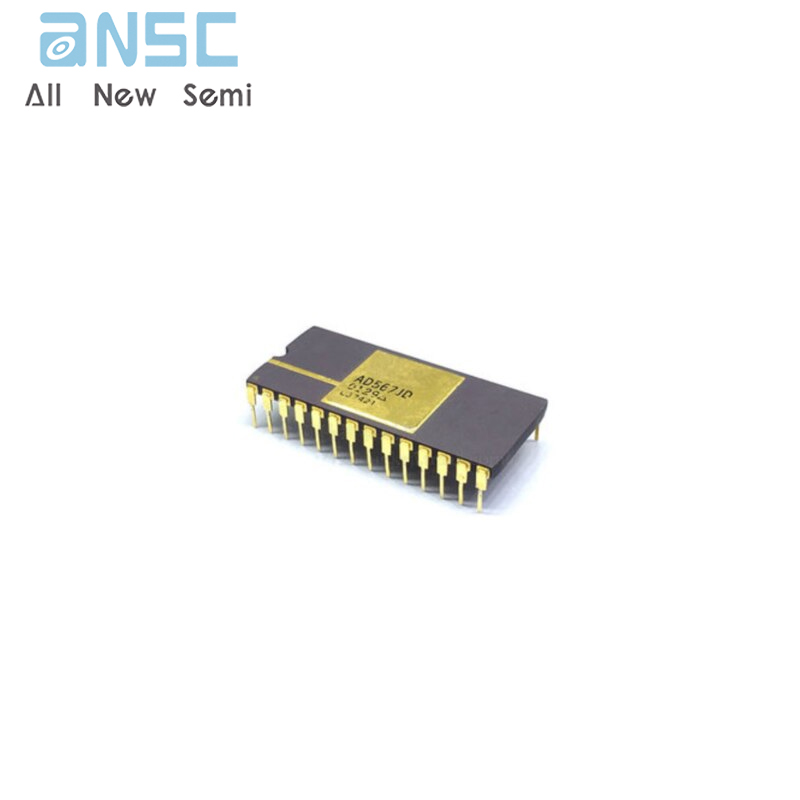

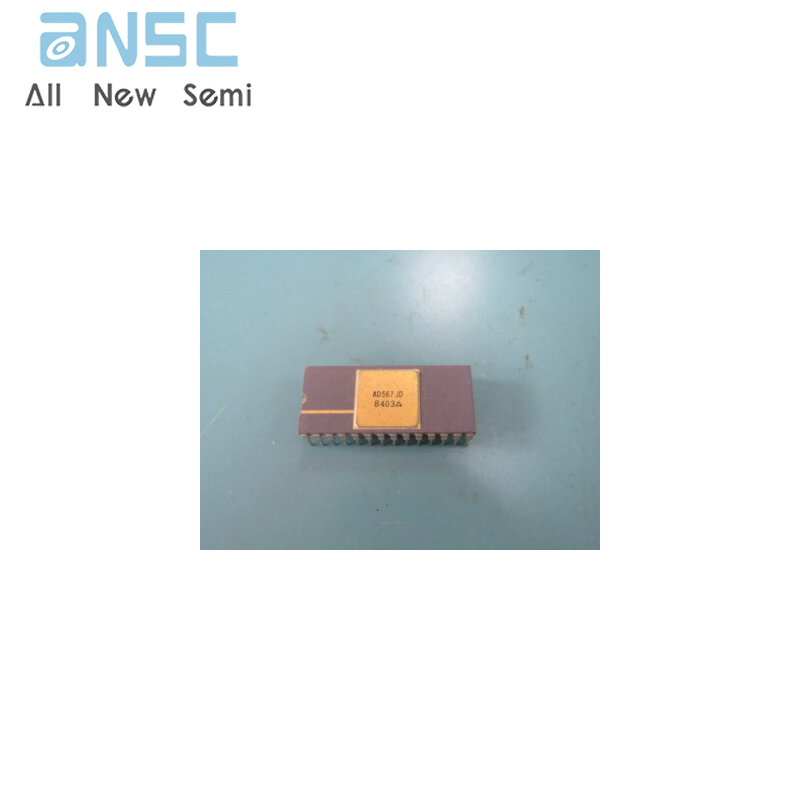

Product Photos
For more product information, please download the PDF
