Hot-selling and scarce MPC8313CZQAFF Microprocessor IC 516-TEPBGA spot stock

Product Descriptions

The MPC8313E incorporates the e300c3 core, which includes 16 Kbytes of L1 instruction and data caches  and on-chip memory management units (MMUs). The MPC8313E has interfaces to dual enhanced  three-speed 10/100/1000 Mbps Ethernet controllers, a DDR1/DDR2 SDRAM memory controller, an  enhanced local bus controller, a 32-bit PCI controller, a dedicated security engine, a USB 2.0 dual-role  controller and an on-chip full-speed PHY, a programmable interrupt controller, dual I2 C controllers, a  4-channel DMA controller, and a general-purpose I/O port. ​

Product Features

• Embedded PowerPC™ e300 processor core built on Power Architecture™ technology; operates at up to 333 MHz.

• High-performance, low-power, and cost-effective host processor

• DDR1/DDR2 memory controller—one 16-/32-bit interface at up to 333 MHz supporting both DDR1 and DDR2

• 16-Kbyte instruction cache and 16-Kbyte data cache, a floating point unit, and two integer units

• Peripheral interfaces such as 32-bit PCI interface with up to 66-MHz operation, 16-bit enhanced local bus interface with up to 66-MHz operation, and USB 2.0 (full speed) with an on-chip PHY.

• Security engine provides acceleration for control and data plane security protocols

• Power management controller for low-power consumption

• High degree of software compatibility with previous-generation PowerQUICC processor-based designs for backward compatibility and easier software migration

Product Specification

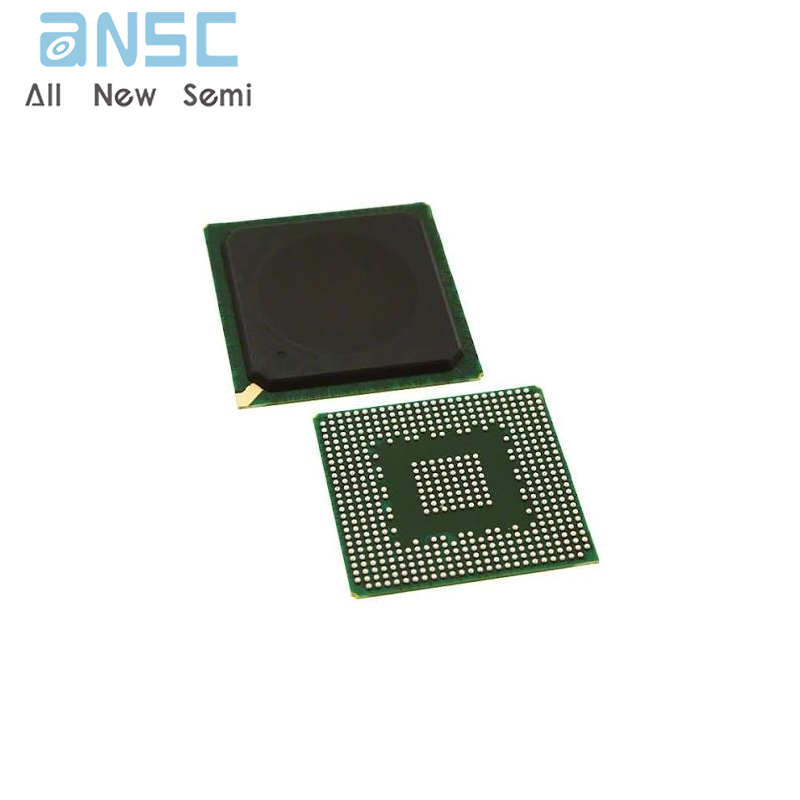

Product Photos

For more product information, please download the PDF
