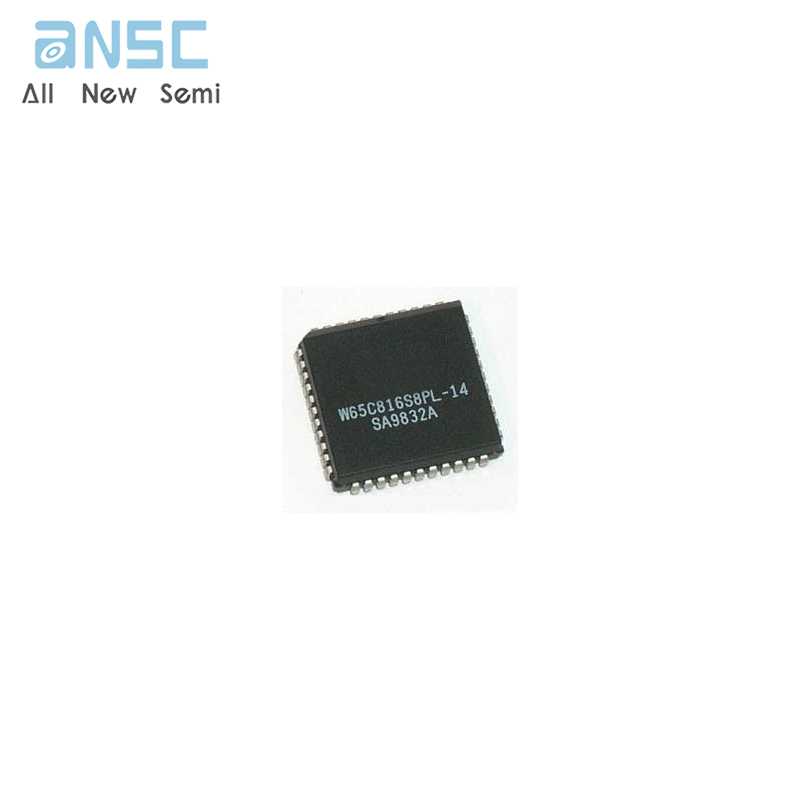

Hot-selling and scarce W65C816S8PL-14 Microprocessor IC PLCC44 spot stock

Product Features

· Advanced fully static CMOS design for low power  consumption and increased noise immunity

· Wide operating voltage range, 1.8+/- 5%, 2.5+/- 5%,  3.0+/- 5%, 3.3+/- 10%, 5.0+/- 5% specified for use  with advanced low voltage peripherals

· Emulation mode allows complete hardware and software compatibility with 6502 designs

· 24-bit address bus provides access to 16 MBytes of  memory space

· Full 16-bit ALU, Accumulator, Stack Pointer and Index Registers

· Valid Data Address (VDA) and Valid Program Address (VPA) output for dual cache and cycle steal  DMA implementation

· Vector Pull (VPB) output indicates when interrupt vectors are being addressed

· Abort (ABORTB) input and associated vector supports  processor repairs of bus error conditions

· Low power consumption (300uA@1MHz)

· Separate program and data bank registers allow program segmentation or full 16 MByte linear  addressing

· New Direct Register and stack relative addressing provides capability for re-entrant, re-cursive and relocatable programming

· 24 addressing modes - 13 original 6502 modes with 92  instructions using 256 OpCodes

· Wait-for-Interrupt (WAI) and Stop-the-Clock (STP)  instructions further reduce power consumption, decrease interrupt latency and allows synchronization  with external events

​· Co-Processor (COP) instruction with associated vector  supports co-processor configurations, i.e., floating point  processors

· Block move ability

Product Photos

For more product information, please download the PDF
