Spot sales of MAX795SCSA 3.0V/3.3V Adjustable Microprocessor Supervisory Circuits SOP-8

Product Descriptions

The MAX793/MAX794/MAX795 microprocessor (µP) supervisory circuits monitor and control the activities of +3.0V/+3.3V µPs by providing backup-battery switchover, among other features such as low-line indication, µP reset, write protection for CMOS RAM, and a watchdog (see the Selector Guide below). The backup-battery voltage can exceed VCC, permitting the use of 3.6V lithium batteries in systems using 3.0V to 3.3V for VCC

The MAX793/MAX795 offer a choice of reset threshold voltage range (denoted by suffix letter): 3.00V to 3.15V (T), 2.85V to 3.00V (S), and 2.55V to 2.70V (R). The MAX794’s reset threshold is set externally with a resistor divider. The MAX793/MAX794 are available in 16-pin DIP and narrow SO packages, and the MAX795 comes in 8-pin DIP and SO packages. For similar devices designed for 5V systems

Product Features

MAX793/MAX794/MAX795

♦ Precision Supply-Voltage Monitor:

Fixed Reset Trip Voltage (MAX793/MAX795)

Adjustable Reset Trip Voltage (MAX794)

♦ Guaranteed Reset Assertion to VCC = 1V

♦ Backup-Battery Power Switching—Battery Voltage Can Exceed VCC

♦ On-Board Gating of Chip-Enable Signals—7ns Max Propagation Delay

MAX793/MAX794 Only

♦ Battery Freshness Seal

♦ Battery OK Output (MAX793)

♦ Uncommitted Voltage Monitor for Power-Fail or Low-Battery Warning

♦ Independent Watchdog Timer (1.6sec timeout)

♦ Manual Reset Input

Product Applications

Battery-Powered Computers and Controllers

Embedded Controllers

Intelligent Controllers

Critical µP Power Monitoring

Portable Equipment

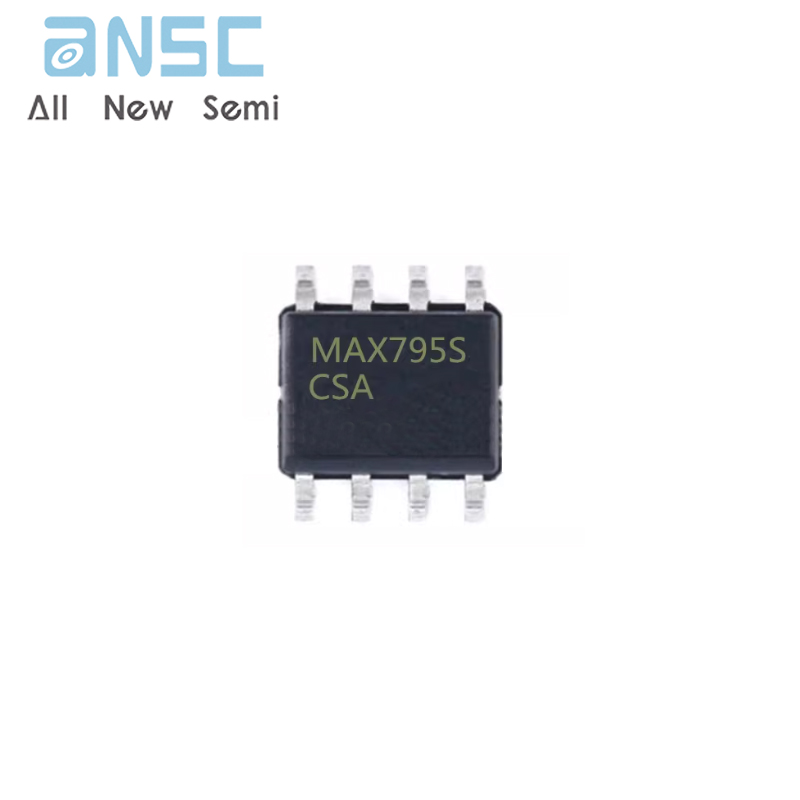

Product Photos
