Hot-selling and scarce MC68020RP25E Microprocessor IC PGA114 spot stock

Product Features

• Object-Code Compatible with Earlier M68000 Microprocessors

• Addressing Mode Extensions for Enhanced Support of High-Level Languages

• New Bit Field Data Type Accelerates Bit-Oriented Applications—e.g., Video Graphics

• An On-Chip Instruction Cache for Faster Instruction Execution

• Coprocessor Interface to Companion 32-Bit Peripherals—the MC68881 and MC68882 Floating-Point Coprocessors and the MC68851 Paged Memory Management Unit

• Pipelined Architecture with High Degree of Internal Parallelism Allowing Multiple Instructions To Be Executed Concurrently

• High-Performance Asynchronous Bus Is Nonmultiplexed and Full 32 Bits

• Dynamic Bus Sizing Efficiently Supports 8-/16-/32-Bit Memories and Peripherals

• Full Support of Virtual Memory and Virtual Machine

• Sixteen 32-Bit General-Purpose Data and Address Registers

• Two 32-Bit Supervisor Stack Pointers and Five Special-Purpose Control Registers

• Eighteen Addressing Modes and Seven Data Types

• 4-Gbyte Direct Addressing Range for the MC68020

• 16-Mbyte Direct Addressing Range for the MC68EC020

• Selection of Processor Speeds for the MC68020: 16.67, 20, 25, and 33.33 MHz

• Selection of Processor Speeds for the MCEC68020: 16.67 and 25 MHz

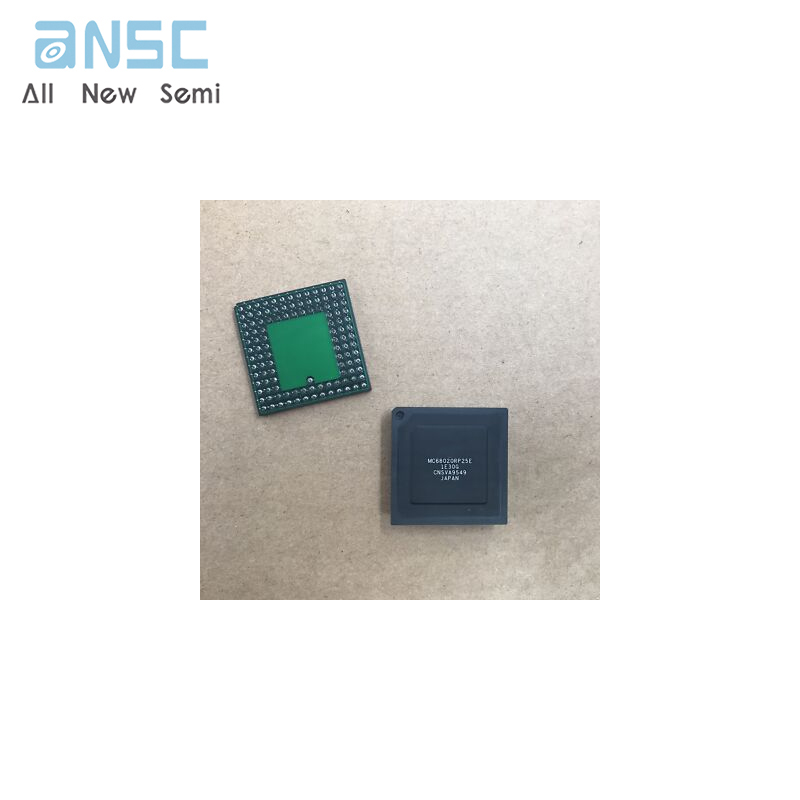

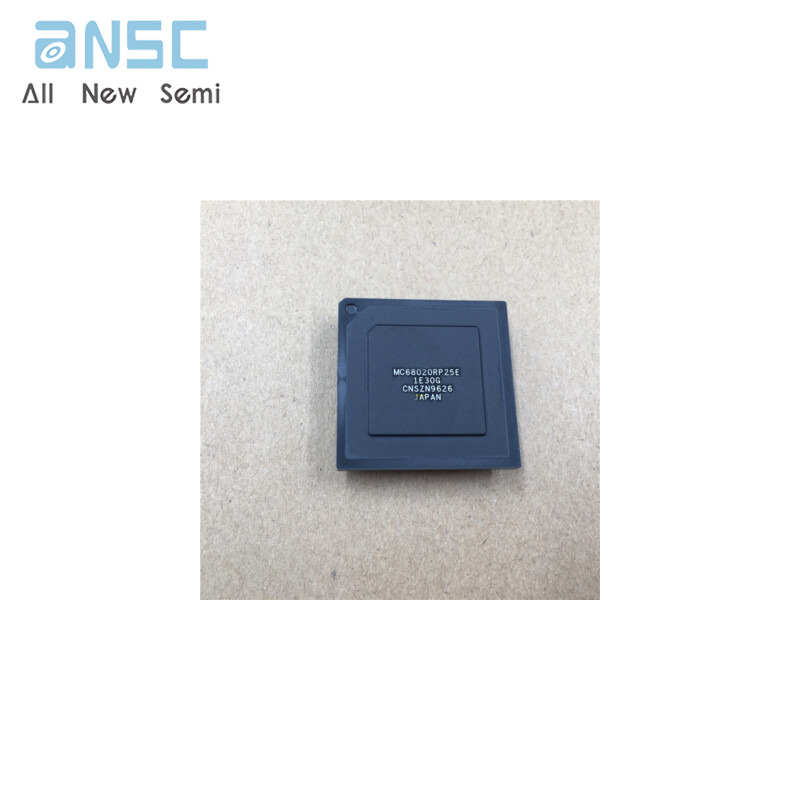

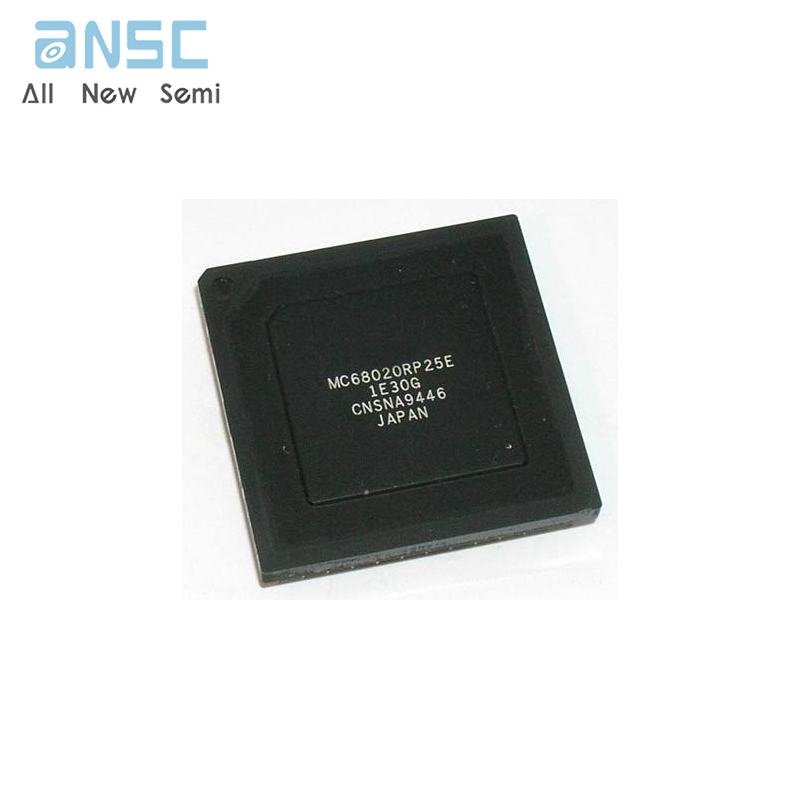

Product Photos

​

For more product information, please download the PDF
