Hot-selling and scarce Z8018010VSC 8-Bit 10MHz Microprocessor IC 68-PLCC spot stock

Product Descriptions

The Z80180 is an 8-bit MPU which provides the benefits of reduced system costs and also  provides full backward compatibility with existing Zilog Z80 devices.

Reduced system costs are obtained by incorporating several key system functions on-chip  with the CPU. These key functions include I/O devices such as DMA, UART, and timer ​channels. Also included on-chip are wait-state generators, a clock oscillator, and an interrupt controller.

Product Features

• Code compatible with Zilog Z80® CPU

• Extended instructions

• Two DMA channels

• Low power-down modes

• On-chip interrupt controllers

• Three on-chip wait-state generators

• On-chip oscillator/generator

• Expanded MMU addressing (up to 1 MB)

• Clocked serial I/O port

• Two 16-Bit counter/timers

• Two UARTs

• Clock Speeds: 6 MHz, 8 MHz, and 10 MHz

• 6 MHz version supports 6.144 MHz CPU clock operation

• Operating range: 5 V

• Operating temperature range:

– 0 ºC to +70 ºC

– –40 ºC to +85 ºC

• Three packaging styles

– 68-Pin PLCC

– 64-Pin DIP

– 80-Pin QFP

Product Specification

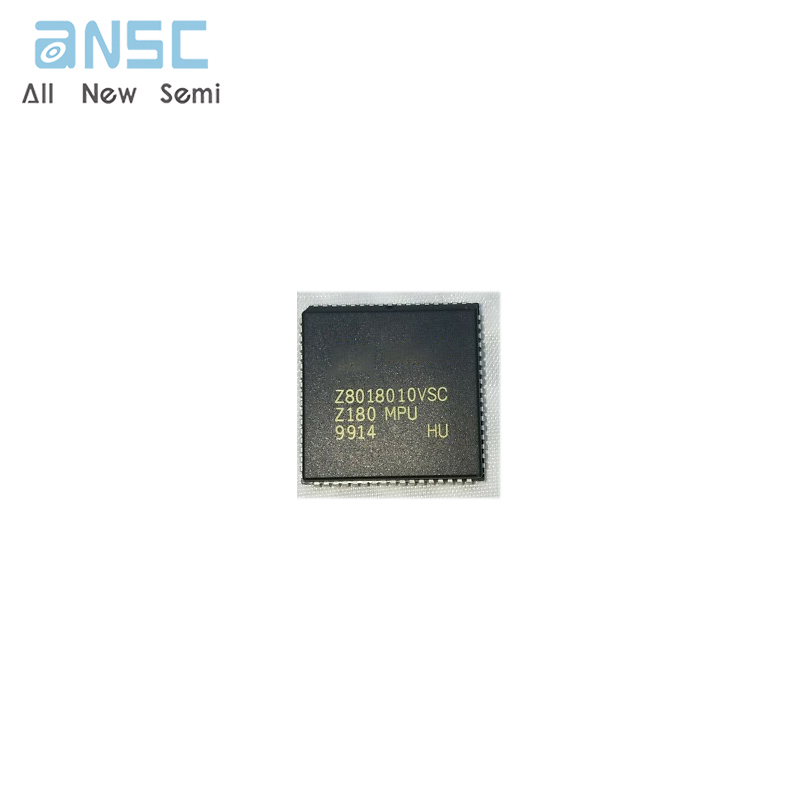

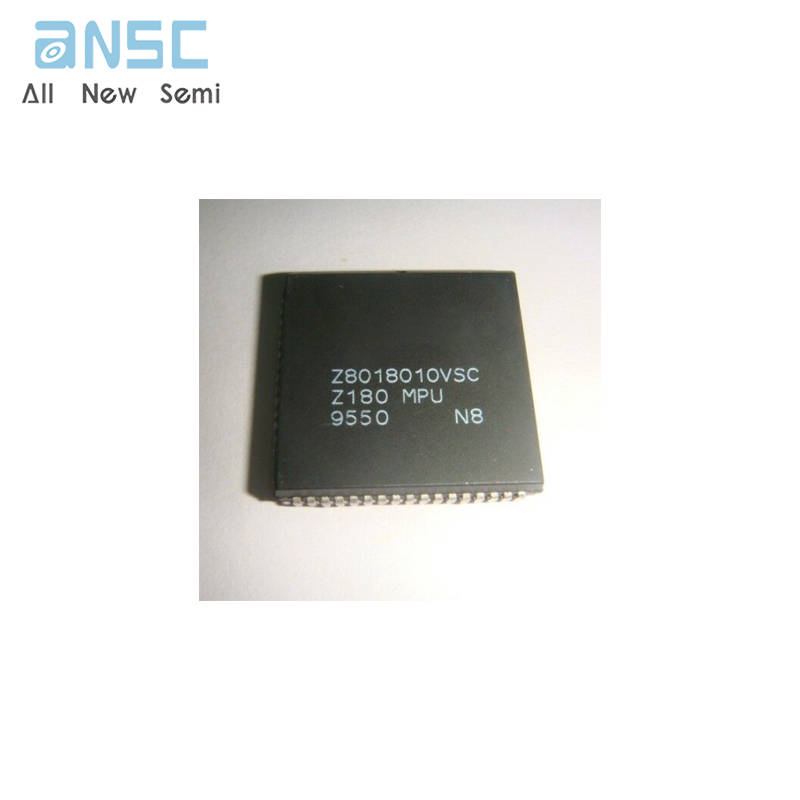

Product Photos

For more product information, please download the PDF
