Hot-selling and scarce AT91SAM9260B-CU 32-Bit 180MHz Microprocessor IC 217-LFBGA

Product Descriptions

The AT91SAM9260 is based on the integration of an ARM926EJ-S processor with fast ROM and RAM memories and a wide range of peripherals.

The AT91SAM9260 embeds an Ethernet MAC, one USB Device Port, and a USB Host controller. It also integrates several standard peripherals, such as the USART, SPI, TWI, Timer Counters, Synchronous Serial Controller, ADC and MultiMedia Card Interface.

The AT91SAM9260 is architectured on a 6-layer matrix, allowing a maximum internal bandwidth of six 32-bit buses. It also features an External Bus Interface capable of interfacing with a wide range of memory devices.

Product Features

• 180 MHz ARM926EJ-S™ ARM® Thumb® Processor

– 8 KBytes Data Cache, 8 KBytes Instruction Cache, MMU

• Memories

– 32-bit External Bus Interface supporting 4-bank SDRAM/LPSDR, Static Memories,CompactFlash, SLC NAND Flash with ECC

– Two 4-kbyte internal SRAM, single-cycle access at system speed

– One 32-kbyte internal ROM, embedding bootstrap routine

• Peripherals

– ITU-R BT. 601/656 Image Sensor Interface

– USB Device and USB Host with dedicated On-Chip Transceiver

– 10/100 Mbps Ethernet MAC Controller

– One High Speed Memory Card Host

– Two Master/Slave Serial Peripheral Interfaces

– Two Three-channel 32-bit Timer/Counters

– One Synchronous Serial Controller

– One Two-wire Interface

– Four USARTs

– Two UARTs

– 4-channel 10-bit ADC

• System

– 90 MHz six 32-bit layer AHB Bus Matrix

– 22 Peripheral DMA Channels

– Boot from NAND Flash, SDCard, DataFlash® or serial DataFlash

– Reset Controller with On-Chip Power-on Reset

– Selectable 32,768 Hz Low-Power and 3-20 MHz Main Oscillator

– Internal Low-Power 32 kHz RC Oscillator

– One PLL for the system and one PLL optimized for USB

– Two Programmable External Clock Signals

– Advanced Interrupt Controller and Debug Unit

– Periodic Interval Timer, Watchdog Timer and Real Time Timer

• I/O

– Three 32-bit Parallel Input/Output Controllers

– 96 Programmable I/O Lines Multiplexed with up to Two Peripheral I/Os

• Package

– 217-ball BGA, 0.8 mm pitch

– 208-pin QFP, 0.5 mm pitch

Product Specification

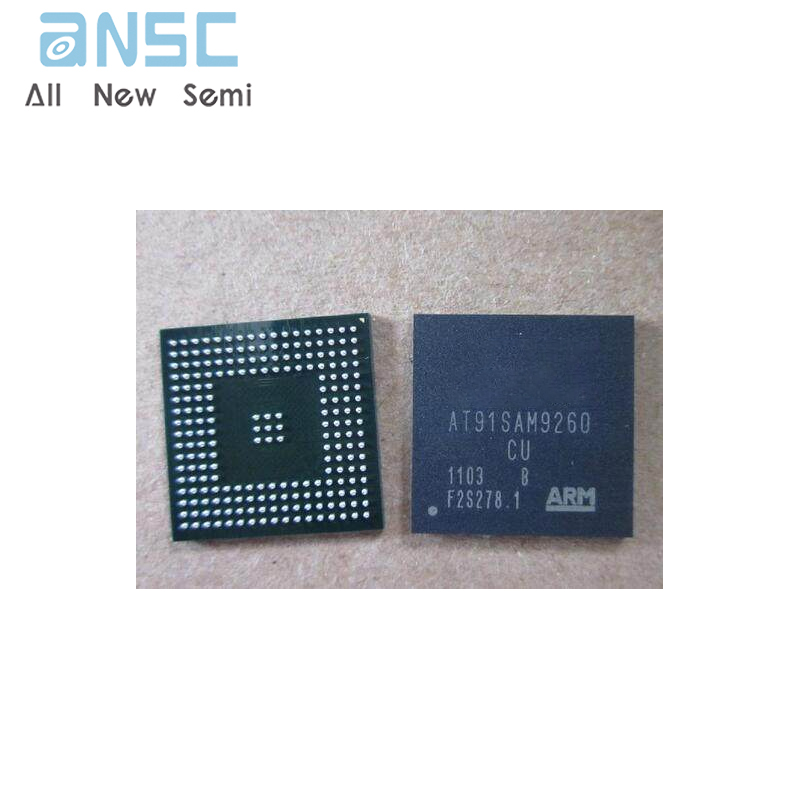

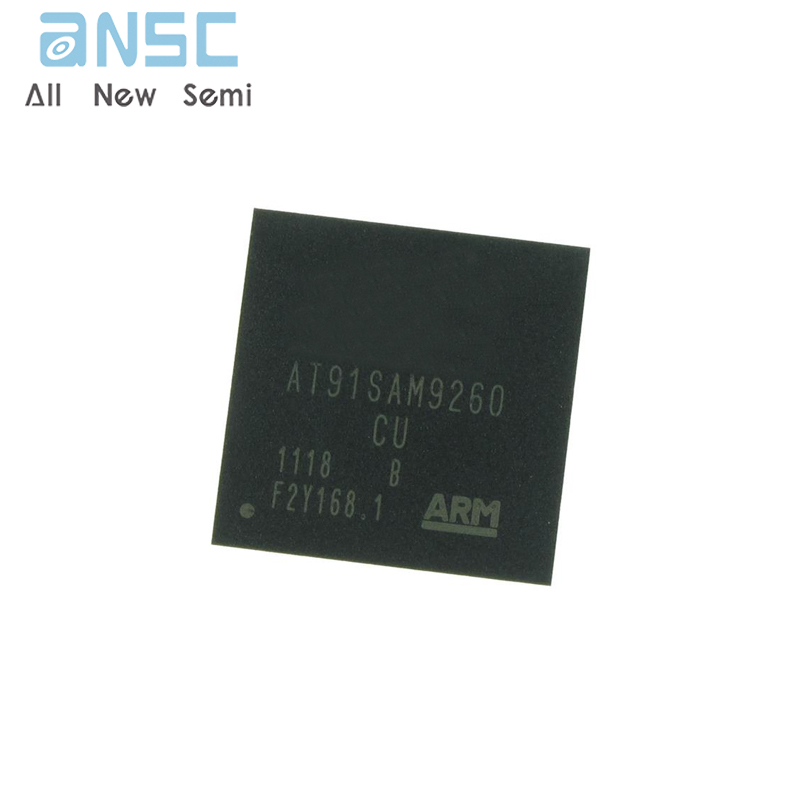

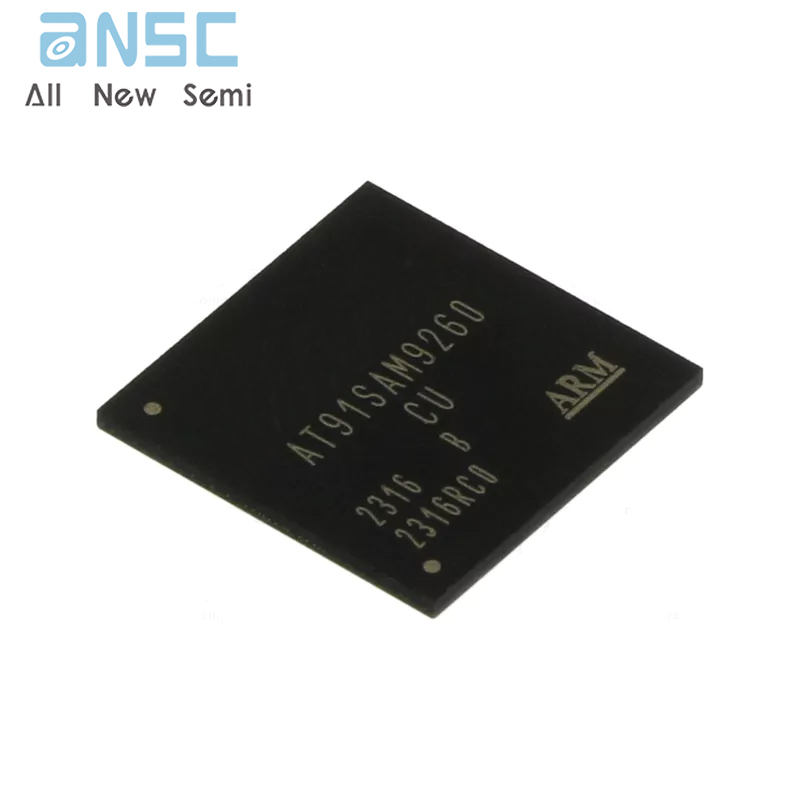

Product Photos

For more product information, please download the PDF
