Hot-selling and scarce R65C02P2 MICROPROCESSORS(CPU) IC DIP40 spot stock

Product Descriptions

The 8-bit R65C00 microprocessor family of devices are produced using CMOS silicon gate technology which provides advanced system architecture for performance speed and system costeffectiveness enhancements over their NMOS counterparts, the R6500 family of microprocessor devices.

Three CPU devices are available. All are software-compatible and provide 64K bytes of memory addressing, two interrupt inputs, and on-chip clock oscillators and/or drivers. All are bus-compatible with the NMOS R6500 family devices.

Product Features

CMOS silicon gate technology

Low Power (4 mA/MHz)

Software compatible with R6502

Single 5V 5% power supply requirements

Eight-bit parallel processing

Decimal and binary arithmetic

True indexing capability

Programmable stack pointer

Interrupt capability

Non-maskable interrupt

Eight-bit bidirectional data bus

Memory address range of up to 64K bytes

"Ready" input

Direct memory access (DMA) capability

Memory lock output

1 MHz, 2 MHz, 3 MHz, and 4 MHz versions

Choice of external or on-chip clocks

On-chip clock options

-External single clock input

-Direct crystal input (- 4)

Commercial and industrial temperature versions

Pipeline architecture

Slave processor version (R65C112)

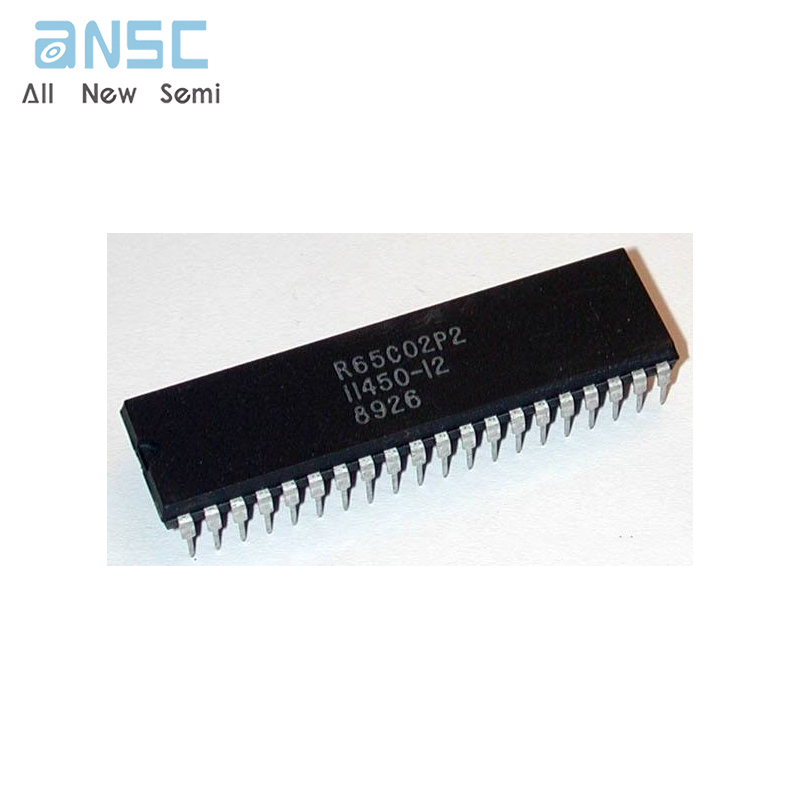

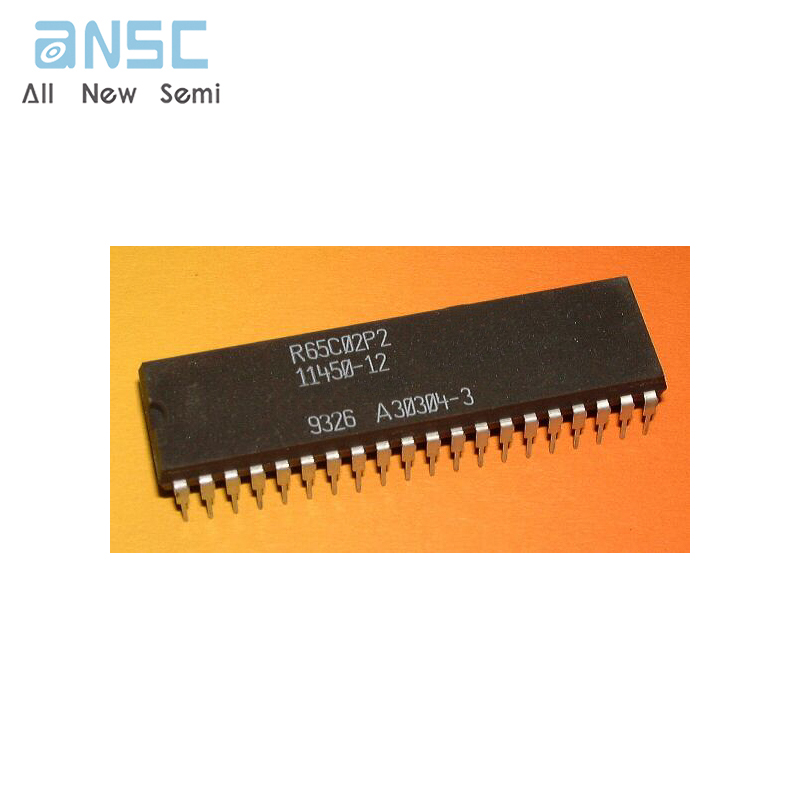

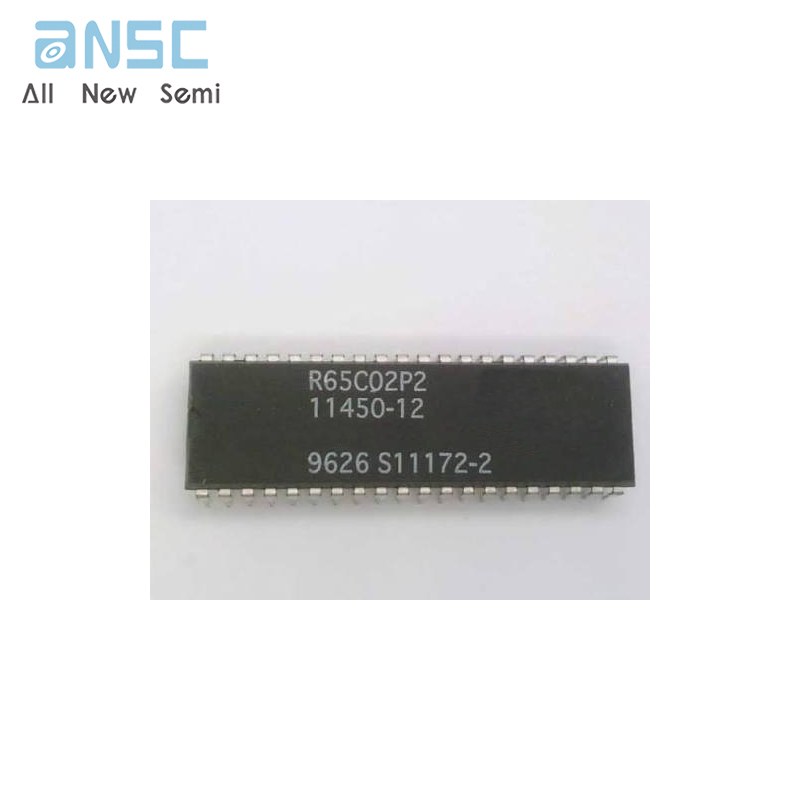

Product Photos

For more product information, please download the PDF
