Hot-selling and scarce GAL20V8B-7LJ High Performance E2CMOS PLD Generic Array Logic IC PLCC28 spot stock

Product Features

• HIGH PERFORMANCE E2CMOS® TECHNOLOGY

— 5 ns Maximum Propagation Delay

— Fmax = 166 MHz

— 4 ns Maximum from Clock Input to Data Output

— UltraMOS® Advanced CMOS Technology

• 50% to 75% REDUCTION IN POWER FROM BIPOLAR

— 75mA Typ Icc on Low Power Device

— 45mA Typ Icc on Quarter Power Device

• ACTIVE PULL-UPS ON ALL PINS

• E2CELL TECHNOLOGY

— Reconfigurable Logic

— Reprogrammable Cells

— 100% Tested/100% Yields

— High Speed Electrical Erasure (<100ms)

— 20 Year Data Retention

• EIGHT OUTPUT LOGIC MACROCELLS

— Maximum Flexibility for Complex Logic Designs

— Programmable Output Polarity

— Also Emulates 24-pin PAL® Devices with Full Function/ Fuse Map/Parametric Compatibility

• PRELOAD AND POWER-ON RESET OF ALL REGISTERS

— 100% Functional Testability

• APPLICATIONS INCLUDE:

— DMA Control

— State Machine Control

— High Speed Graphics Processing

— Standard Logic Speed Upgrade

• ELECTRONIC SIGNATURE FOR IDENTIFICATION

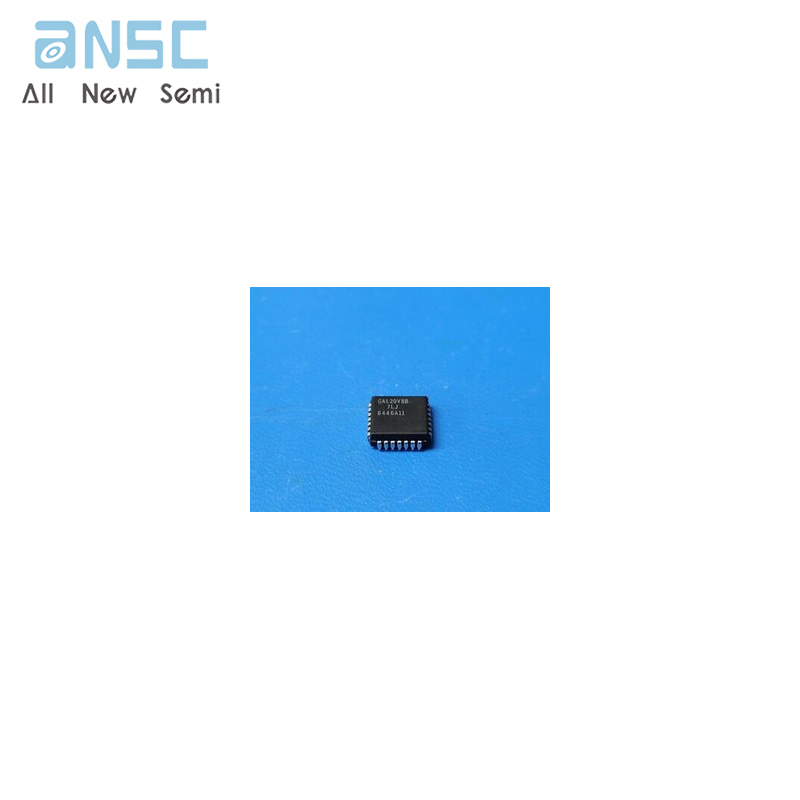

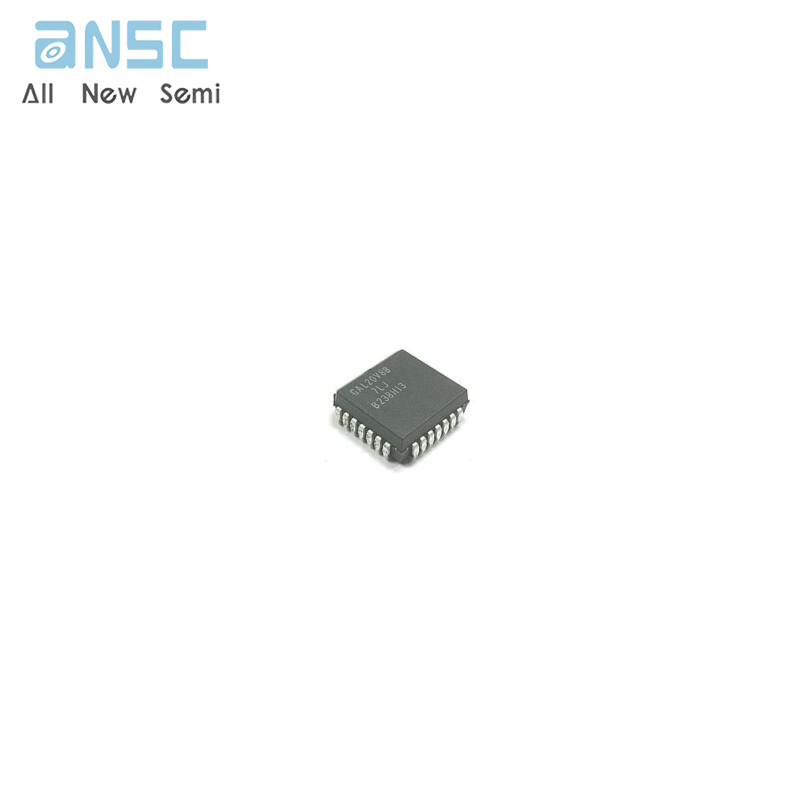

Product Photos

For more product information, please download the PDF
