Hot-selling and scarce HD63B09EP CMOS MPU(MICRO PROCESSING UNIT) DIP40 spot stock

Product Descriptions

The HD6309 is the highest 8-bit microprocessor of HMCS6800 family, which is compatible with the conventional HD6809.

The HD6309 has hardware and software features which make it an ideal processor for higher level language execution or standard controller applications.

The HD6309 is complete CMOS device and its power dissipation is extremely low. Moreover, the SYNC and CWAl instruction makes low power application possible.

Product Features

Hardware

-Interfaces with all HMCS6800 peripherals

-DMA transfer with no auto-refresh cycle

Software:object code compatible with the HD6809

Low power consumption mode (Sleep mode)

-SYNC state of SYNC Instruction

- WAIT state of CWAl Instruction

On chip oscillator

Wide operation range: f = 0.5 to 3 MHz (Vcc5 V+10%)

​

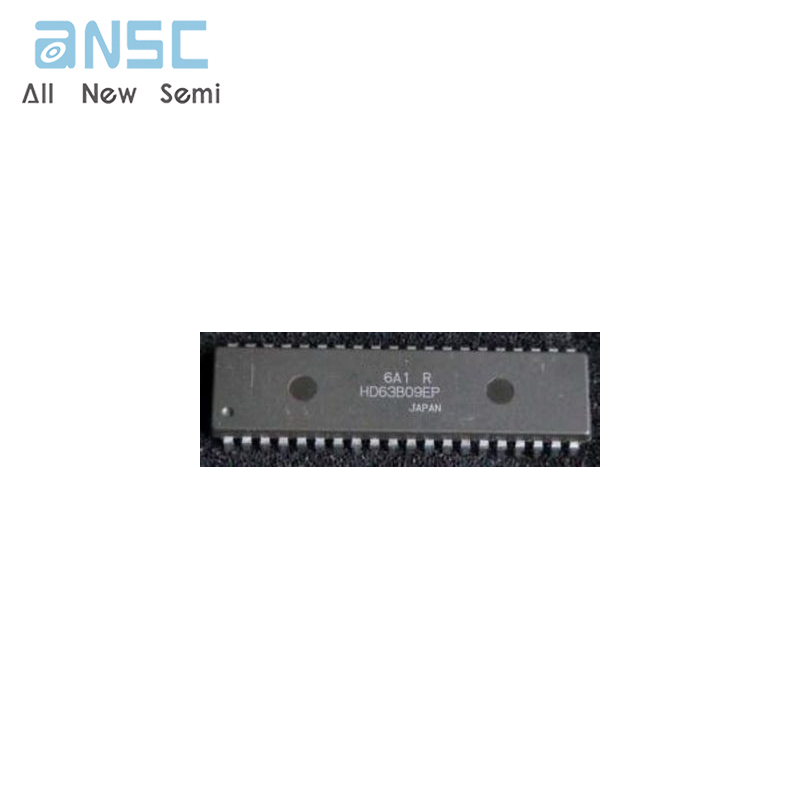

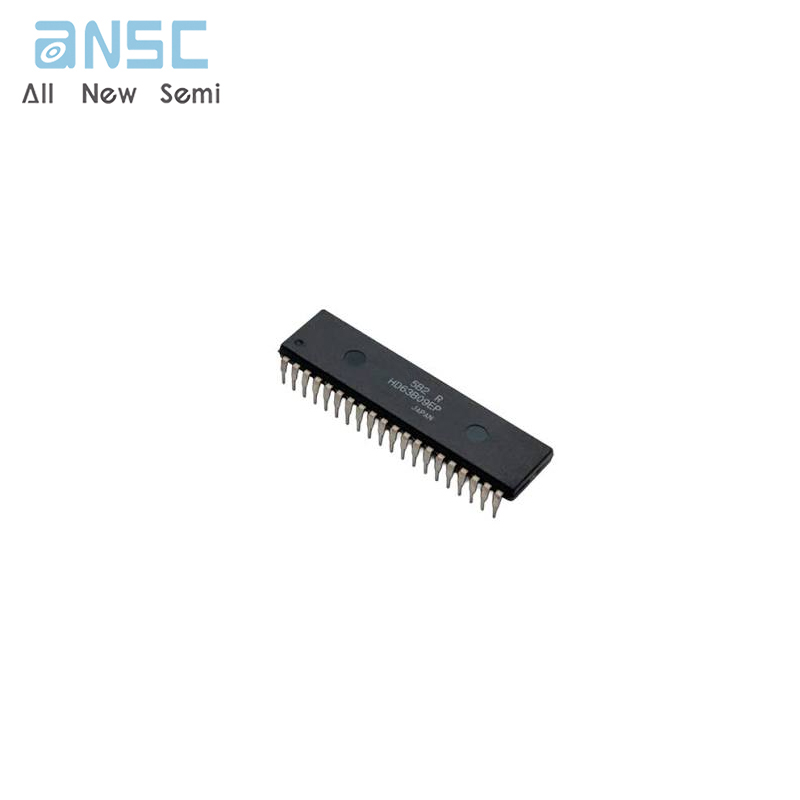

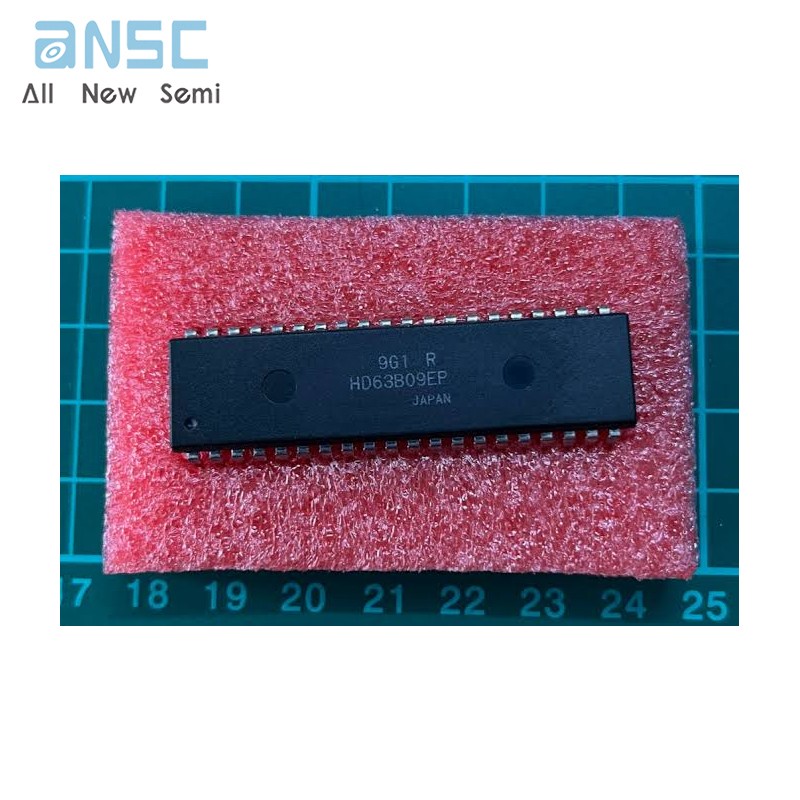

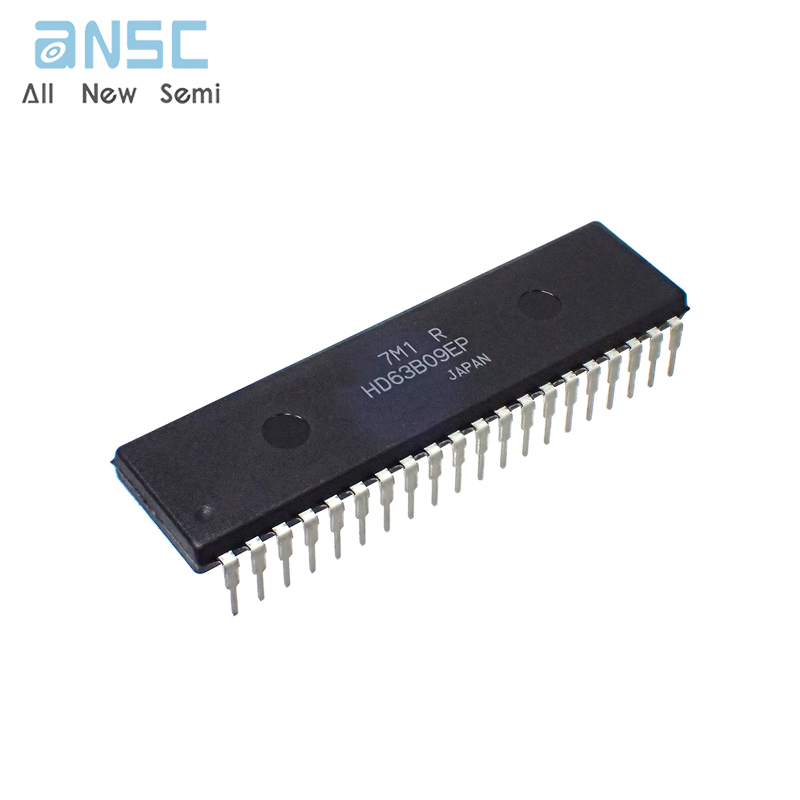

Product Photos

For more product information, please download the PDF
