Hot-selling and scarce CD4012BCN CMOS NAND GATES DIP14 spot stock

Product Descriptions

The CD4011B, CD4012B, and CD4023B types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PWR suffix). The CD4011B and CD4023B types also are supplied in 14-lead thin shrink small-outline packages (PW suffix).

Product Features

Propagation delay time = 60 ns (typ.) at CL = 50 pF, VDD = 10 V

Buffered inputs and outputs

Standardized symmetrical output characteristics

Maximum input current of 1 uA at 18 V

over full package temperature range;

100 nA at 18 V and 25°C

100% tested for quiescent current at 20 V

5-V, 10-V, and 15-V parametric ratings

Noise margin (over full package temperature

range:

1Vat VDD=5V

2 Vat VDD=10V

2.5 Vat VDD=15V

Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of "B" Series CMOS Devices"

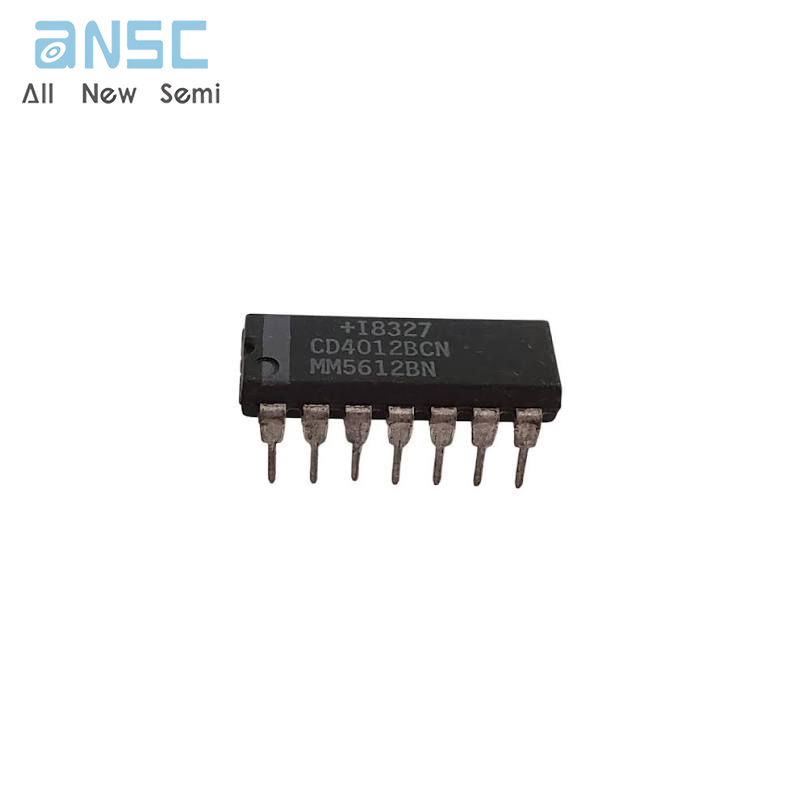

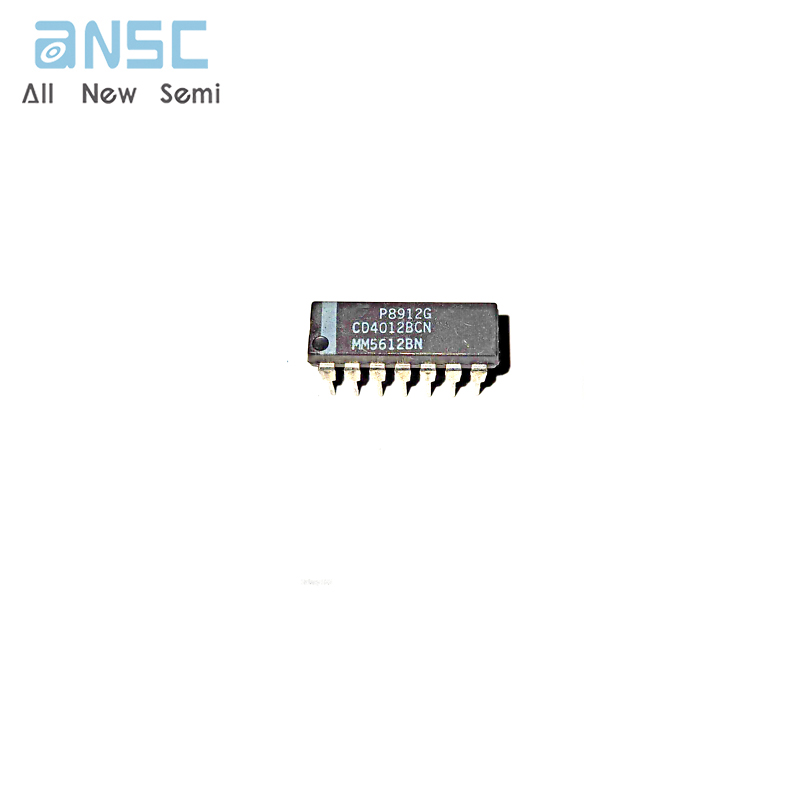

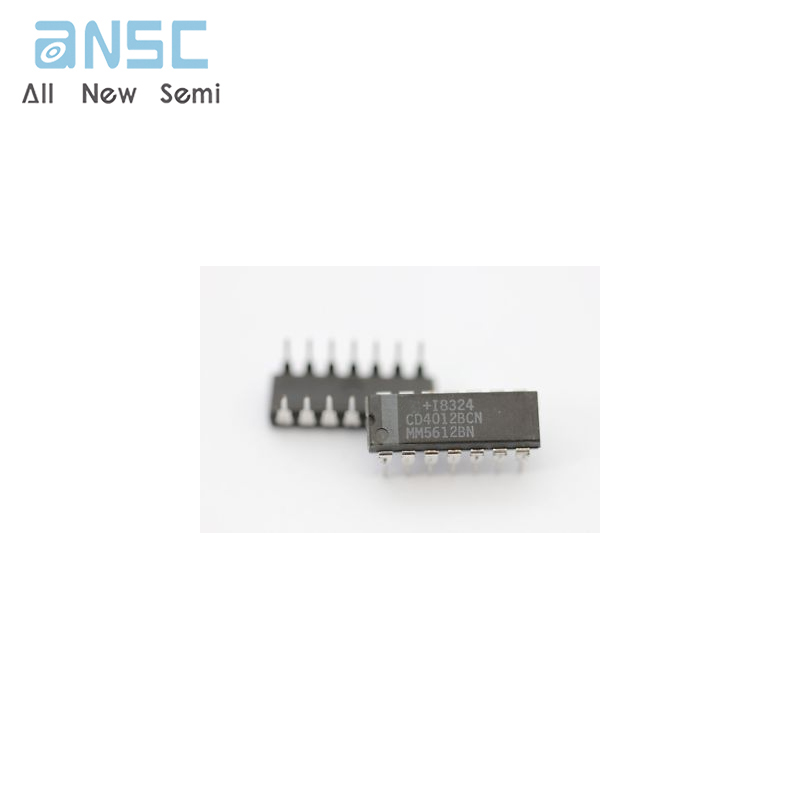

Product Photos

For more product information, please download the PDF
