High Demand, Limited Stock KU80C188EC13 16-BIT HIGH-INTEGRATION EMBEDDED PROCESSORS QFP spot stock

Product Descriptions

The 80C186EC is a member of the 186 Integrated Processor Family. The 186 Integrated Processor Family incorporates several different VLSI devices all of which share a common CPU architecture: the 8086/8088. The 80C186EC uses the latest high density CHMOS technology to integrate several of the most common system peripherals with an enhanced 8086 CPU core to create a powerful system on a single monolithic silicon die.

Product Features

Y Integrated Feature Set:

Ð Low-Power, Static, Enhanced 8086 CPU Core

Ð Two Independent DMA Supported UARTs, each with an Integral Baud Rate Generator

Ð Four Independent DMA Channels

Ð 22 Multiplexed I/O Port Pins

Ð Two 8259A Compatible Programmable Interrupt Controllers

Ð Three Programmable 16-Bit Timer/ Counters

Ð 32-Bit Watchdog Timer

Ð Ten Programmable Chip Selects with Integral Wait-State Generator

Ð Memory Refresh Control Unit

Ð Power Management Unit

Ð On-Chip Oscillator

Ð System Level Testing Support (ONCE Mode)

Y Direct Addressing Capability to 1 Mbyte Memory and 64 Kbyte I/O

Y Low-Power Operating Modes:

Ð Idle Mode Freezes CPU Clocks but Keeps Peripherals Active

Ð Powerdown Mode Freezes All Internal Clocks

Ð Powersave Mode Divides All Clocks by Programmable Prescalar

Y Available in Extended Temperature Range (b40§ C to a85§ C)

Y Supports 80C187 Numerics Processor Extension (80C186EC only)

Y Package Types:

Ð 100-Pin EIAJ Quad Flat Pack (QFP)

Ð 100-Pin Plastic Quad Flat Pack (PQFP)

Ð 100-Pin Shrink Quad Flat Pack (SQFP)

Y Speed Versions Available (5V):

Ð 25 MHz (80C186EC25/80C188EC25)

Ð 20 MHz (80C186EC20/80C188EC20)

Ð 13 MHz (80C186EC13/80C188EC13)

Y Speed Version Available (3V):

Ð 16 MHz (80L186EC16/80L188EC16)

Ð 13 MHz (80L186EC13/80L188EC13)

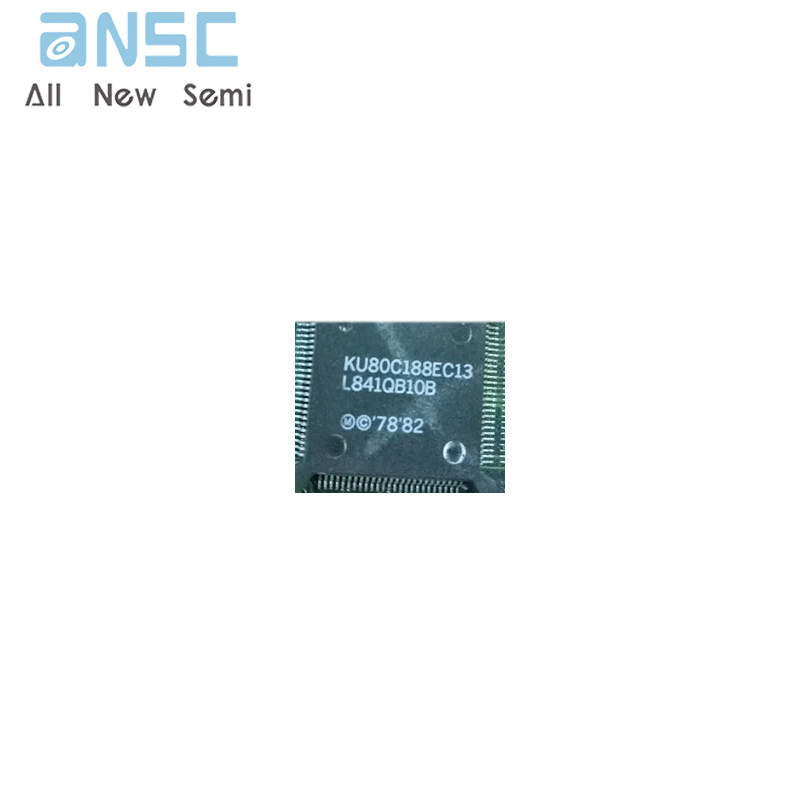

Product Photos

​

For more product information, please download the PDF
