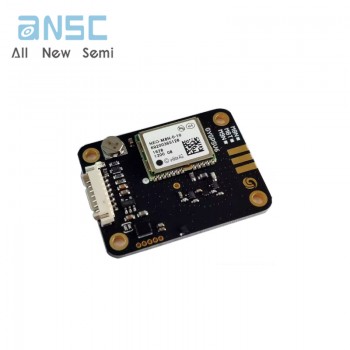

Hot selling GY-GPSV6 original NEO-M8N M9N M8T GPS GLONASS BeiDou high-precision positioning module quality assurance

Product Descriptions

Power supply: 3-5 volts

Current: 50ma

TTL serial communication output

Equipped with an electronic compass, the compass is equivalent to HMC5883 and can be directly connected to px_4, A_1, etc

Equipped with high-quality active antennas for stronger satellite reception

The module can be externally connected to a SAM antenna, using a 1.6mm flat base that can be side mounted

With PPS second pulse output, convenient for testing

The wiring terminals have a spacing of 1.25mm and a solder pad with a spacing of 2.54mm on the back, which can also be welded to ordinary pins

Provide computer testing software, do not provide internal circuit diagrams

Module size: 39mm * 29mm * 9.5mm (length, width, thickness)

Installation aperture 2mm, hole spacing 22.5mm, 32.5mm

The module usually needs to be located in an open outdoor area to achieve better satellite reception, and it takes some time for the first power on and cold start
