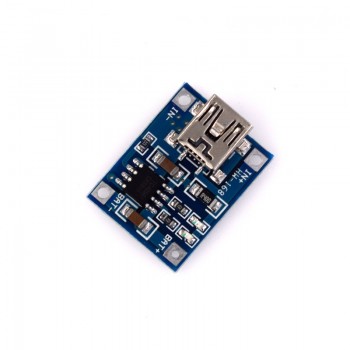

TP4056 1A lithium battery dedicated charging board charging module MICRO interface MINI interface USB

Product Introduction

Module Name: Lithium Battery Charging Board

Charging method: Linear charging

Charging current: 1A (adjustable)

Charging accuracy: 1.5%

Input voltage: 4.5V-5.5V

Full charge voltage: 4.2V

Input interface: MICRO interface, Mac USB

Charging indicator: Red light charging, red light constantly on, full charging (red light charging, blue light fully charged), 2 modes randomly sent

Working temperature:- 10 ° C to+85 ° C

Weight: 1.8g

Can it be reversed: cannot be reversed

Peripheral dimensions 25 * 19 * 10mm

Product Features

• This module uses a very mature charging chip TP4056, with simple peripheral circuits, good protection performance, and high charging accuracy,

• This module is fully automated by mechanical processing, with all surface mount parts manufactured. Each piece is tested before shipment, ensuring high reliability.

• The current of this module can be adjusted by itself. By changing the fixed resistor in the circuit board, the output can be adjusted to 100mA-1000mA, which is very convenient.

Product Current Regulation
