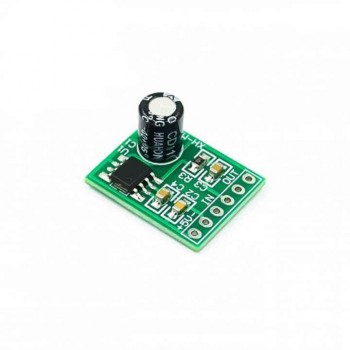

Singing machine amplifier board XPT8871 mono amplifier board Lithium battery amplifier board XH-M125
Manufacturer
Manufacturer Product Number
XH-M125
Description
Singing machine amplifier board XPT8871 mono amplifier board Lithium battery amplifier board XH-M125
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| XPT8871 Chip Solution | Mini Lithium Battery Amplifier Board Suitable for applications such as karaoke machines, small speakers, and portable amplifiers |
| Product Features Utilizes the XPT8871 mono Class-D audio amplifier chip High efficiency, low power consumption, and output power up to 6W Compact size, suitable for embedding in portable devices Can directly drive small 8Ω/5W speakers Supports lithium battery power, operating as low as 3.7V |
Interface Description
VCC — Positive power supply
GND — Power ground
IN+ — Positive audio signal input
IN- — Audio signal input ground
SPK+/SPK- — Speaker output connectors
Shipping Item
XH-M125 amplifier module × 1
Product Description
| Technical Parameters | |
| Operating Voltage | DC 3.7V to 5V |
| Output Power | Mono 5W (typical) |
| Chip Model | XPT8871 |
| Compatible Speakers | 8Ω/5W recommended |
| Module Dimensions | 20mm × 16mm × 8mm |
Product Photos
