Product Description
| Part# | 451-00002 |
| category | RF/IF, RF/IF and RFID |
| RF Transceiver Modules and Modems | |
| manufacturer | / |
| series | BL654 |
| Package | Tape and Reel (TR) |
| Shear Band (CT) | |
| Product Status | in stock |
| RF Series/Standard | 802.15.4, Bluetooth |
| protocol | Bluetooth v5.0, Thread |
| modulation | - |
| frequency | 2.4GHz |
| data rate | 2Mbps |
| power - output | 8dBm |
| Sensitivity | -95dBm |
| serial interface | I²C, I²S, PWM, SPI, UART, USB |
| Antenna type | Antenna not included, I-PEX |
| IC/Parts used | nRF52840 |
| storage | - |
| Voltage - Powered | 1.7V ~ 3.6V |
| Current - receive | 5.4mA |
| current - transmission | 14.1mA |
| installation type | Surface Mount Type |
| Operating temperature | -40°C ~ 85°C |
| Package/Enclosure | module |

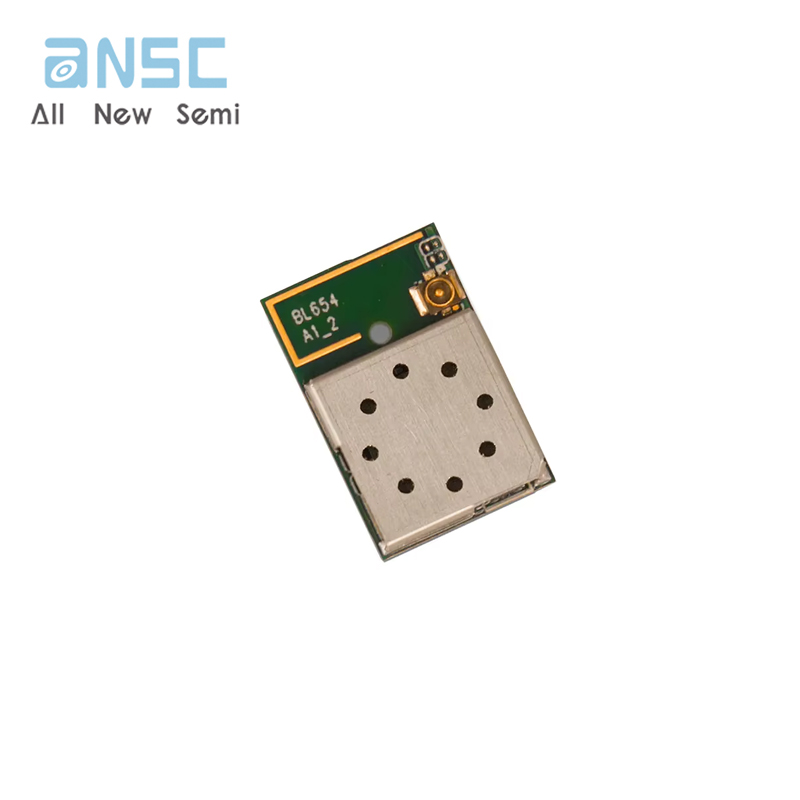

Actual image of the product

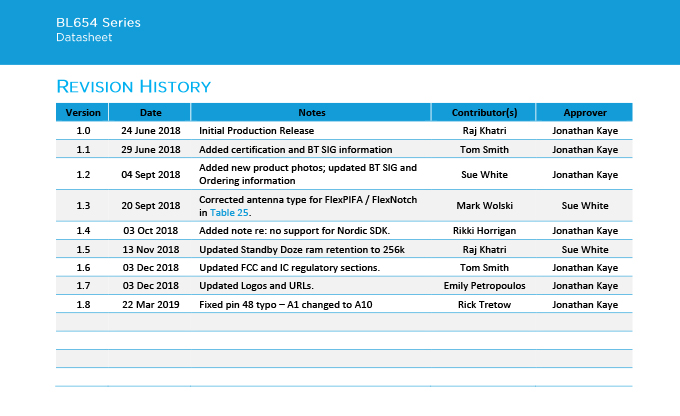

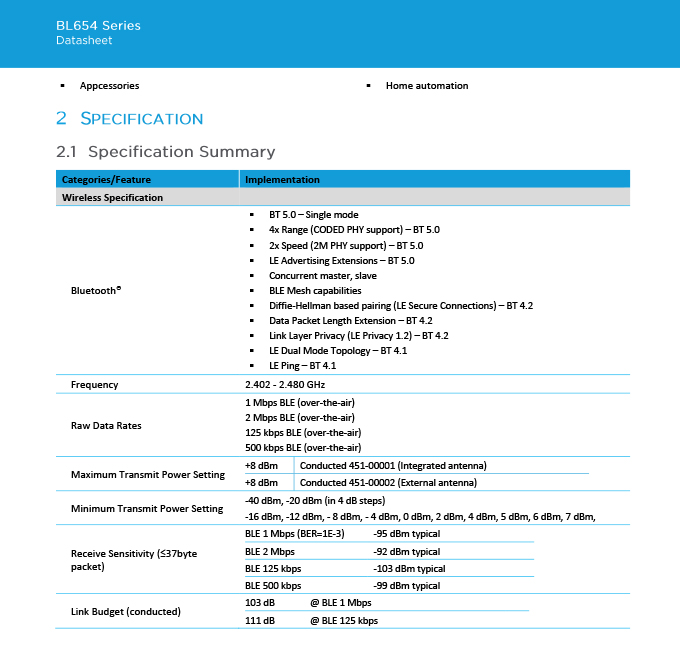

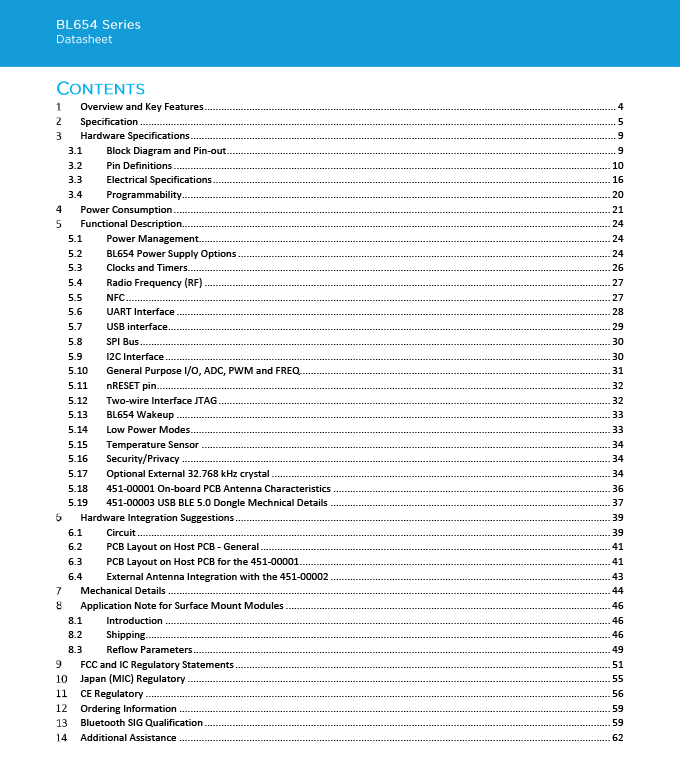

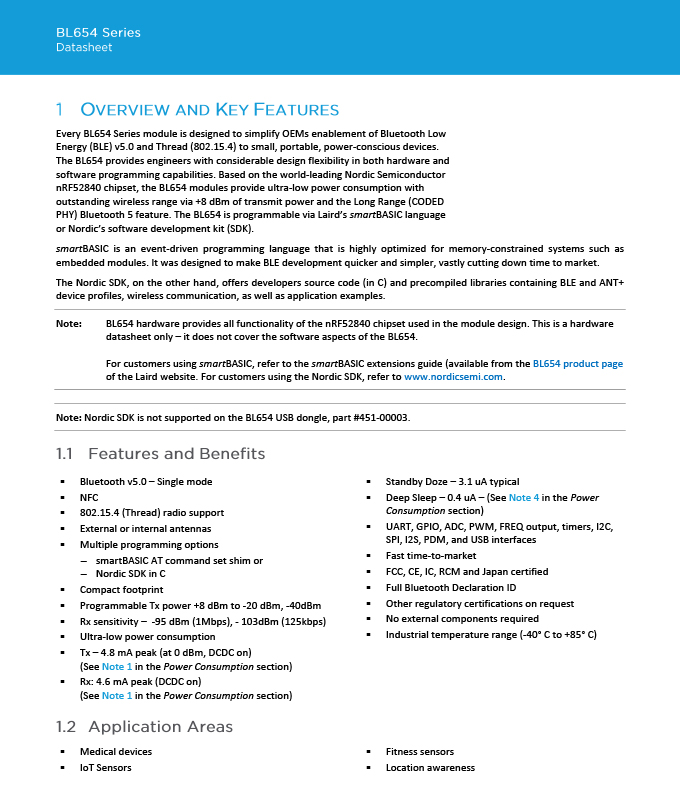

Product datasheet
For more information, please download
