Hot sale original MG75Q2YS40 TRANSISTOR 75A 1200V N-CHANNEL IGBT 7PIN Insulated Gate BIP Transistor
Manufacturer Product Number
MG75Q2YS40
Description
MG75Q2YS40 TRANSISTOR 75A 1200V N-CHANNEL IGBT 7PIN Insulated Gate BIP Transistor
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)

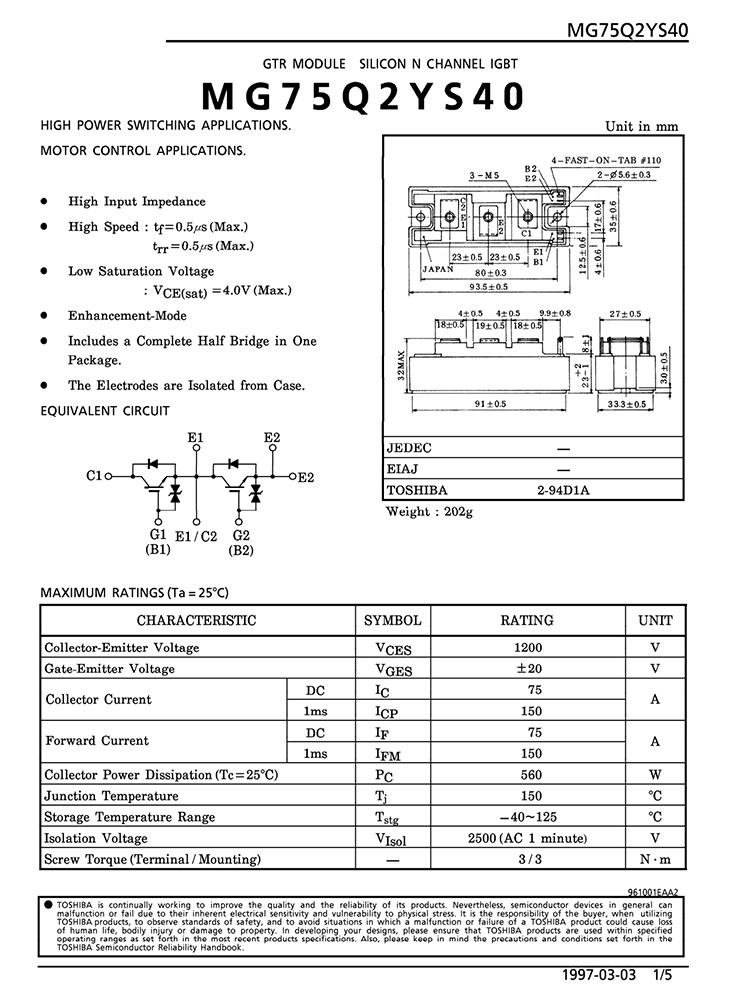

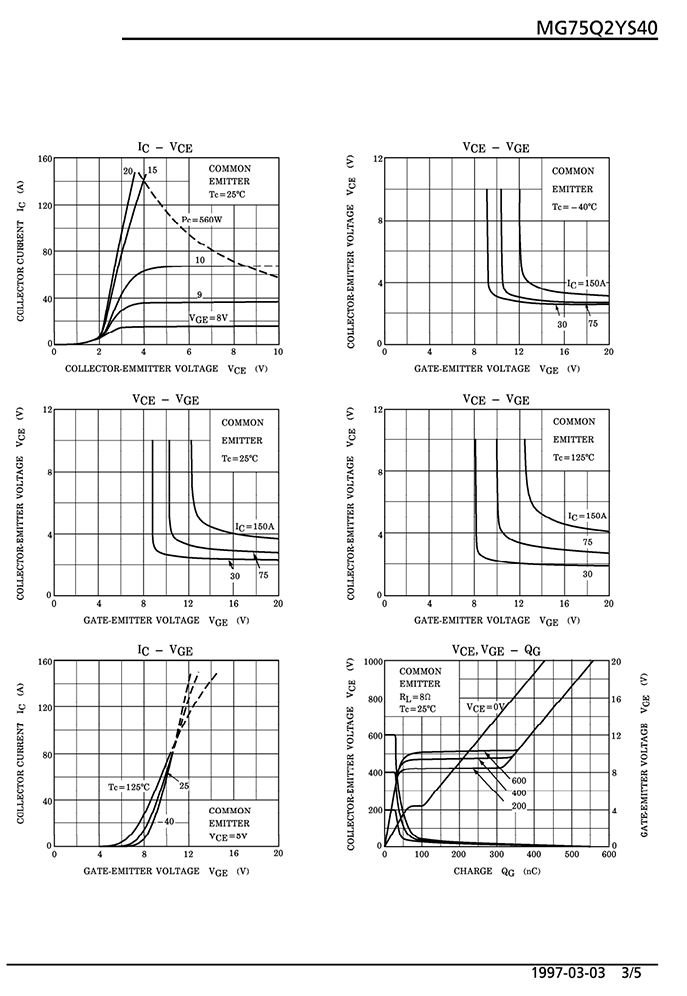

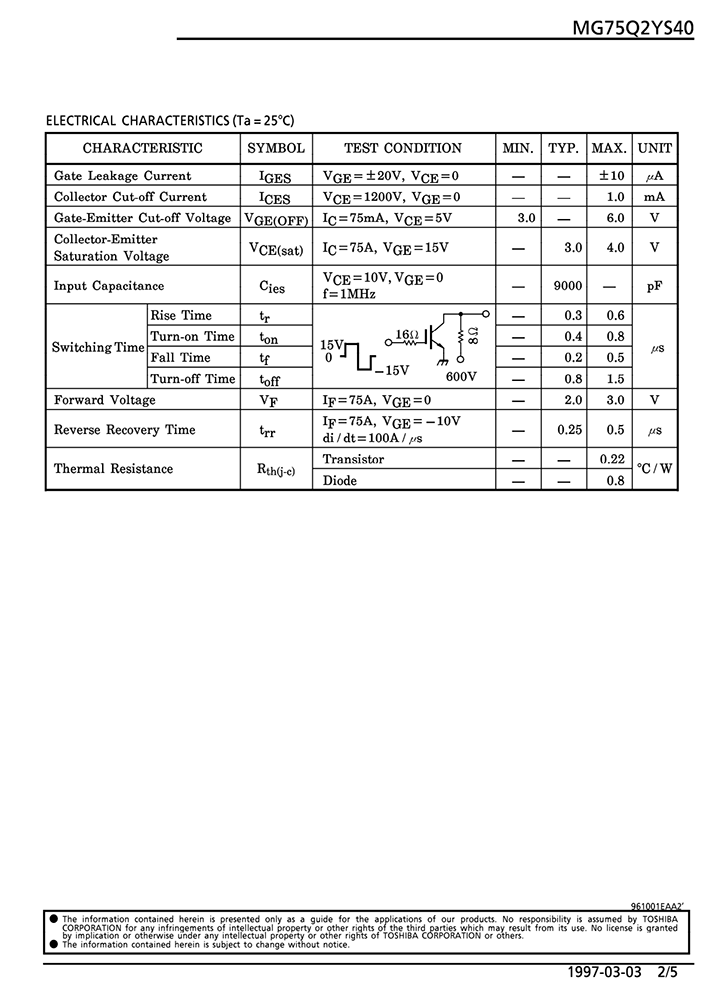

Product Details
Power Switching Applications
Motor Control Applications
High input impedance
High speed : tf = 0.5µs (Max)
trr = 0.5µs (Max)
Low saturation voltage++++++++++++ : VCE(sat) = 4.0V (Max)
Enhancement-mode
Includes a complete half bridge in one package.
The electrodes are isolated from case.
Product Description
| Type# | Description |
| ANSC PART# | ANSC-MG75Q2YS40 |
| Manufacturer | Original |
| Package Description | FLANGE MOUNT, R-XUFM-X7 |
| Pin Count | 7 |
| Additional Feature | HIGH SPEED |
| Case Connection | ISOLATED |
| Collector Current-Max (IC) | 75 A |
| Collector-Emitter Voltage-Max | 1200 V |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE |
| Fall Time-Max (tf) | 500 ns |
| Gate-Emitter Thr Voltage-Max | 6 V |
| Gate-Emitter Voltage-Max | 20 V |
| Number of Elements | 2 |
| Number of Terminals | 7 |
| Operating Temperature-Max | 150 °C |
| Package Body Material | UNSPECIFIED |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation Ambient-Max | 560 W |
| Power Dissipation-Max (Abs) | 560 W |
| Qualification Status | Not Qualified |
| Rise Time-Max (tr) | 600 ns |
| Surface Mount | NO |
| Terminal Form | UNSPECIFIED |
| Terminal Position | UPPER |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | MOTOR CONTROL |
| Transistor Element Material | SILICON |
| Turn-off Time-Nom (toff) | 800 ns |
| Turn-on Time-Nom (ton) | 400 ns |
| VCEsat-Max | 4 V |

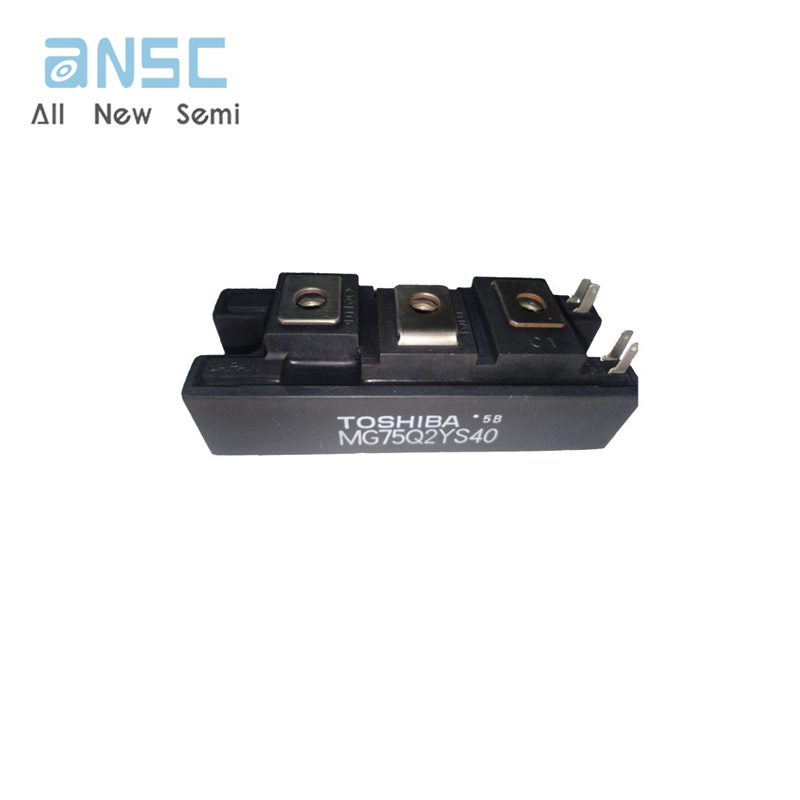

Actual image of the product
