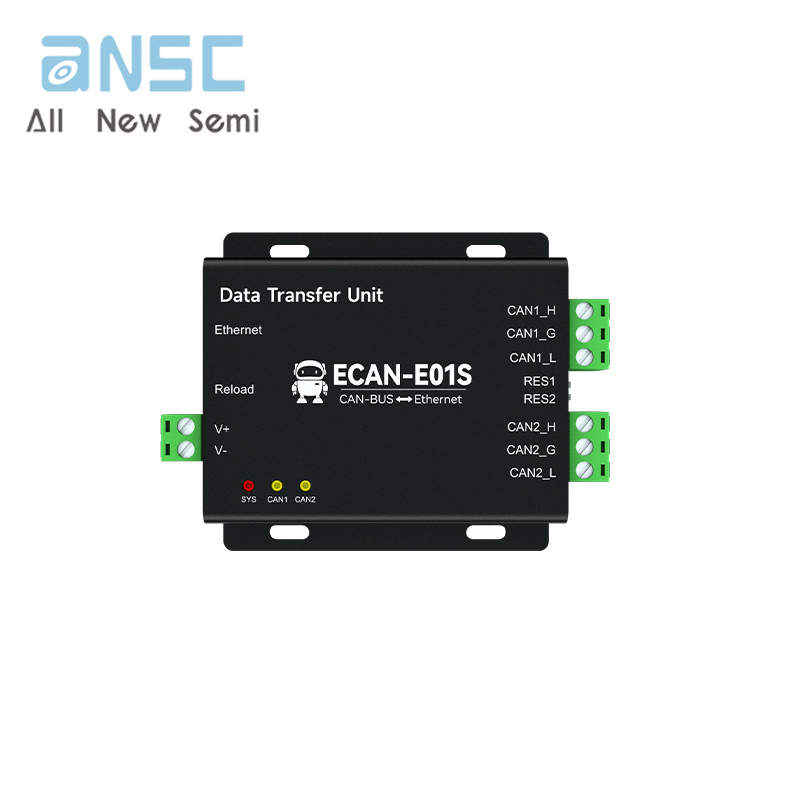

ECAN-E01S CAN2.0 To Modbus TCP Ethernet Data Converter Transparent Transmission CANBUS To RJ45 Cloud Transmission

Product Descriptions

ECAN-E01S is a high-performance industrial-grade Ethernet and CAN-bus data conversion device developed by Ebyte. It integrates 2 CAN-bus interfaces, 1 Ether Net interface, supports TCP/UDp protocol, and can easily Complete the intercommunication between CAN-bus network and Ethernet network.

ECAN-E01S has a built-in 120 ohm resistor, which can be enabled by dialing a code, it supports working inthe temperature range of -40°C to 85°C. It has one 10M Ethernet interface, the maximum baud rate of2 CAN ports communication is lMbps, with TCp Server, TCp Client, UDP and other working modes. and software configuration parameters can be configured through the host computer.

Product Features

Integrate 2 CAN-bus interfaces and use plug-in terminal wiring mode,

Support CAN2.0A and CAN2.0B frame format, in line with ISO/DIS 11898 specification,

The baud rate of CAN-bus communication can be freely programmable between 5Kbps~lMbps,

Dual-channel CAN transceiver, support dual-channel server, maximum support 14-channel connection

Maximum sending data flow: 8000 ftames/second, maximum receiving data flow: 14000 frames/second

The time stamp accuracy of the received message at the CAN end can reach lus.

Support registration package, heartbeat package, short connection function

Support DHCP, DNS;

Support disconnection restart/timeout restart.

Support clear cache function.

Support host computer configuration,

Contains 120 ohm resistance.

Built-in watchdog,

Ethernet port upgrade function;

Operating temperature range:-40℃~+85℃
