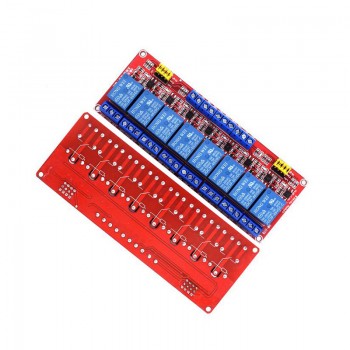

8-way 5V with optocoupler isolation relay module supports high and low level triggering

Product Parameter

1. Maximum load of relay: AC 220V/10A, DC 30V/10A

2. Optocoupler isolation, strong driving capability, stable performance, trigger current of 5MA

3. The working voltage of the module is available in 5V, 12V, and 24V options

Module default configuration

The working voltage of the module is available in 5V, 12V, and 24V options, with 8 relay outputs and optical isolation. The 8 relays can be controlled separately and can be set to trigger high and low levels. The module has strong anti-interference ability and good stability.

Module features

1. The module adopts relays, and the maximum load of the normally open interface is AC 220V/10A, DC 30V/10A

2. Adopting patch optocoupler isolation, strong driving capability, stable performance, trigger current of 5mA

3. The working voltage of the module is available in 5V, 12V, and 24V options

4. Each relay of the module can be triggered by setting a high or low level through jumper wires

5. Fault tolerant design, even if the control line breaks, the relay will not operate

6. Power indicator light (green), 8-way relay status indicator light (red)

7. Humanized interface design, all interfaces can be directly wired out through terminal blocks, which is very convenient

8. Module size: 139.8mmx52mmx18.5mm (length x width x height)

9. There are 4 fixed bolt holes with a diameter of 3mm

Product Applications

Distribution box, testing equipment, industrial control equipment
