Hot sale original MG15J6ES1 TRANSISTOR 15A 600V N-CHANNEL IGBT 15PIN Insulated Gate BIP Transistor
Manufacturer Product Number
MG15J6ES1
Description
MG15J6ES1 TRANSISTOR 15A 600V N-CHANNEL IGBT 15PIN Insulated Gate BIP Transistor
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
GTR module
Silicon N Channel IGBT
High Power Switching Applications
Motor Control Applications
Product Description
| Type# | Description |
| ANSC PART# | ANSC-MG15J6ES1 |
| Manufacturer | / |
| Package Description | FLANGE MOUNT, R-PUFM-D15 |
| Pin Count | 15 |
| Case Connection | ISOLATED |
| Collector Current-Max (IC) | 15 A |
| Collector-Emitter Voltage-Max | 600 V |
| Configuration | BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE |
| Number of Elements | 6 |
| Number of Terminals | 15 |
| Operating Temperature-Max | 150 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | N-CHANNEL |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Form | SOLDER LUG |
| Terminal Position | UPPER |
| Transistor Application | MOTOR CONTROL |
| Transistor Element Material | SILICON |
| Turn-off Time-Nom (toff) | 500 ns |
| Turn-on Time-Nom (ton) | 400 ns |

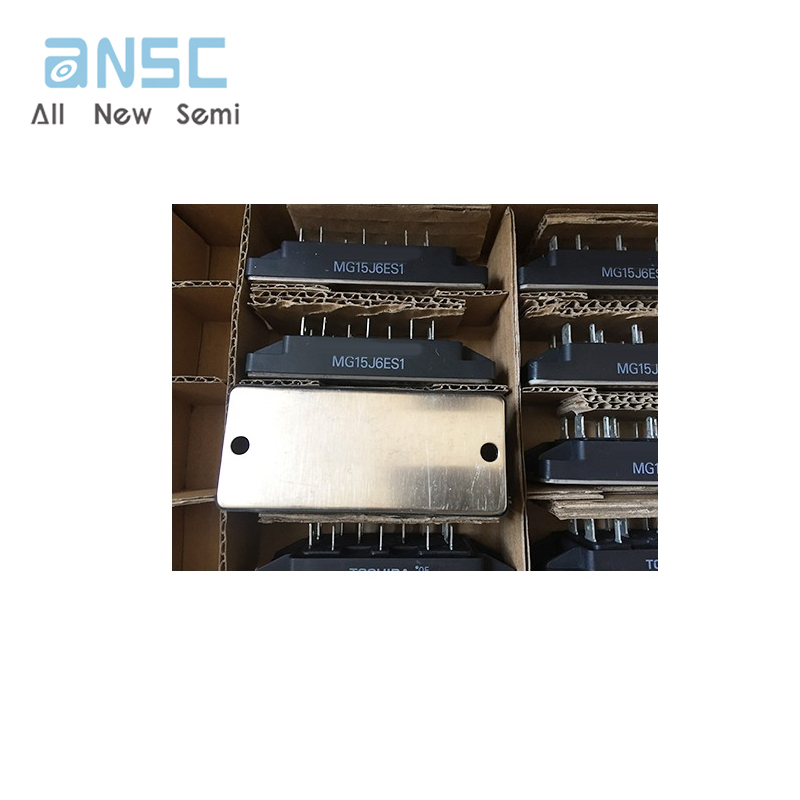

Actual image of the product

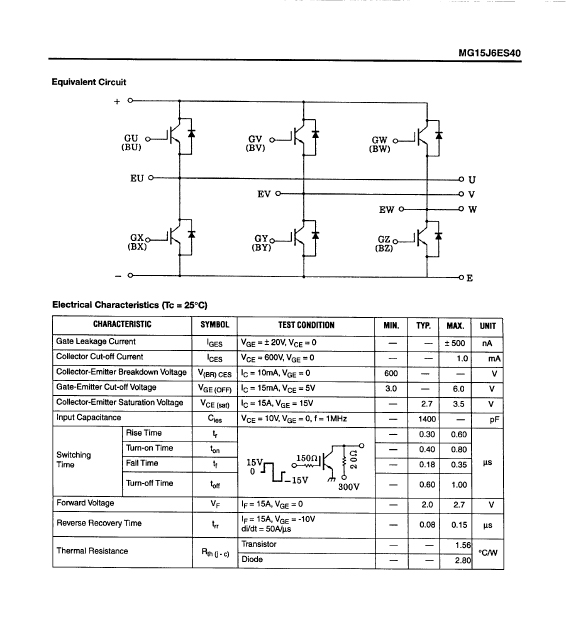

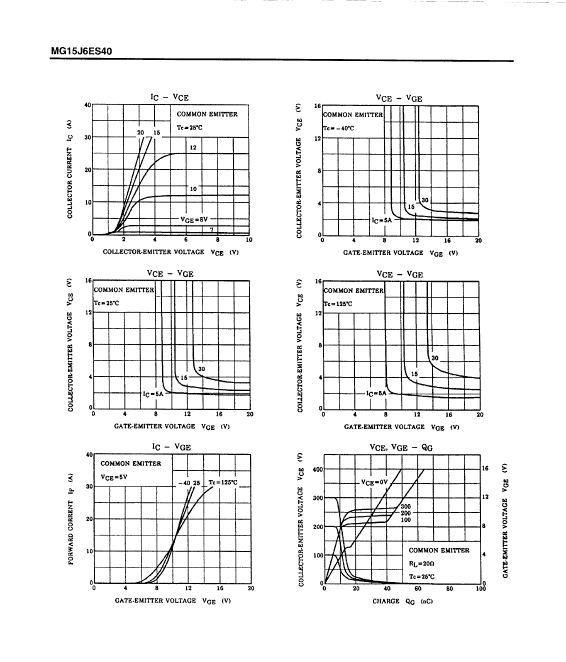

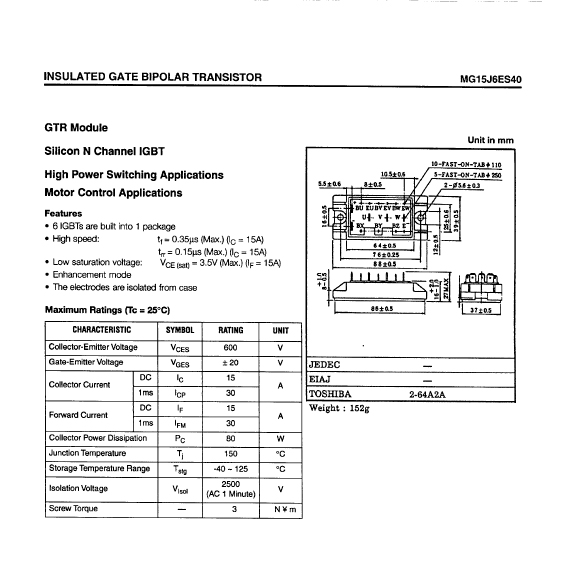

Product datasheet
For more information, please download
