Hot selling original stock sale E840-TTL (4G05-DGC) 4G/LTE wireless serial port module

Manufacturer

Original

Manufacturer Product Number

E840-TTL (4G05-DGC)

Description

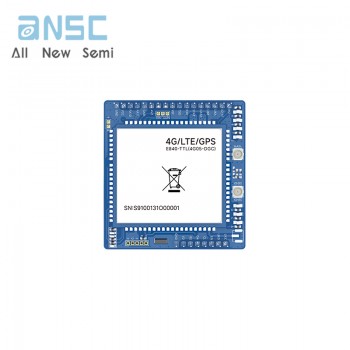

E840-TTL (4G05-DGC) is a 4G/LTE data transmission module product launched by Yibaite. It is developed to enable serial devices and network servers to transmit data to each other through the network.

Package Condition

Bulk

Datasheet

E840-TTL (4G05-DGC)

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Specifications

Attribute	Attribute value
ANSM-Part#	ANSM-E840-TTL(4G05-DGC)
Characteristic parameter	Describe
Supporting frequency bands	LTE-FDD：B1/B3/B5/B8
	LTE-TDD：B38/B39/B40/B41
	WCDMA：B1/B8
	TD-SCDMA：B34/B39
	CDMA：BC0
	GSM：900/1800MHz
LTE features	Maximum support for 3GPP R8 non CA Cat 4 FDD and TDD
	Supports RF bandwidth of 1.4MHz~20MHz
	Downstream support: MIMO
	LTE-FDD: Maximum downlink speed of 150Mbps, maximum uplink speed of 50Mbps
	LTE-TDD: Maximum downlink speed of 130Mbps, maximum uplink speed of 35Mbps
Characteristics of UMT	Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA, and WCDMA
	Supports QPSK, 16-QAM, and 64-QAM modulation
	DC-HSDPA: Maximum downlink speed of 42Mbps
	HSUPA: Maximum uplink speed of 5.76Mbps
	WCDMA: Maximum downlink speed of 384Kbps, maximum uplink speed of 384Kbps
TD-SCDMA Characteristics	Support CCSA Release 3 TD-SCDMA
TD-SCDMA Characteristics	Maximum downlink speed of 4.2Mbps, maximum uplink speed of 2.2Mbps
Characteristics of CDMA 2000	Supports 3GPP2, CDMA 2000, 1X Advanced, and 1xEV DO Rev. A
	EVDO: Maximum downlink speed of 3.1Mbps, maximum uplink speed of 1.8Mbps
	1X Advanced: Maximum downlink speed of 307.2Kbps, maximum uplink speed of 307.2Kbps
GSM characteristics	R99: CSD transmission rate: 9.6kbps, 14.4kbps
	GPRS: Supports GPRS multi slot level 33 (default is 33), encoding format: CS-1/CS-2/CS-3/CS-4
	Each frame has a maximum of 4 Rx time slots, with a maximum downlink rate of 107Kbps and a maximum uplink rate of 85.6Kbps
	EDGE: Supports EDGE multi slot level 33 (default is 33), supports GMSK and 8-PSK modulation and coding methods
	Downstream coding format: CS 1-4 and MCS 1-9, upstream coding format: CS 1-4 and MCS 1-9
	Maximum downlink speed 296Kbps, maximum uplink speed 236.8Kbps
Network protocol characteristics	Support TCP/UDP/MQTT protocol
Hardware Features	Describe
Antenna options	IPEX interface
Data interface	Serial port
Baud rate	Supports up to 921600bps, default 115200bps
Transmission power	Class 4 (33dBm±2dB) for GSM900
	Class 1 (30dBm±2dB) for DCS1800
	Class E2 (27dBm±3dB) for GSM900 8-PSK
	Class E2 (26dBm±3dB) for DCS1800 8-PSK
	Class 3 (24dBm+2/-1dB) for CDMA BC0
	Class 3 (24dBm+1/-3dB) for WCDMA bands
	Class 2 (24dBm+1/-3dB) for TD-SCDMA bands
	Class 3 (23dBm±2dB) for LTE-FDD bands
	Class 3 (23dBm±2dB) for LTE-TDD bands
Sensitivity	FDD B1: -101.6dBm (10M)
	FDD B3: -101.9dBm (10M)
	FDD B5: -102dBm (10M)
	FDD B8: -102.1dBm (10M)
	TDD B38: -101.3dBm (10M)
	TDD B39: -101.2dBm (10M)
	TDD B40: -101.4dBm (10M)
	TDD B41: -101.4dBm (10M)
	WCDMA B1: -112dBm
	WCDMA B8: -112dBm
	TD-SCDMA B34: -110dBm
	TD-SCDMA B39: -110dBm
	CDMA BC0: -108dBm
	GSM 900: -109dBm
	GSM 1800: -109dBm
Flow consumption (typical value)	11uA @ Shutdown
	1.8mA @LTE sleep (PF=128)
	1.5mA @ LTE sleep (PF=256)
	50mA @ Idle
Bandwidth	1.4/3/5/10/15/20MHz
Working temperature	-30 ℃ -+70 ℃ Extended temperature -40 ℃~+85 ℃
Working voltage	DC 5V~18V
Size	42×40×9.7mm
SIM card holder	Use MICRO self popping SIM card holder
