Hot selling E840-TTL-NB03 UART Smart Home System Data Transceiver Module Nb Iot Solutions Wireless Rf NB-IoT Module

Manufacturer

Original

Manufacturer Product Number

E840-TTL-NB03

Description

E840-TTL-NB03 is developed for serial port devices and network servers to transmit data through the network. It supports B8 frequency band.

Package Condition

Bulk

Datasheet

E840-TTL-NB03

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Specifications

Attribute	Attribute value
ANSM-Part#	ANSM-E840-TTL-NB03
Value	Description
Frequency	B8
Frequency	Module will search frequency automatically
NB-IoT connection characteristic	NB data downlink transmission：max 85.6kbps
	NB data uplink transmission：max 85.6kbps
	Coding format： CS-1、 CS-2、 CS-3 and CS-4
	Support for PAP (PasswordAuthentication Protocol) protocols commonly
	used for PPP connections
	Support usually used for CHAP (Interrogation HandshakeAuthentication
	Protocol) protocol
	Embedded protocol: TCP/UDP etc
	Support for unstructured supplementary data services (USSD)
Value	Description
Antenna	IPEX
Data interface	TTL@3.3V compatible with 5V
Baud rate	Max of 230400bps, 115200bps as default
TX power	23dBm±2dB
Power saving (typical)	In power saving mode, max current consumption：5μA
Power saving (typical)	In power saving mode, typical current consumption：3.5μA
Working temperature	-30℃- +70℃；extending to -40℃~+85℃
Working voltage	DC：5V~18V；powered by lithium battery：2.5V~3.6V
Size	42×40×9.7 mm
SIM card holder	MICRO SIM card holder

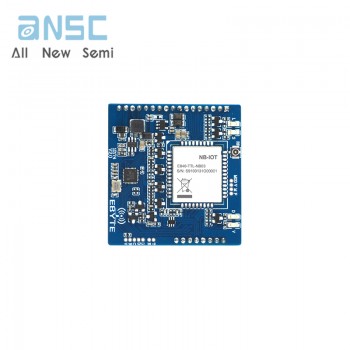

Actual product photos

E840-TTL-NB03
