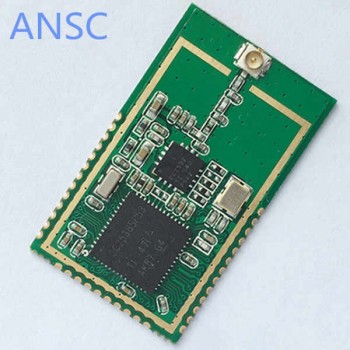

Complete module with cc2538 and CC2592 (power amplifier )ZigBee high power module,CC2538
Manufacturer
Manufacturer Product Number
CC2538
Description
Complete module with cc2538 and CC2592 (power amplifier )ZigBee high power module,CC2538
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Introduction 1. CC2538 chip. ARM core, rich hardware resources; 2. 2.4GHz frequency, long communication range, high anti-interference capability, and transmission rates up to 250kbps. 3. Excellent wireless performance, low harmonics, fully meeting certification requirements; 4. Low power consumption, easily switchable to low-power mode; 5. Compact size, light weight, and compatible with motherboard soldering; 6. Made entirely of high-quality components, including genuine MOTO and MICRO crystal oscillators for excellent reliability; 7. Two antenna connection options are available: PCB antenna and IPEX antenna connector. |
| It can be used for smart door locks, smart sockets, smart switches, Zigbee gateways, smart dimming, color-adjustable lighting (supporting 5-way PWM), Zigbee coordinators, routers, terminal devices, and more. We also provide customized hardware and software solutions and product development. |
Product Description
| Parameters | Typical values | illustrate |
| Sensitivity | -103.5dBm | |
| Output Power | +20dBm | +19.5~+21dBm |
| Input Gain | 12dB | |
| Noise | 4dB | |
| Transmit Current | <175mA | At maximum transmit power |
| Receive Current | 30mA | |
| Sleep Current | 0.4uA | |
| Operating Voltage | +3.3V | |
| Transmission Distance | 600m | Use PCB antenna, straight line of sight |
| Data Rate | 250Kbps | |
| Number of Channels | 16 | |
| Antenna | PCB or IPEX | |
| Temperature Range | -40℃~80℃ | |
| Dimensions | 33*20mm |
Product Photos
