GPS module NEO-7M 7N APM2.5 flight control with EEPROM navigation satellite positioning

Product Introduction

The NEO-6M GPS module has high sensitivity, low power consumption, miniaturization, and its extremely high tracking sensitivity greatly expands its positioning coverage. In places where ordinary GPS receiving modules cannot locate, such as narrow urban skies and dense jungle environments, NEO-6M can achieve high-precision positioning. The high sensitivity, small static drift, low power consumption, and lightweight size of the module make it suitable for applications in car and handheld devices such as PDAs, vehicle monitoring, mobile phones, cameras, and other mobile positioning systems. It is the best choice for GPS product applications.

Product Parameters

Module size: 37.4x26.2MM

1. Voltage

Input voltage: 3.3-5.5V

power consumption

Normal mode: 50 mA

Power saving mode: 30 mA

2. Temperature

Working temperature -40 ° Cto+85 ° C

Storage temperature -55 ° Cto+100 ° C

Product Functions

3. Pin description and electrical connection

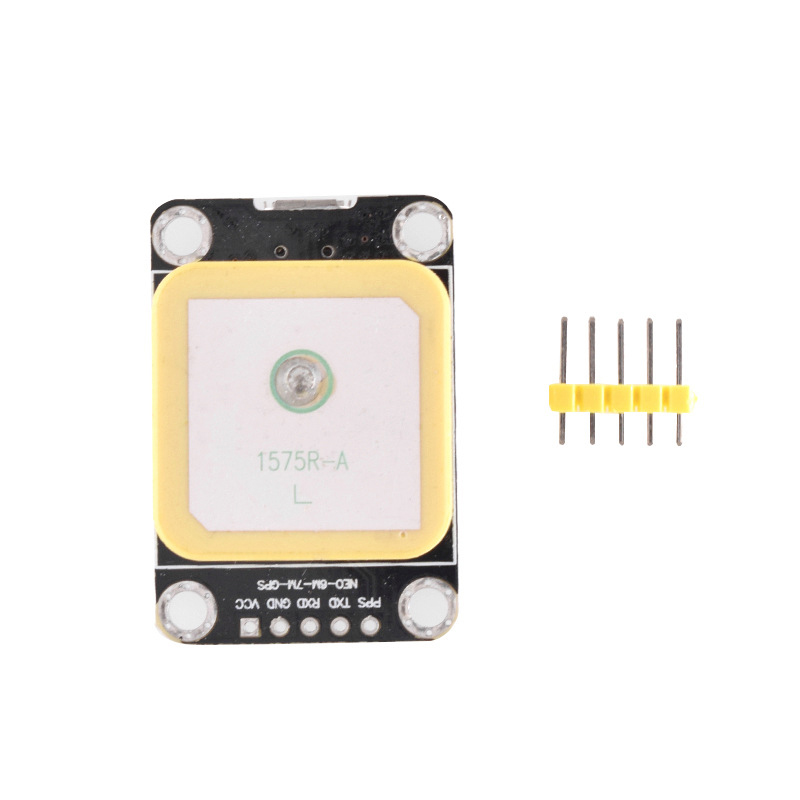

Module pins

The PPS module pin is connected to a red LED light

Always on: working normally, but not located. Flashing: successfully located

4. Baud rate

The default baud rate for the module is 9600

5. Characteristic parameters

The module comes with a ceramic antenna and an IPEX interface that can be connected to other active antennas

The module has added an RF amplification circuit, which is beneficial for accelerating the search for stars

The module comes with a rechargeable backup battery that can maintain ephemeris data in case of power failure

The module is compatible with 3.3V/5V levels, making it easy to connect various microcontroller systems

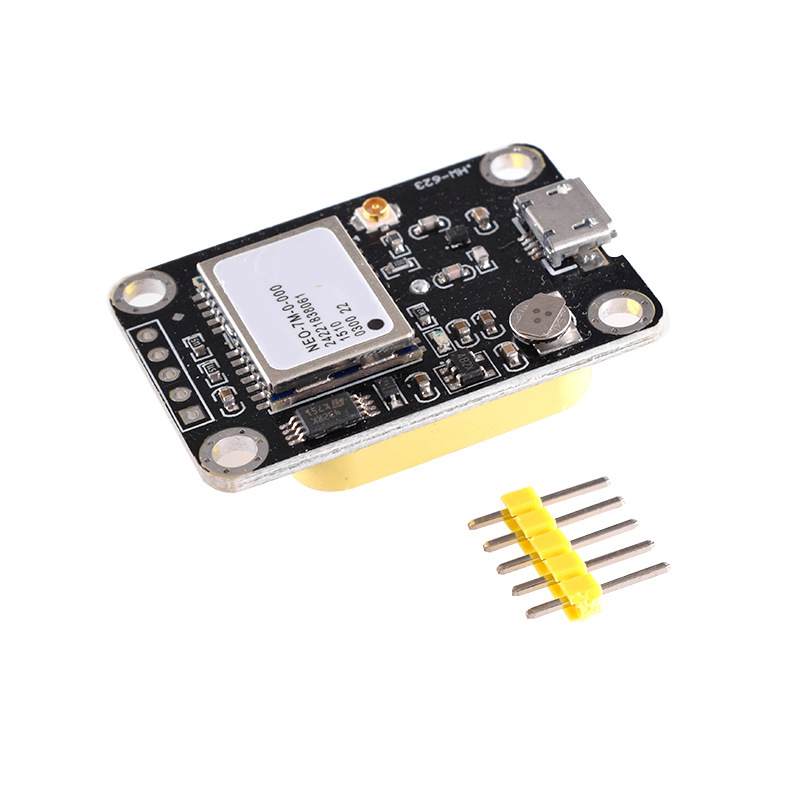

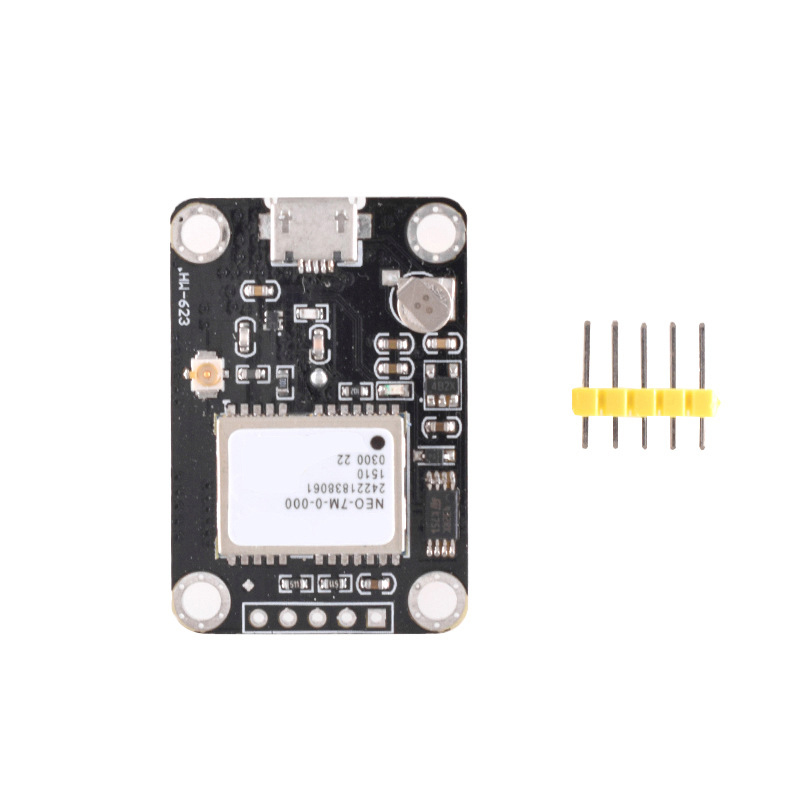

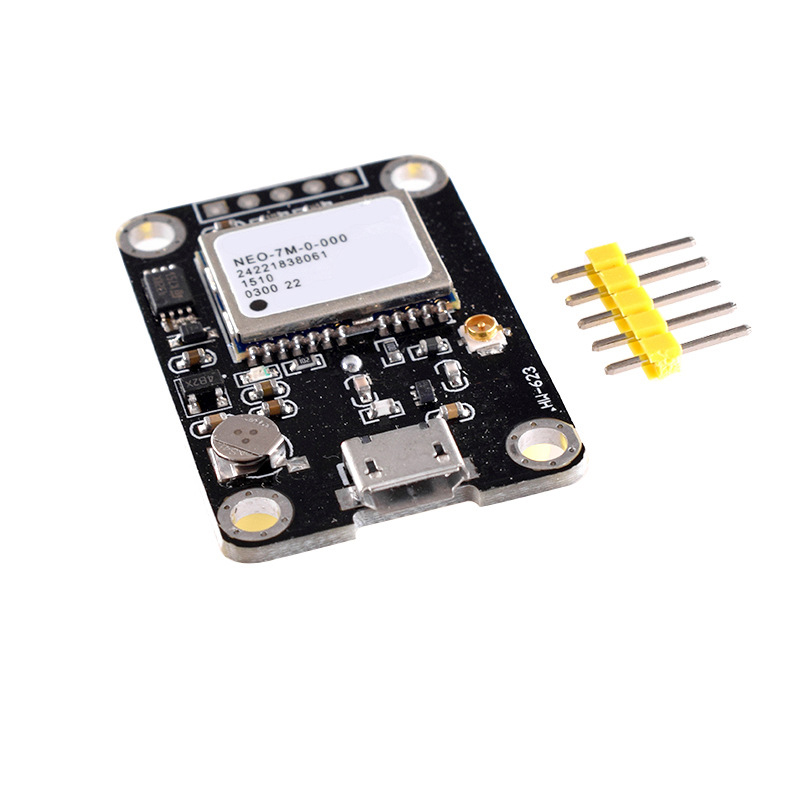

Product Show
