Original E180-2G4Z20SX 2.4G zigbee3.0 wireless module ad hoc network industrial grade XBEE low power MESH wireless module
Manufacturer Product Number
E180-2G4Z20SX
Description
E180-2G4Z20SX is a ZigBee module that enables fast wireless connectivity, is easy to add, has a small size, low power consumption, high reliability, and operates in the 2.4GHz frequency band
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
E180-2G4Z20SX is a ZigBee module designed and produced by Chengdu Yibaite, which can quickly achieve wireless connection, is easy to add, has a small size, low power consumption, high reliability, and operates in the 2.4GHz frequency band. It integrates a power amplifier internally and has a maximum transmission power of 20dBm.
E180-2G4Z20SXS integrates fast and easy-to-use self-organizing network functions, simplifying the complex development process of wireless products and enabling your products to be quickly launched into the market at a lower cost.
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E180-2G4Z20SX | |
| Communication distance | 500m | In a clear and open environment, the antenna gain is 2.5dBi, the antenna height is 2 meters, and the air rate is 250kbps. |
| Crystal frequency | 38.4MHz | - |
| supporting agreement | ZigBee 3.0 | - |
| Packaging method | SMD type | - |
| Interface mode | 1.25mm stamp hole | - |

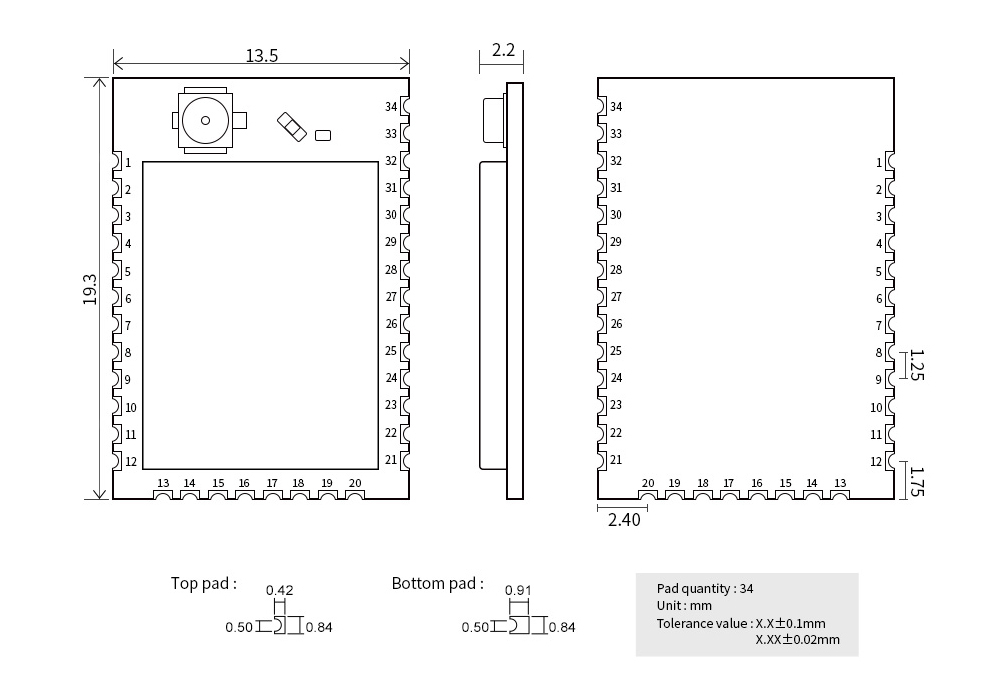

| Dimensions | 13.5*19.3*2.2mm | ±0.1mm |
| Antenna interface | IPEX/stamp hole | Equivalent impedance is about 50Ω |
| product weight | 1.1g | ±0.1g |

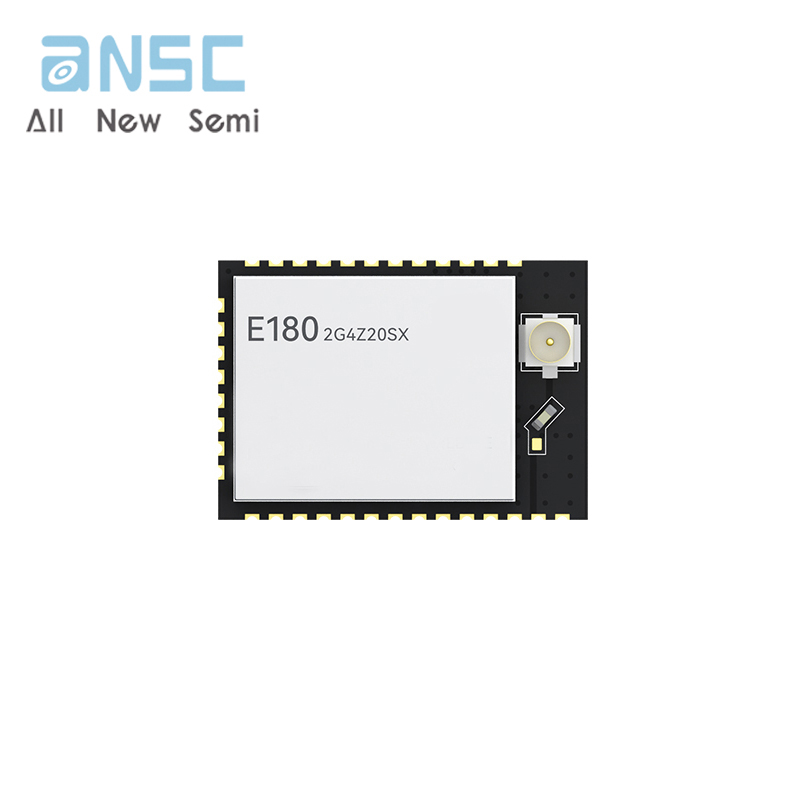

Actual product photos
