Hot selling original stock sale ME31-AAAX2240 Ethernet I/O networking acquisition control module

Product Descriptions

ME31-AAAX2240 is equipped with 4-way A-type relay output, 2-way analog (0-20mA/4-20mA) input, 2-way dry contact input detection, and supports Modbus TCP protocol or Modbus RTU protocol for acquisition and control. At the same time, the device is also a network I/O networking module that can be used as a simple Modbus gateway (automatically send commands with non-local Modbus addresses through the serial port/network port).

Product Features

 Support standard Modbus RTU protocol and Modbus TCP protocol;

 Support various configuration software/PLC/touch screen;

 RS485 acquisition control I/O;

 RJ45 acquisition control I/O, support 4-way host access;

 Support OLED display to display status information, and configure device parameters through buttons;

 2-way analog input (0-20mA/4-20mA);

 2-way switch input DI (dry node);

 4-way switch output DO (Type A relay);

 Switch output (DO) supports level mode, pulse mode, follow mode, reverse follow mode, trigger flip mode;

 Support custom Modbus address setting;

 Support 8 common baud rate configurations;

 Support DHCP and static IP;

 Support DNS function, domain name resolution;

 Support Modbus gateway function;

 Support input and output linkage；

Specifications

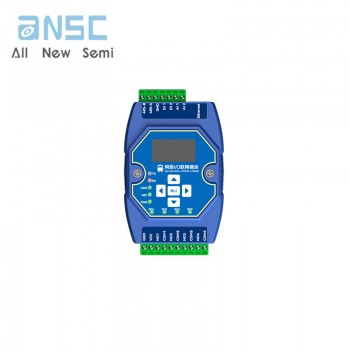

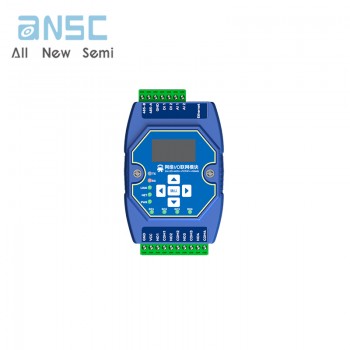

Actual product photos
