8-way 12V computer with USB control switch, no drive relay module, PC

Product Introduction

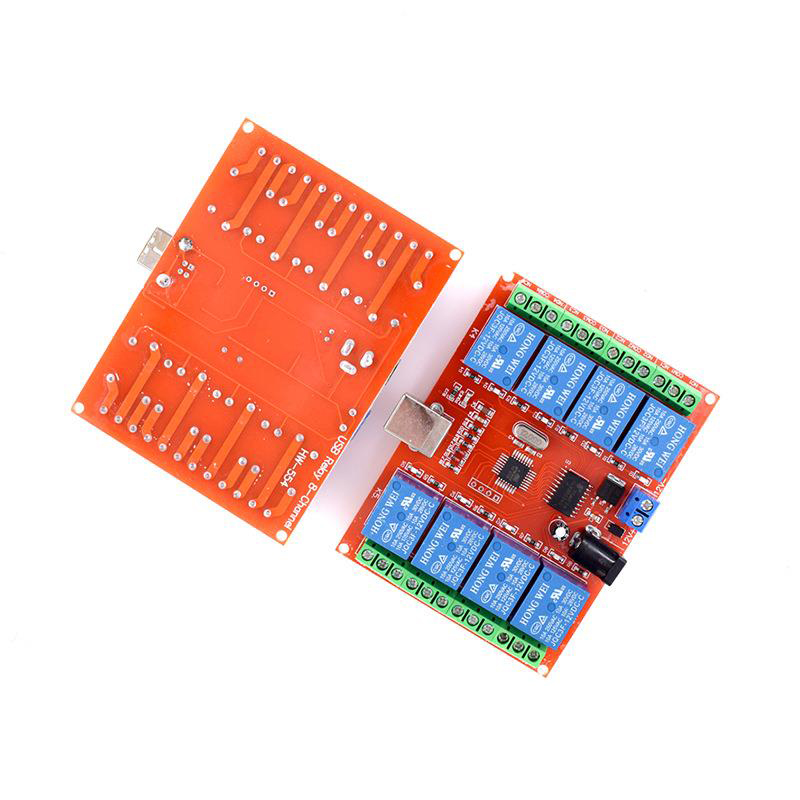

This product is an 8-channel 12V relay module that triggers the relay to close at a low level. It can control up to AC 250V, 10A AC load or DC 30V 10A DC load.

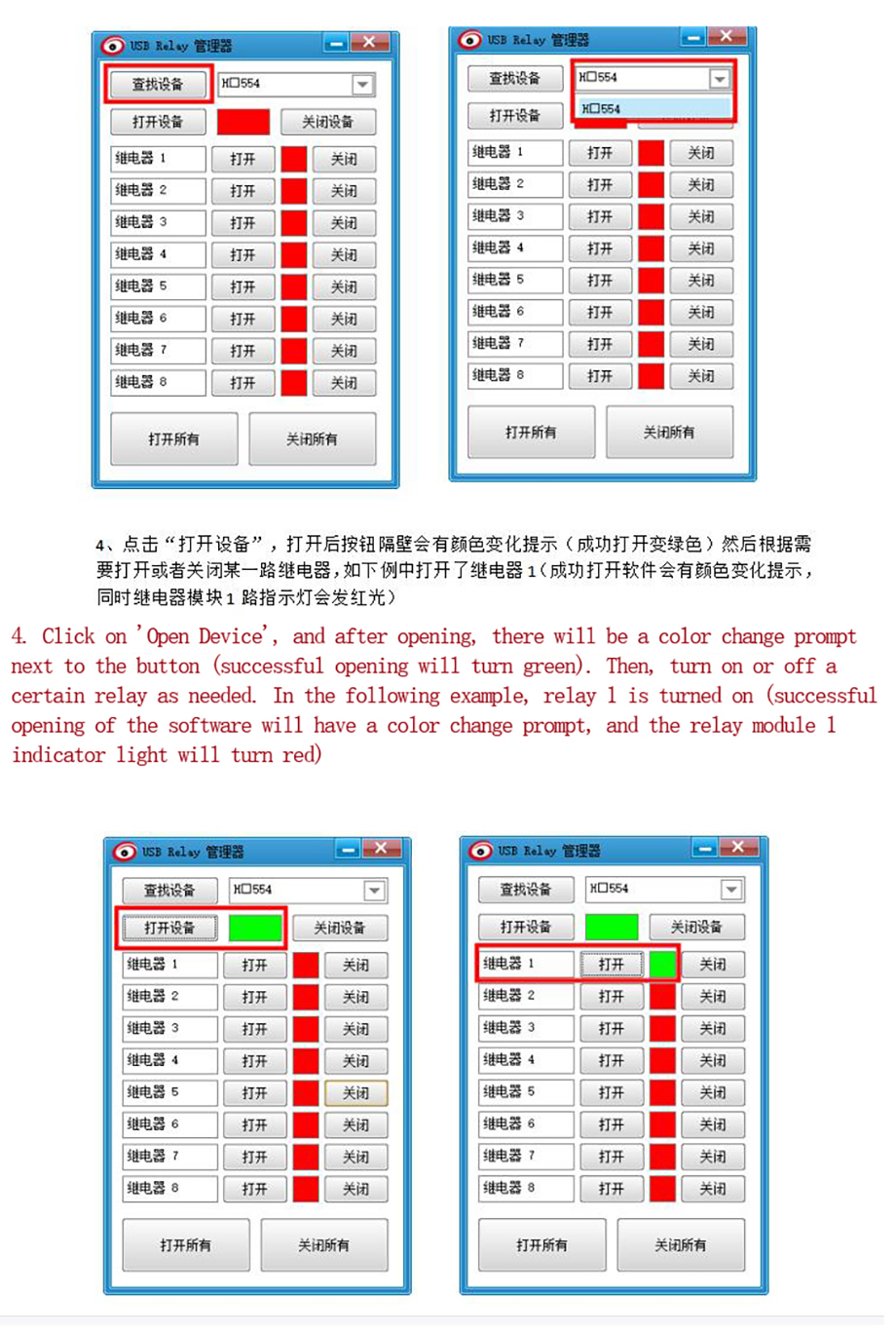

The module has two power supply modes: DC socket and terminal connection; The onboard square USB interface allows the module to be connected to a computer and the relay switch to be controlled using control software.

When a relay is closed, the corresponding indicator light (red light) will light up, and when it is disconnected, it will turn off.

Basic parameters

Input voltage: DC12V

Input current: greater than 300MA

Low level trigger

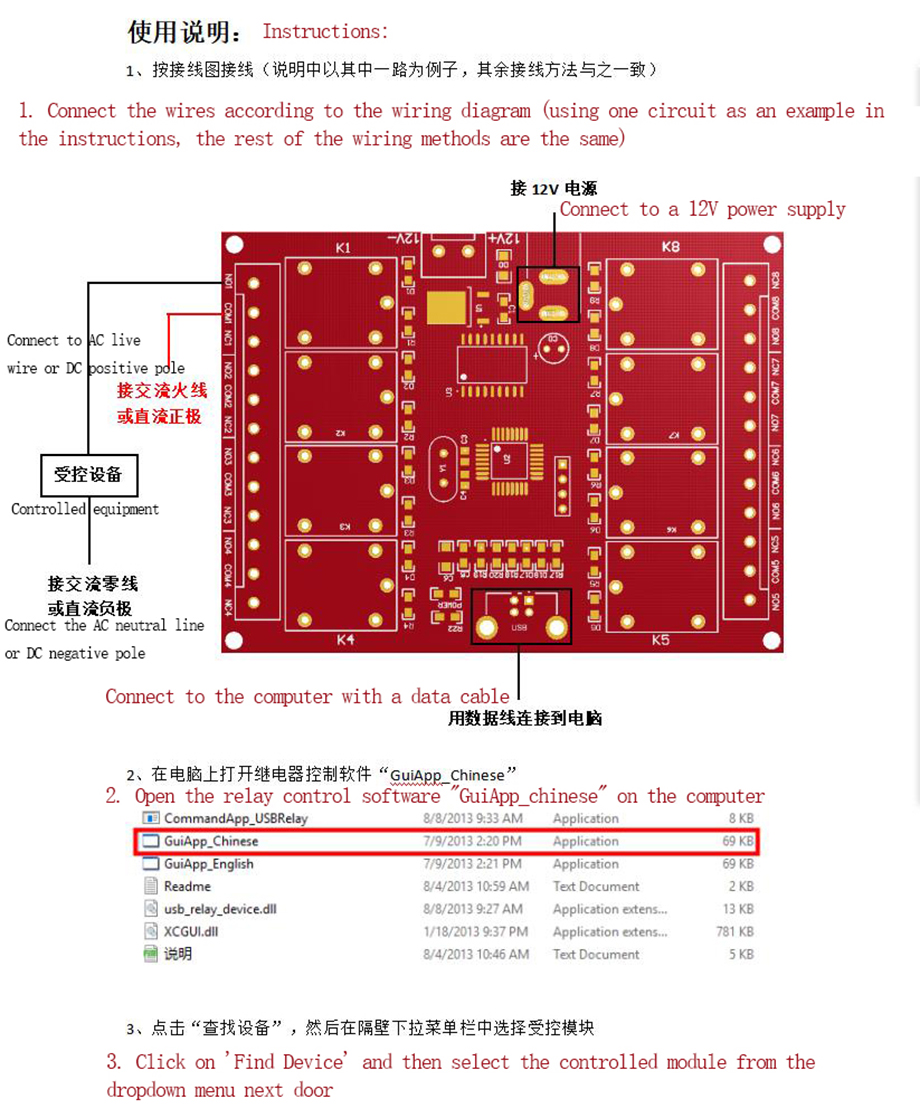

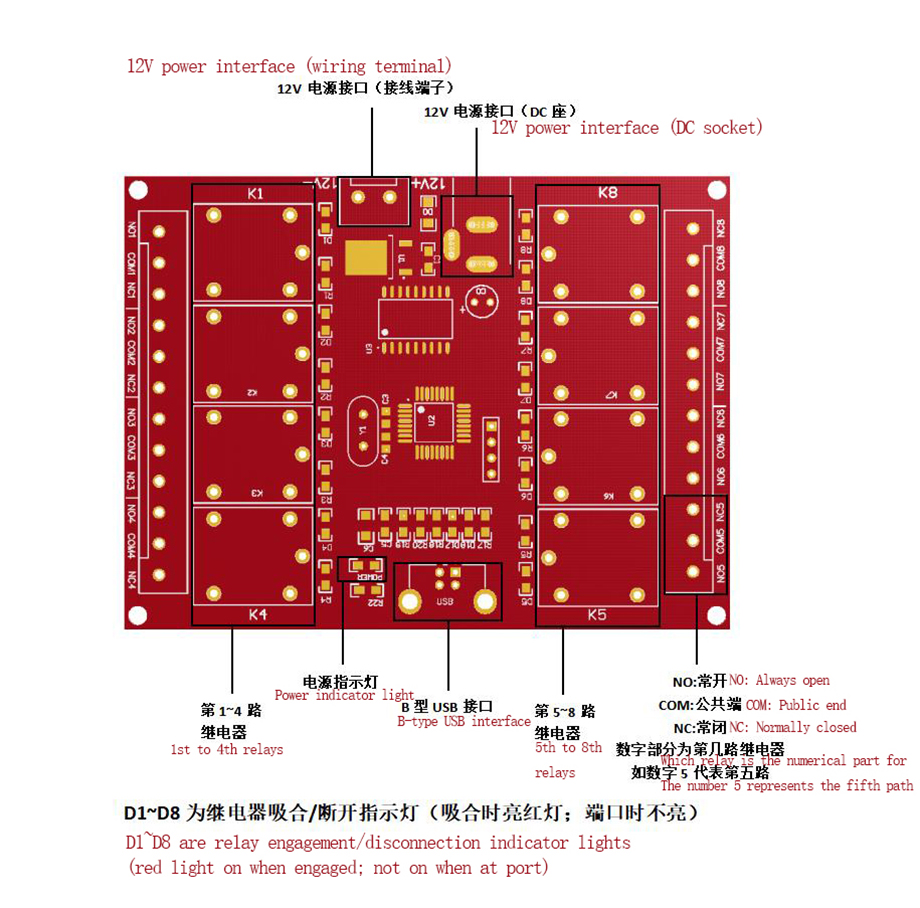

Wiring method in relay control circuit: NC/COM/NO

Product Application scenarios

Home switch control, hotel room electricity control, intelligent greenhouse, internet cafe timing management, karaoke 0K timing control, industrial control equipment, testing equipment power control, centralized power management, etc.

Product Features

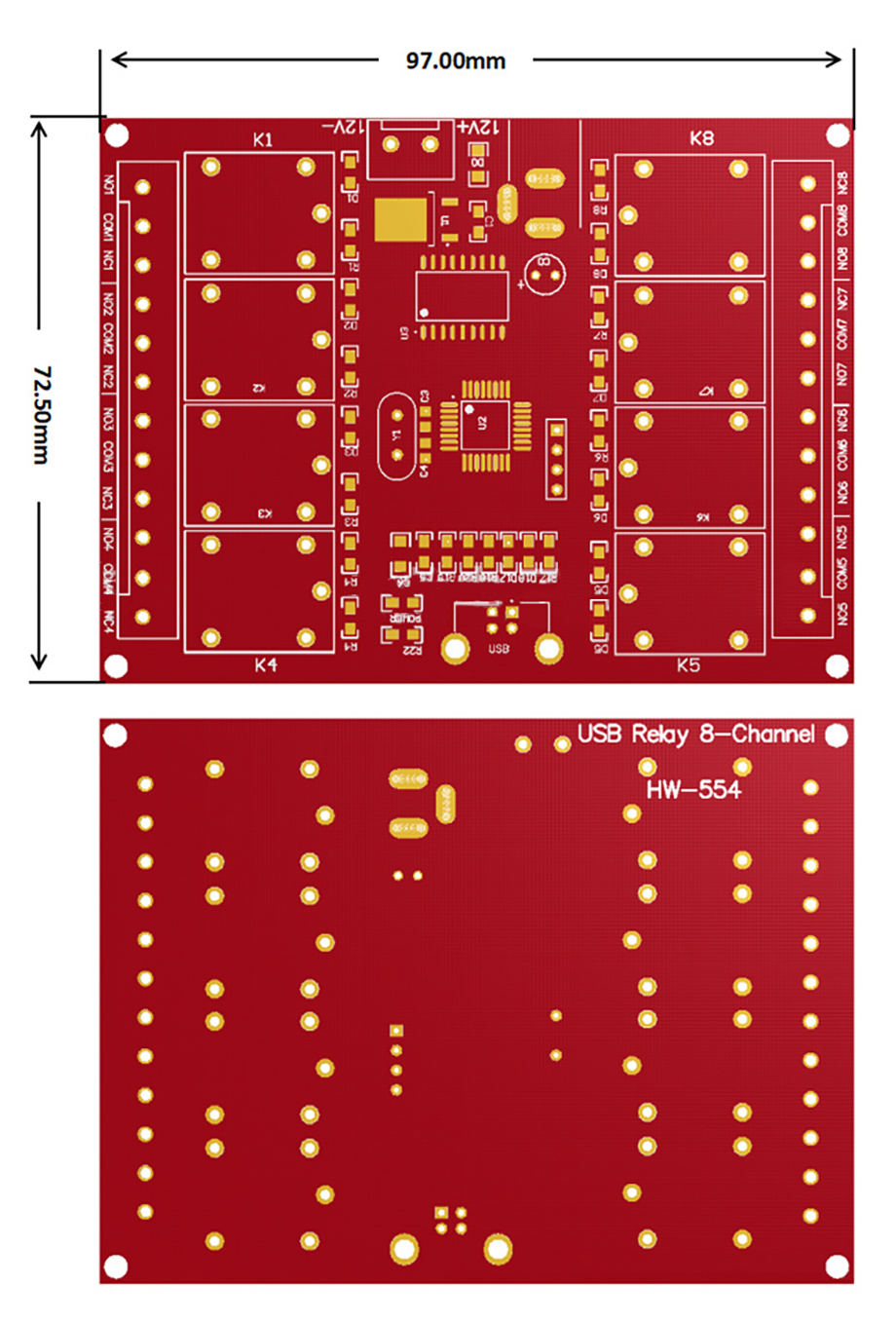

Product Size

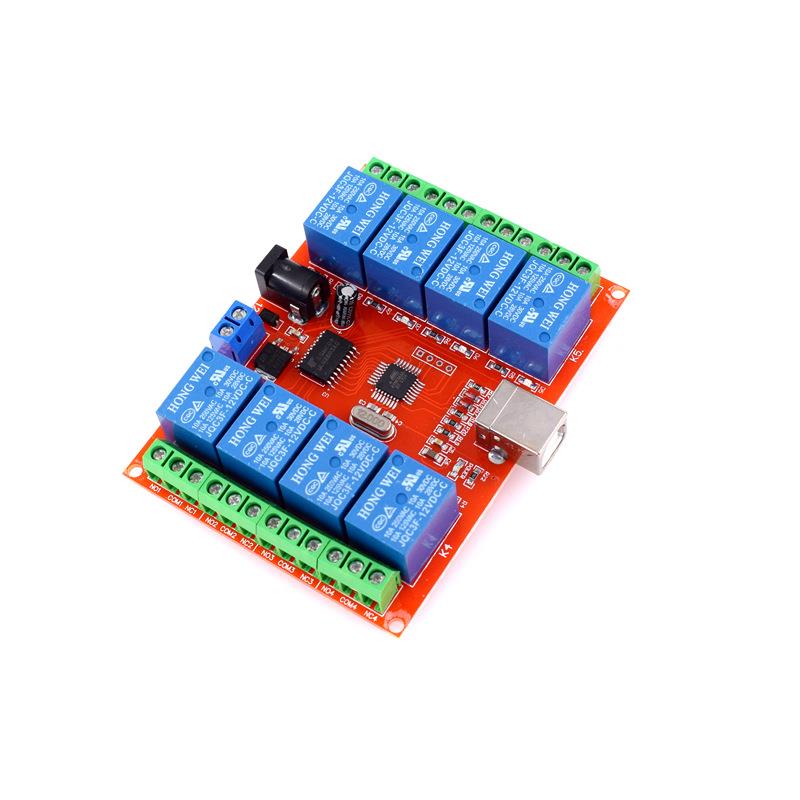

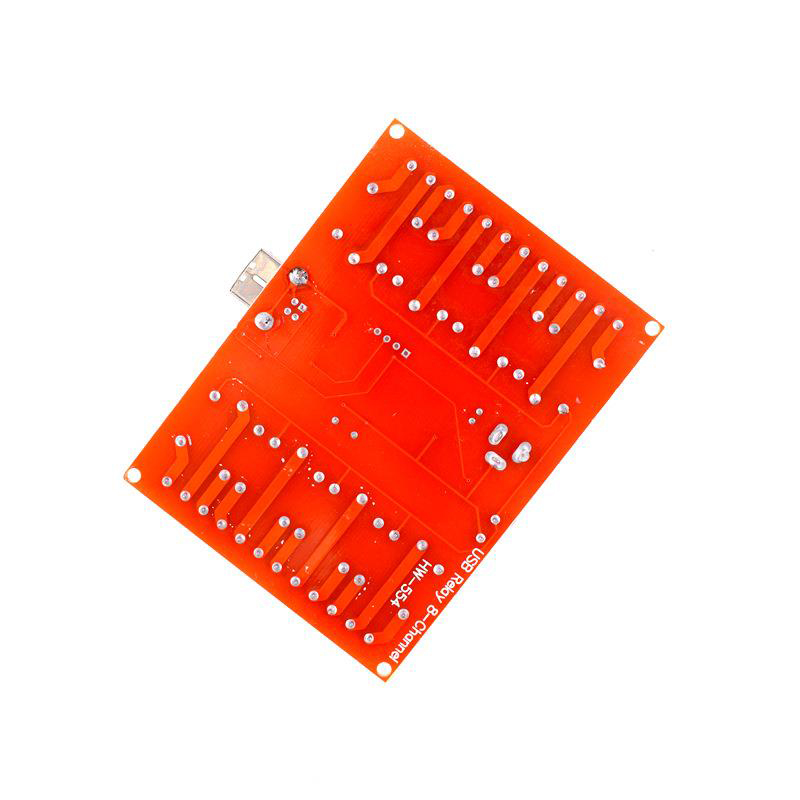

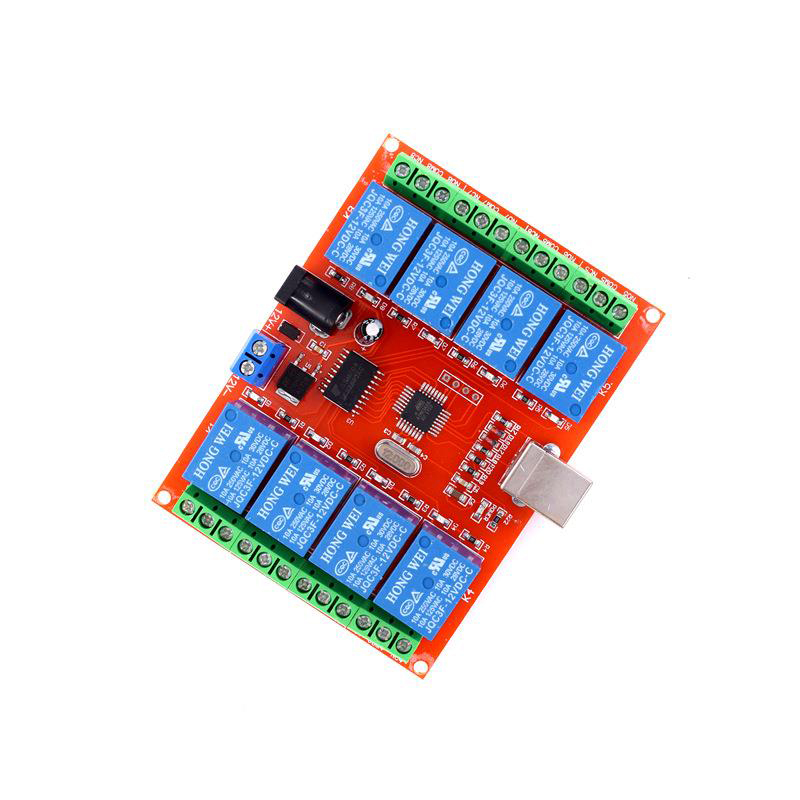

Product Show

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
