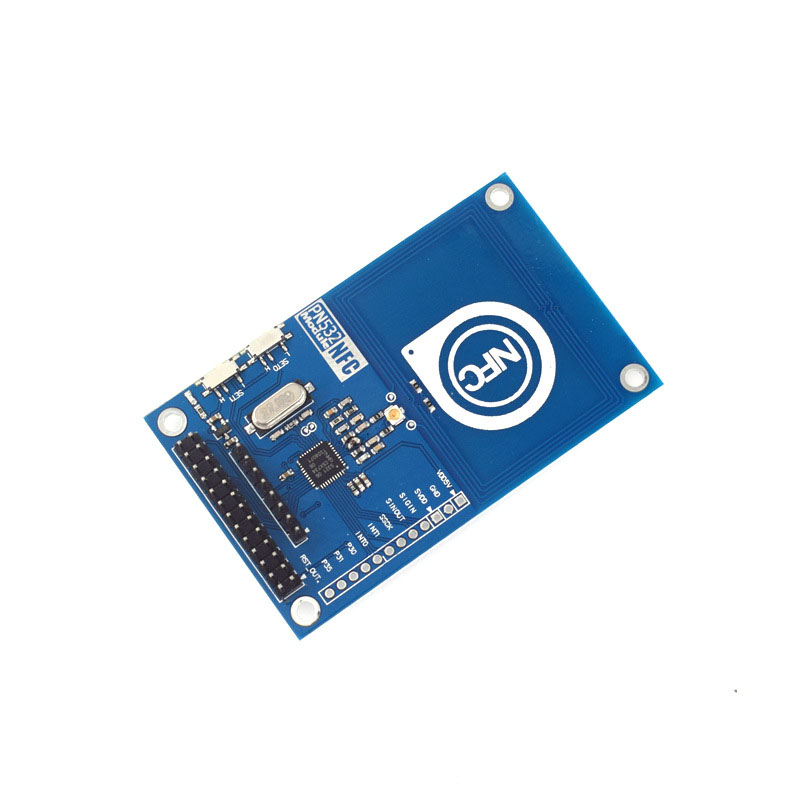

13.56mHz PN532 compatible board NFC reader/writer module

Product Introduction

The ITEAD PN532 NFC module, as its name implies, is based on the PN532 chip and used for near-field communication at 13.56MHz. This module is equipped with an onboard antenna, so there is no external antenna coil. It is compatible with SPI, IIC, UART interfaces for communication. With the NFC library supporting Arduino and the development of NFC enabled products for our Raspberry Pi, it is very convenient to use.

Product Characteristic

Can be used for 13.56M non-contact communication

Support SPI, IIC, UART interface switching.

The effective communication distance is 5 centimeters

Compatible with ISO14443 TYPE A and B standards

Product Standard

Product Parameters

Support the selection and switching of SPI, I2C, and UART interfaces

Effective communication distance within 5 centimeters

Can be used for non-contact communication at 13.56MHz

Compatible with ISO14443 TYPE A and TYPE B standards

Working voltage 3.3V

Power supply voltage 3.3V-5.5V

Maximum working current 150MA

Working current (standby mode) 100MA

Working current (card reading mode) 120MA

Compatible with STD RASPBERRY PI 20PINS interface

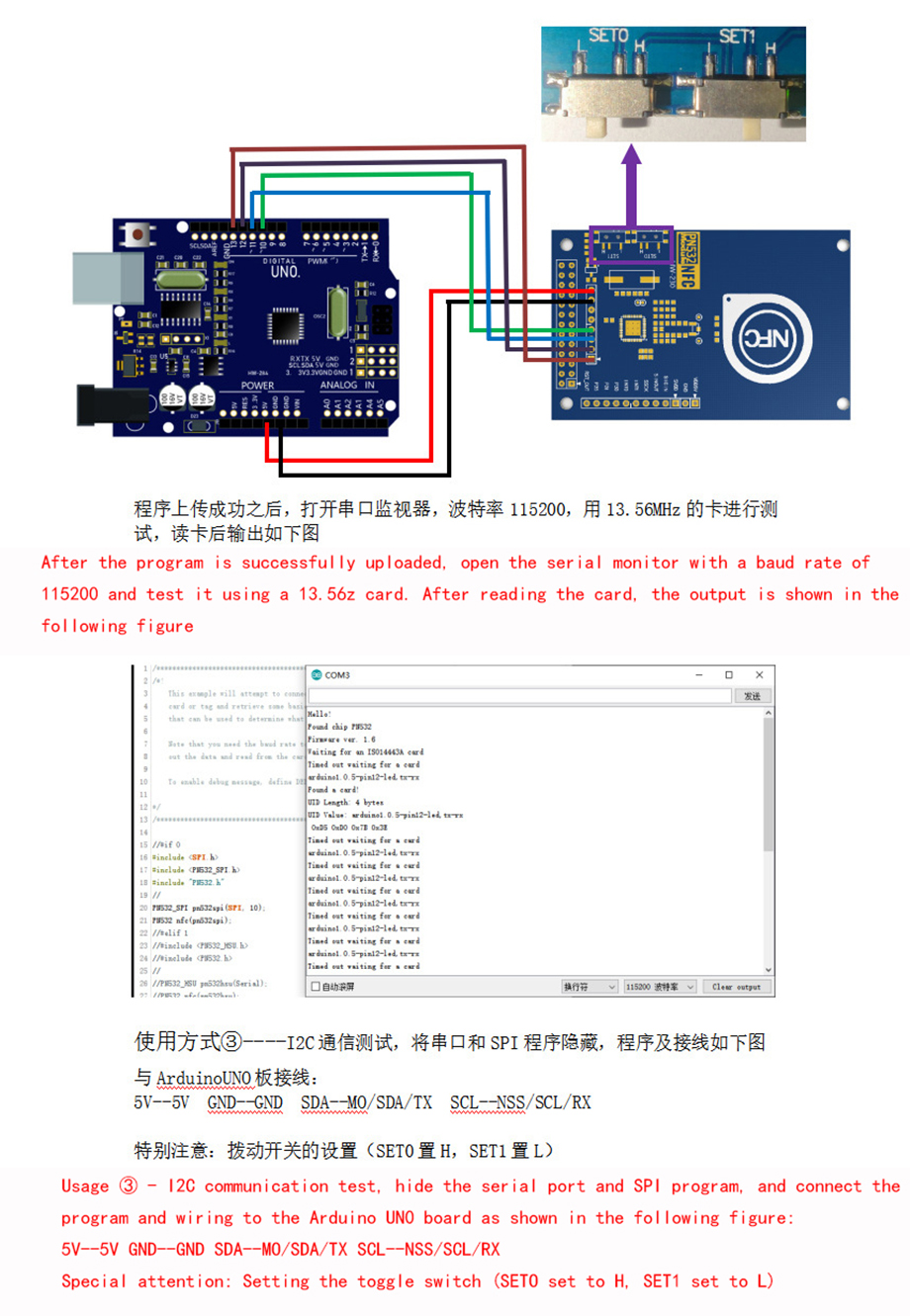

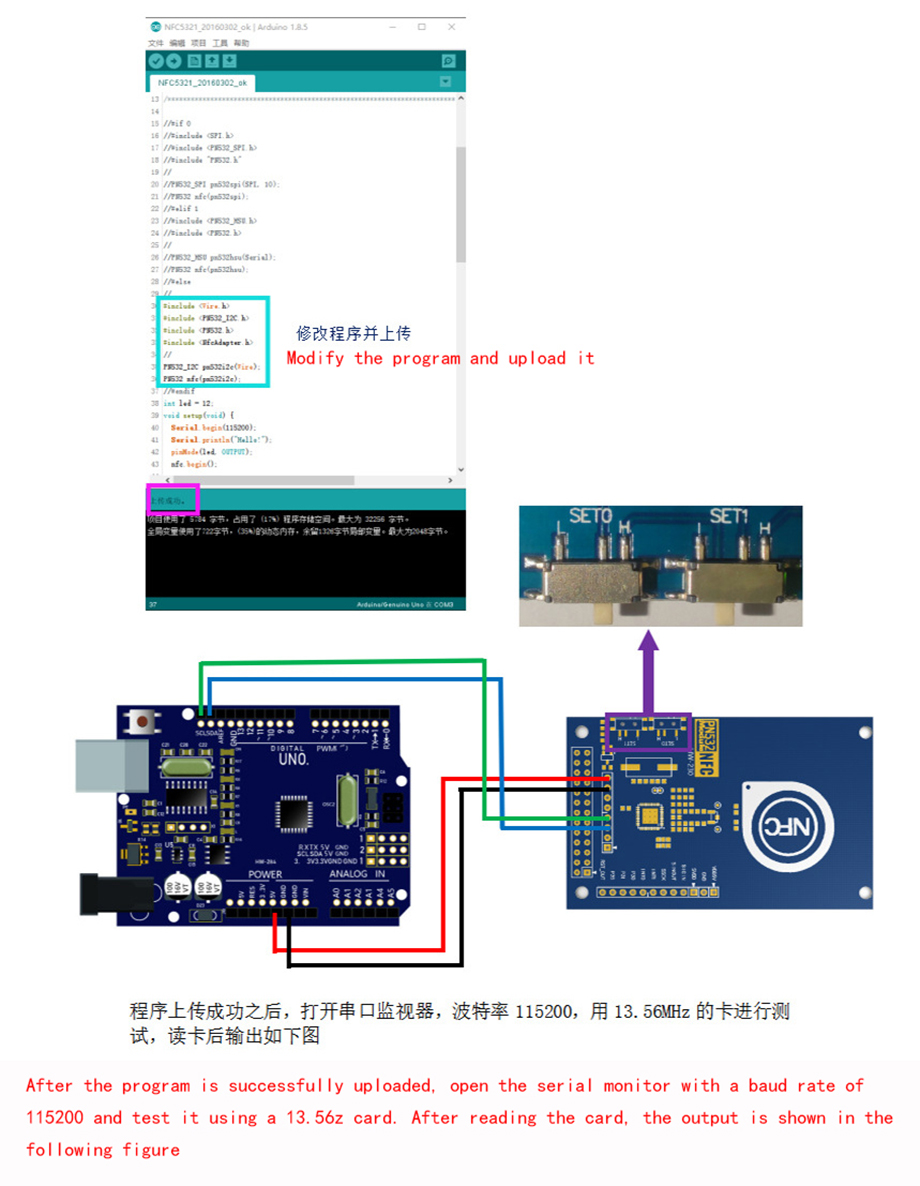

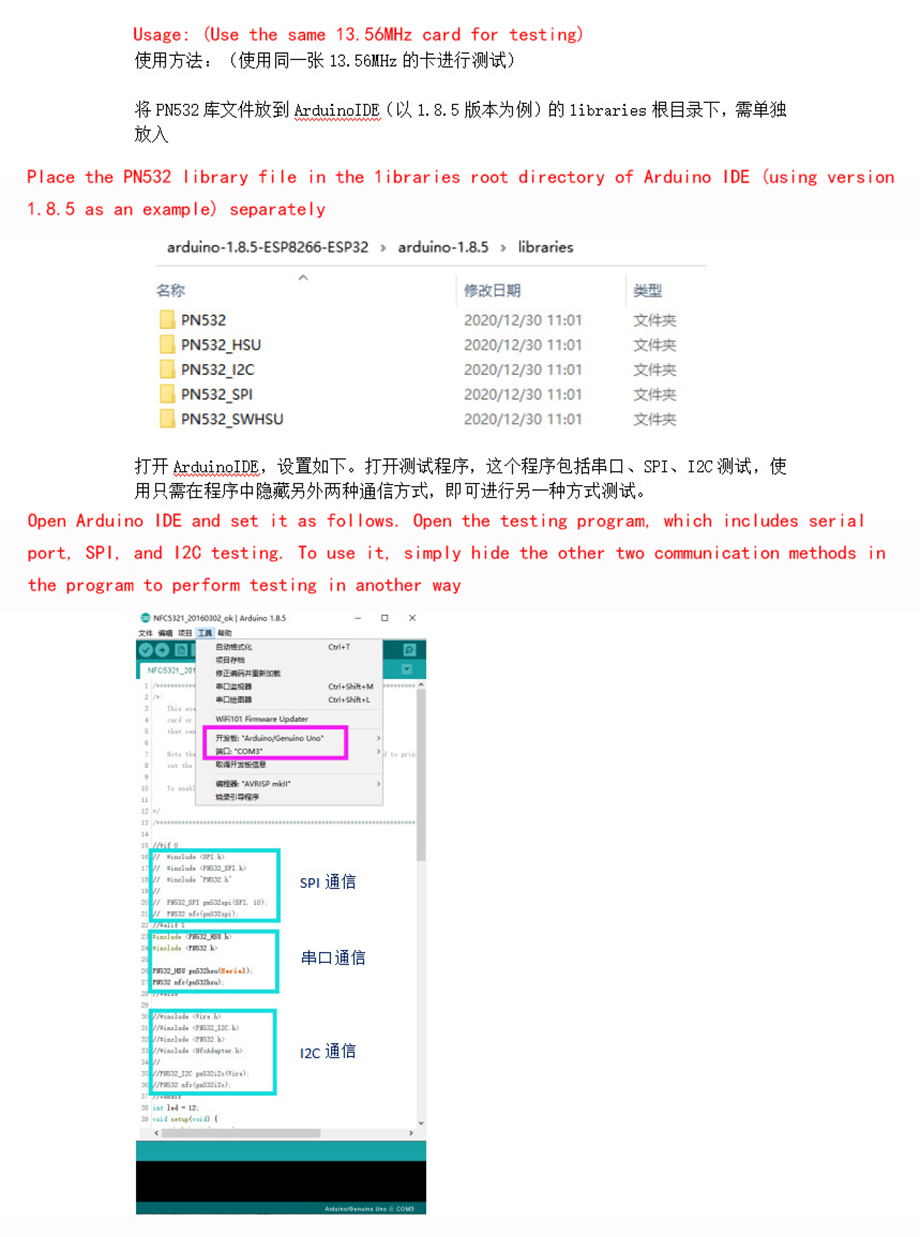

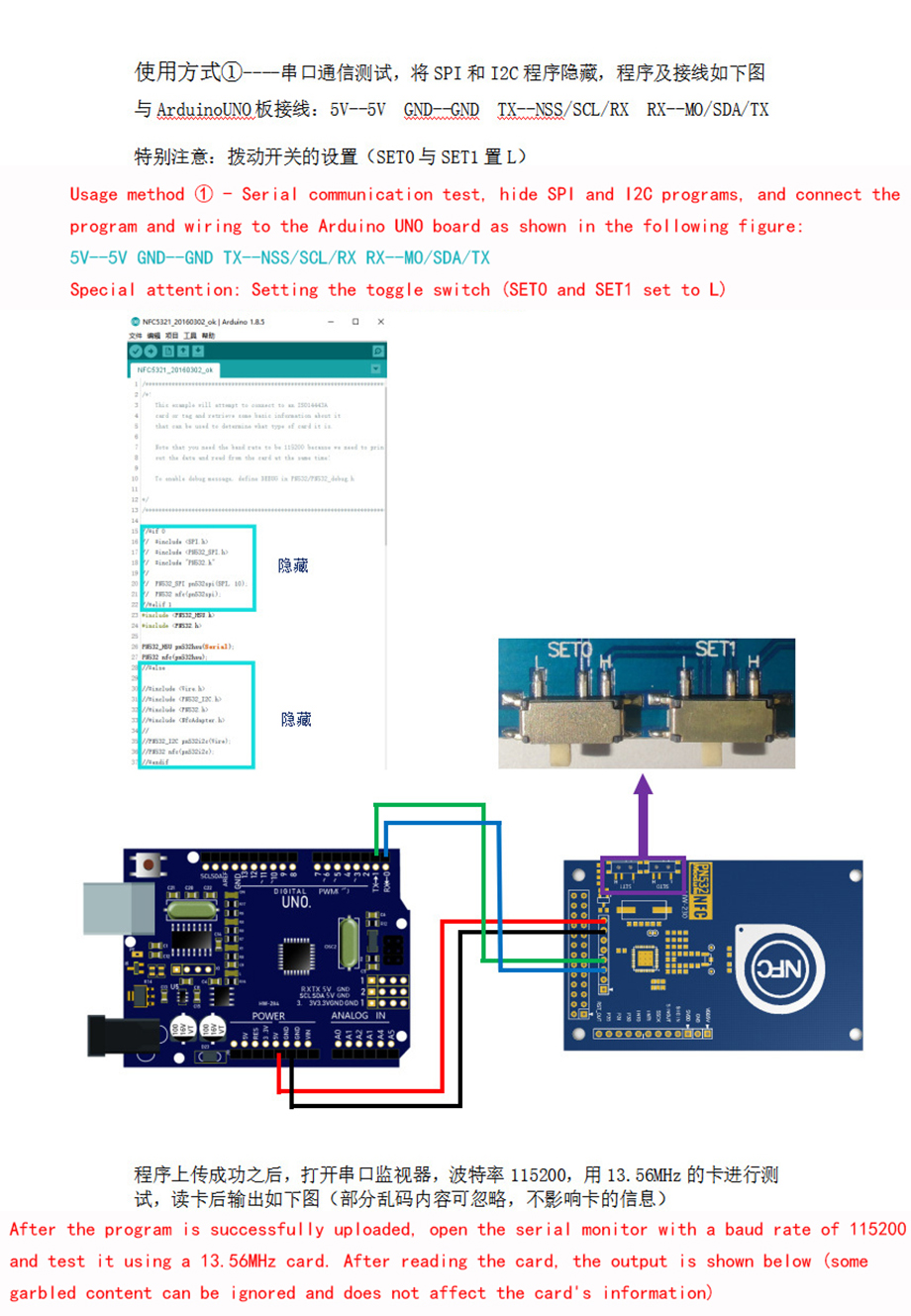

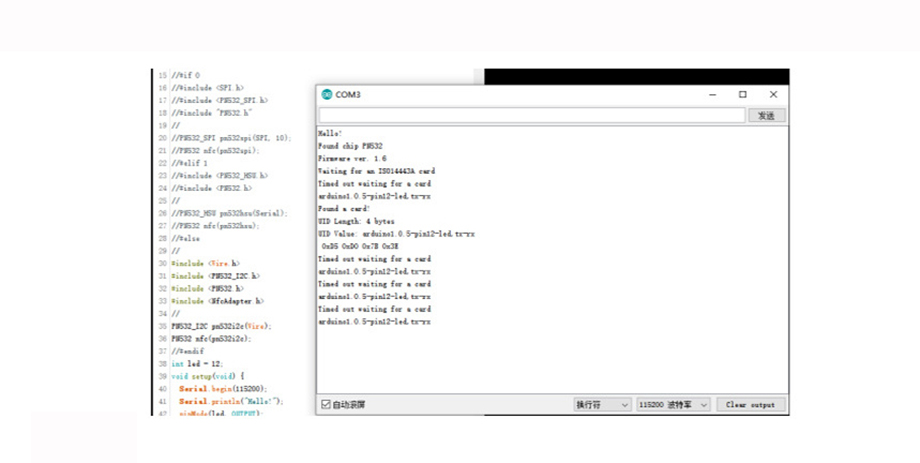

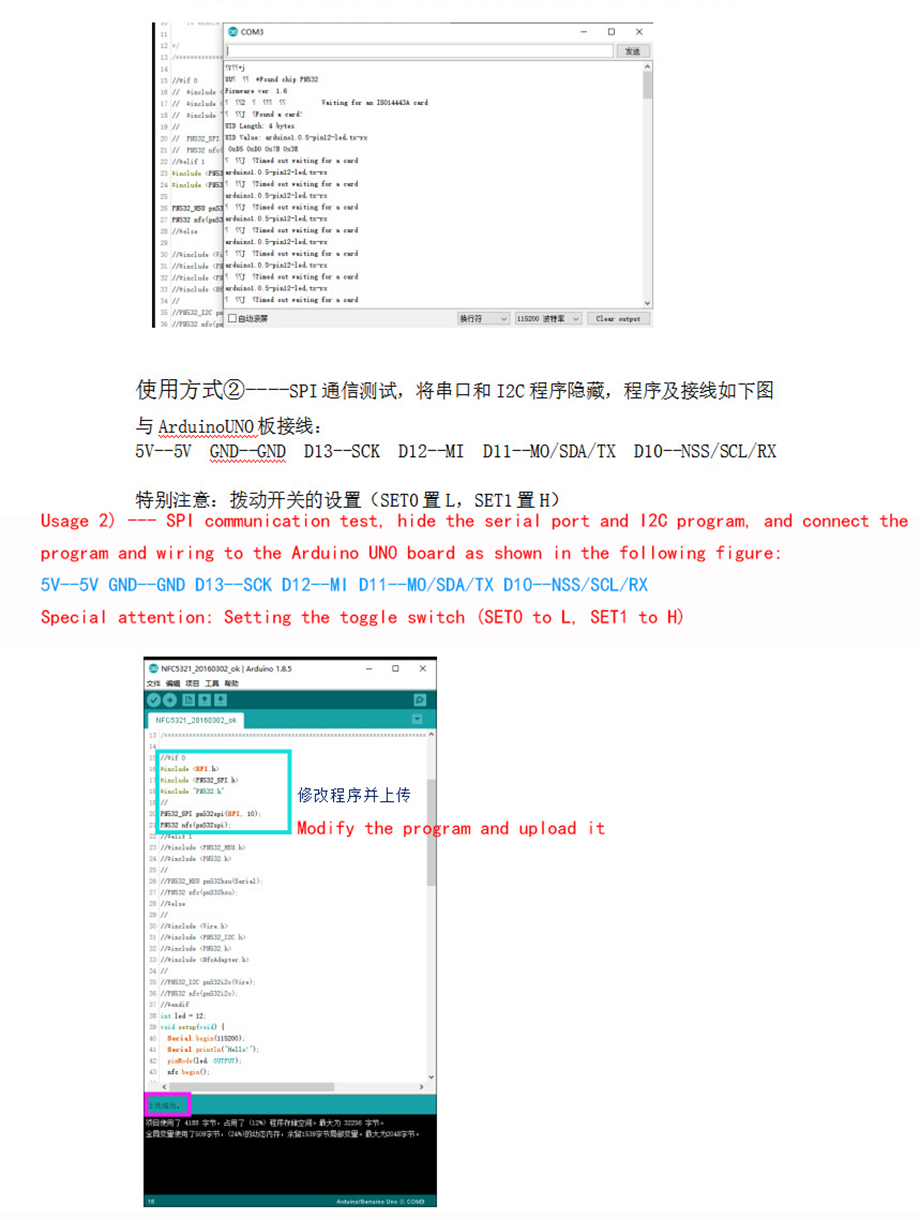

Usage: (Use the same 13.56MHz card for testing)

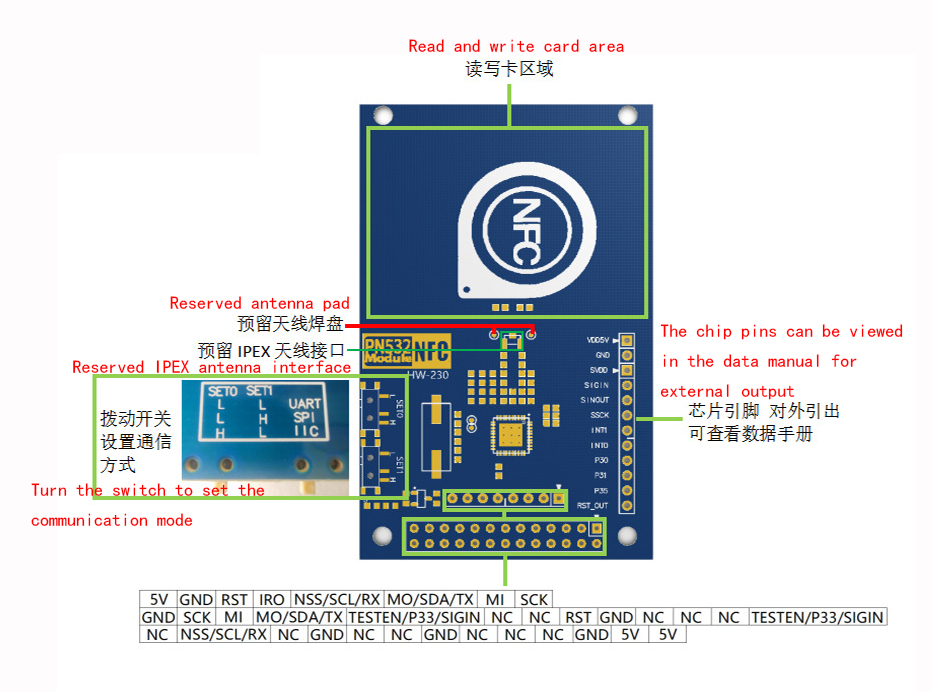

Product Functions

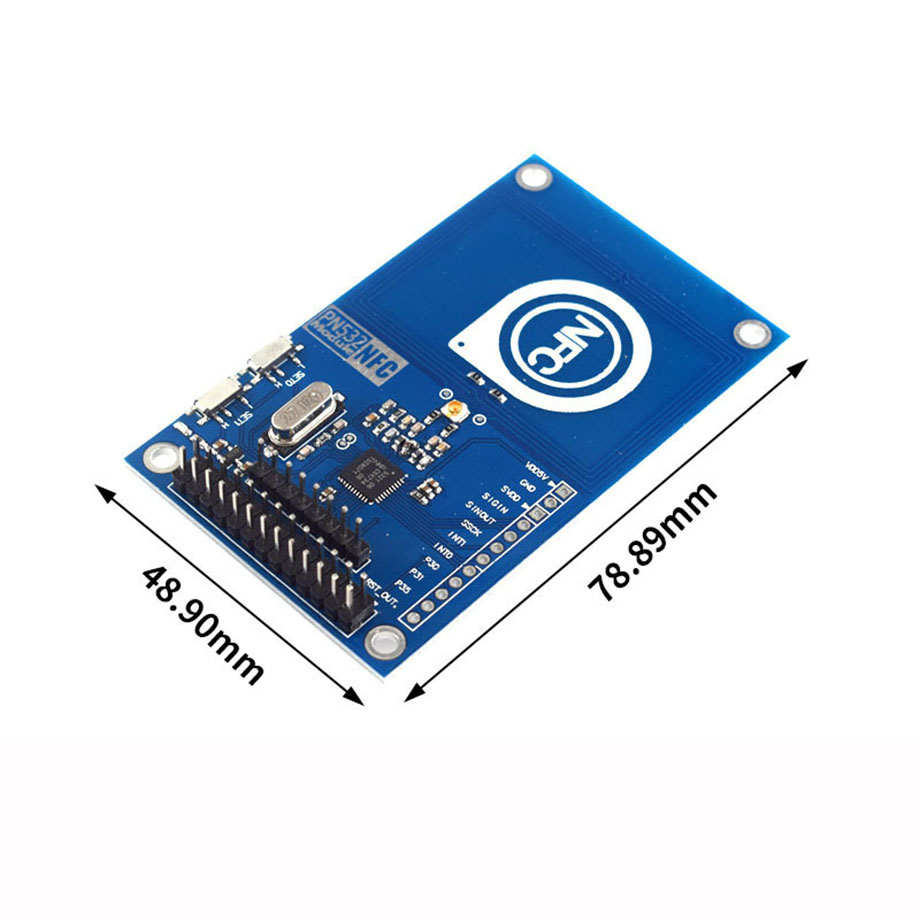

Product Size

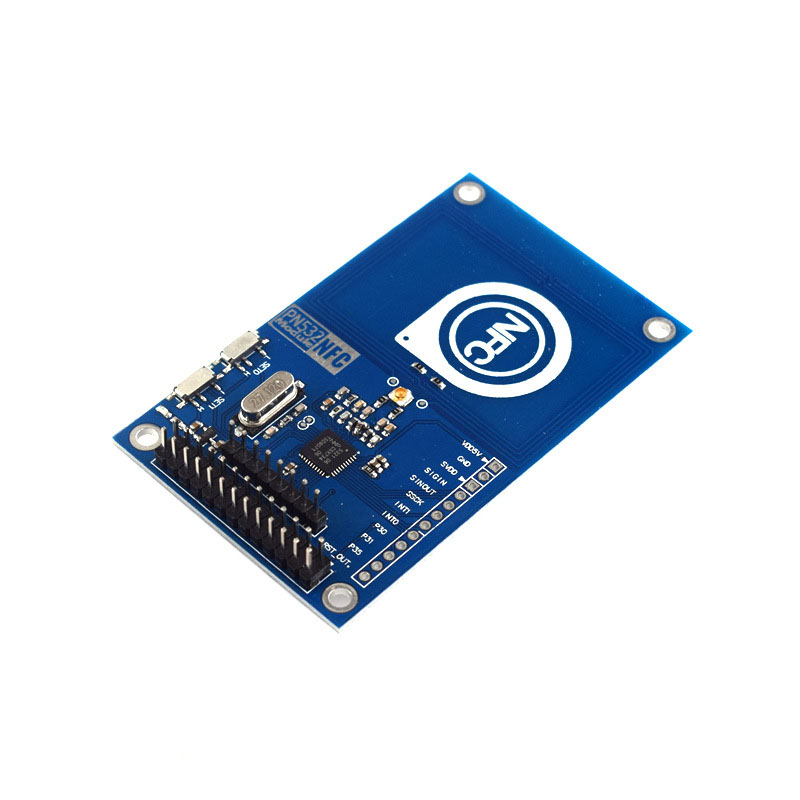

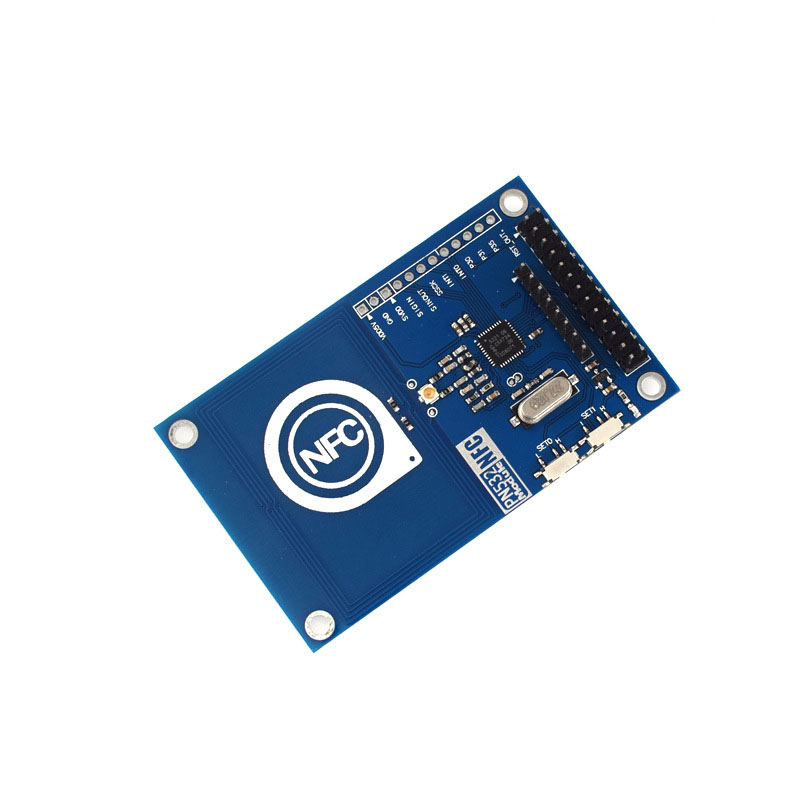

Product Show
