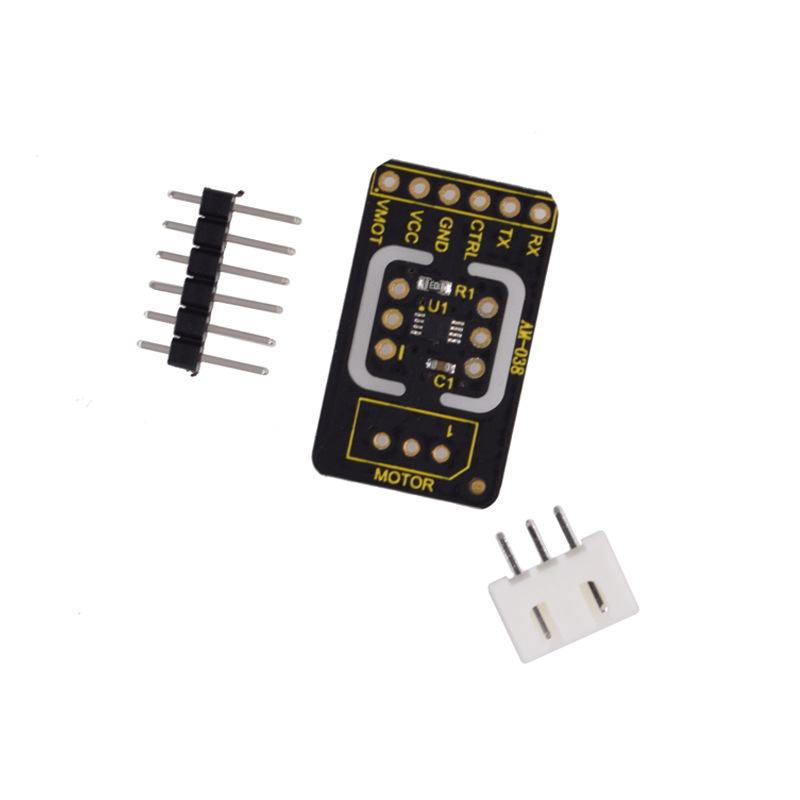

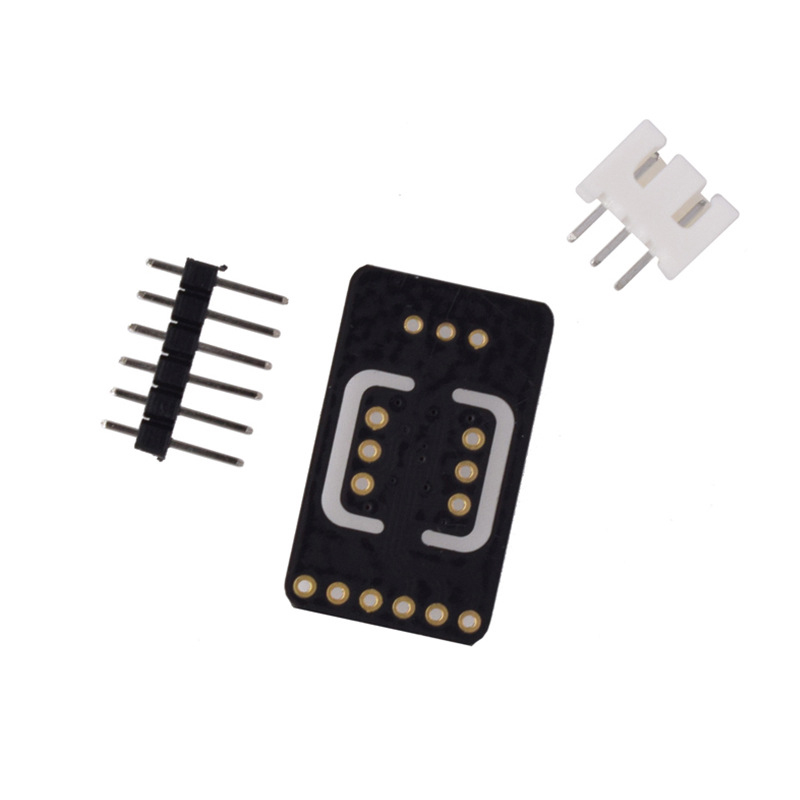

Motor drive module, independent servo motor drive module, high and low level drive board
Manufacturer
Manufacturer Product Number
M355
Description
Motor drive module, independent servo motor drive module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Parameters
Chip model: SN74LVC2G241
Supports 5V VCC operation
Chip operating temperature:- 40°C~85°C

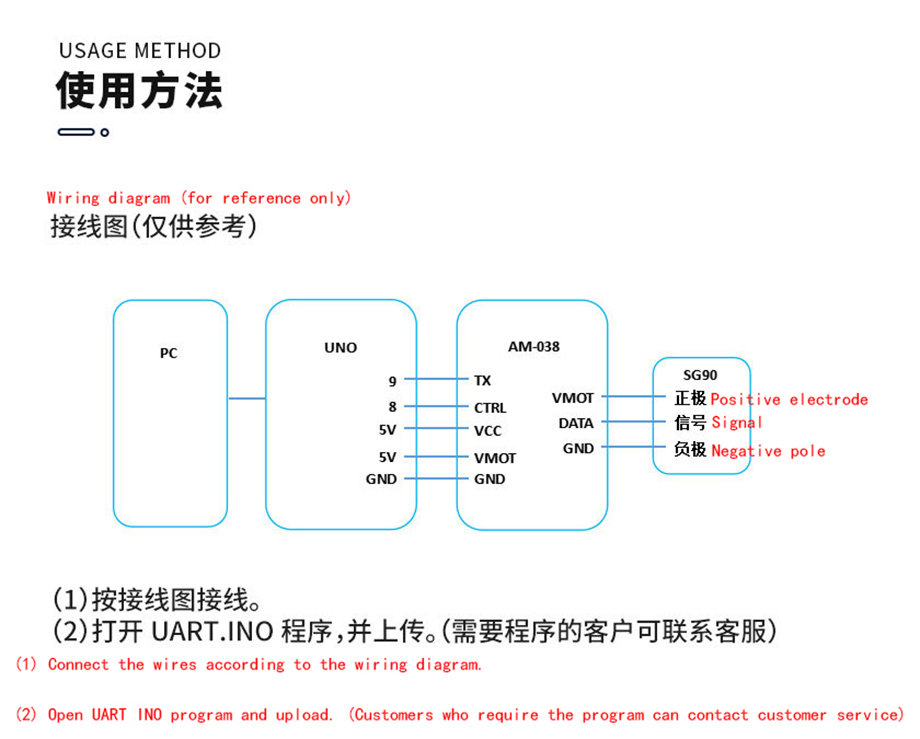

The motor model and parameters used in the instructions for use
model: TOWER PRO SG90 MICRO SERVO 9G
Stall torque: 1.8KG/CM (4.8V)
Working speed: 0.1 seconds/60 degrees (4.8V)
Working voltage: 4.8V
Temperature range: 0C_55C
Dead zone width: 1US
Power supply: via external adapter
Servo line length: 25CM
Servo plug: JR
Product Descriptions
This module can drive a single servo motor. Having independent enabling function, when 1OE is low and 2OE is high, the device transfers data from input A to output Y. When 1OE is high and 2OE is low, the output is in a high impedance state.

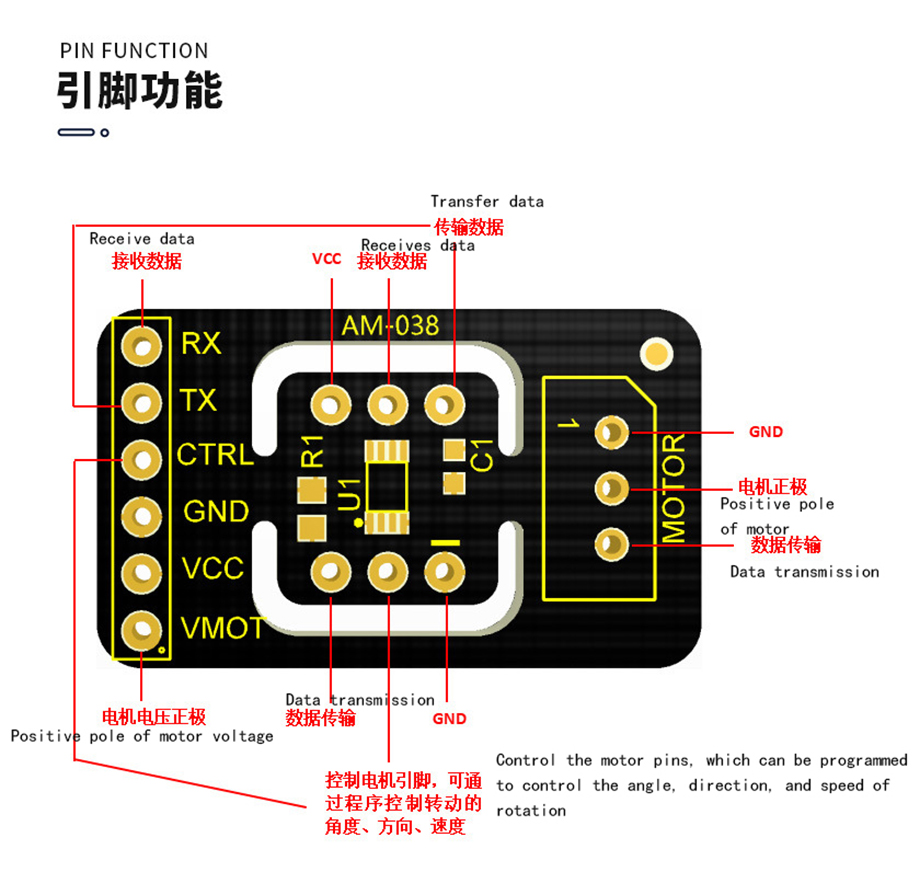

Product Functions

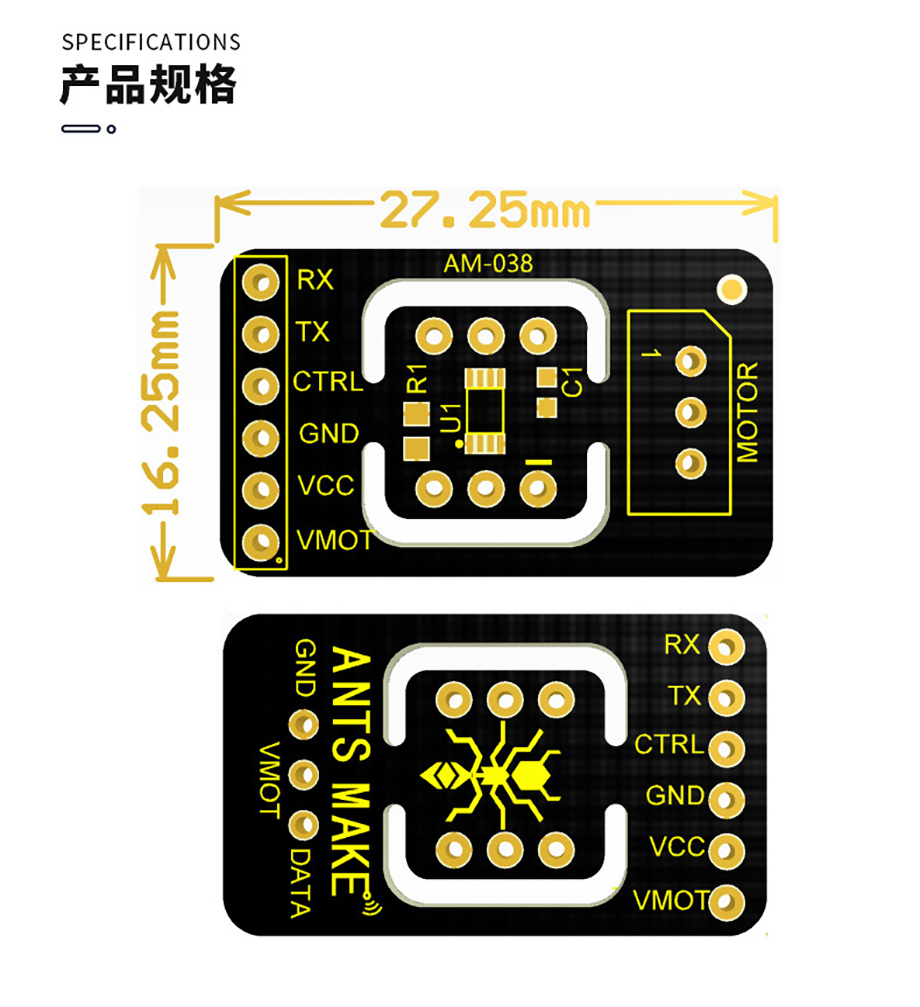

Product Size

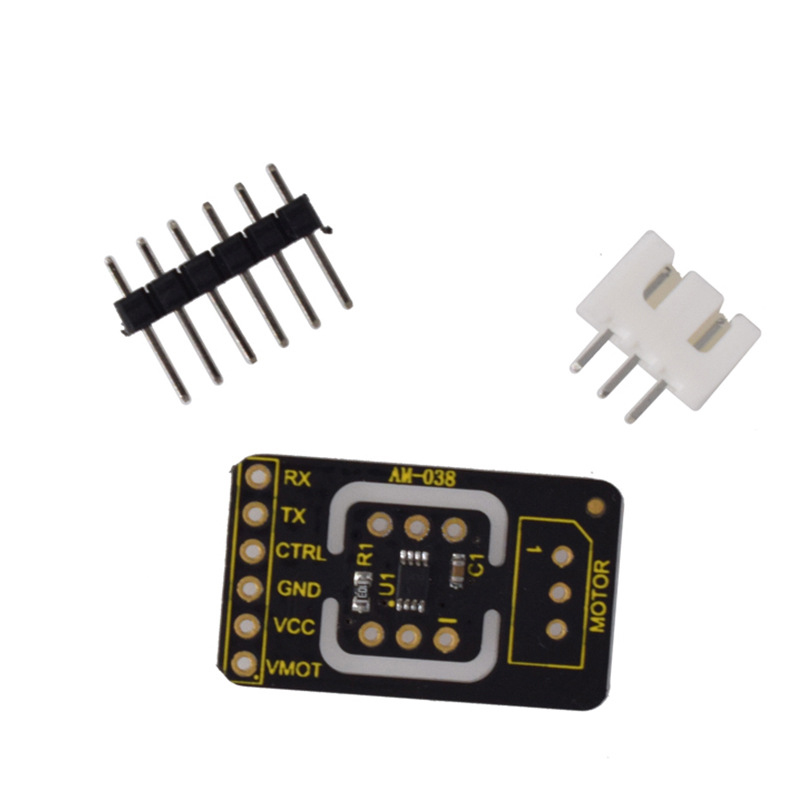

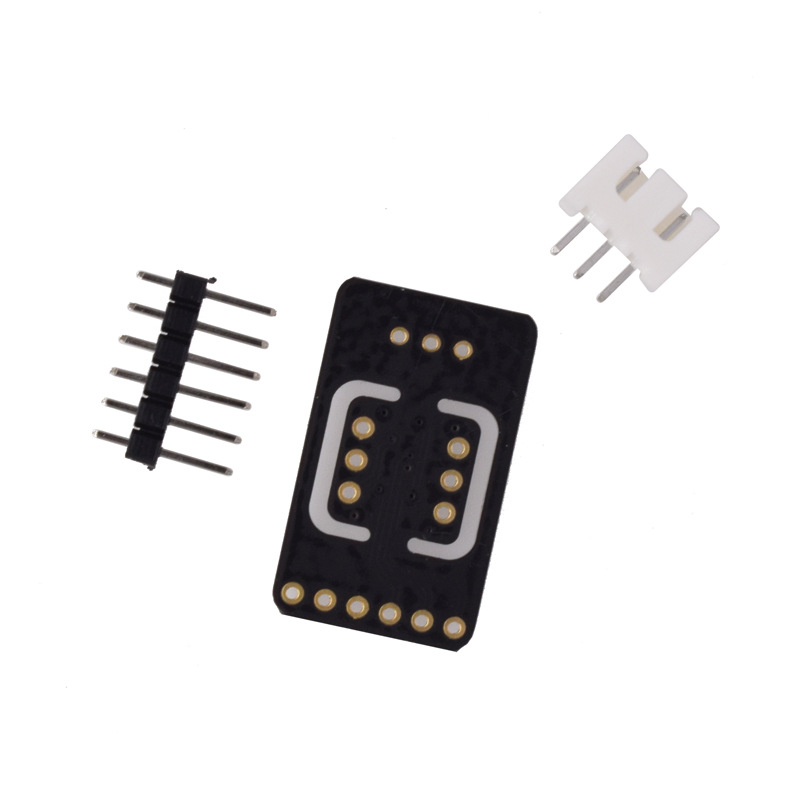

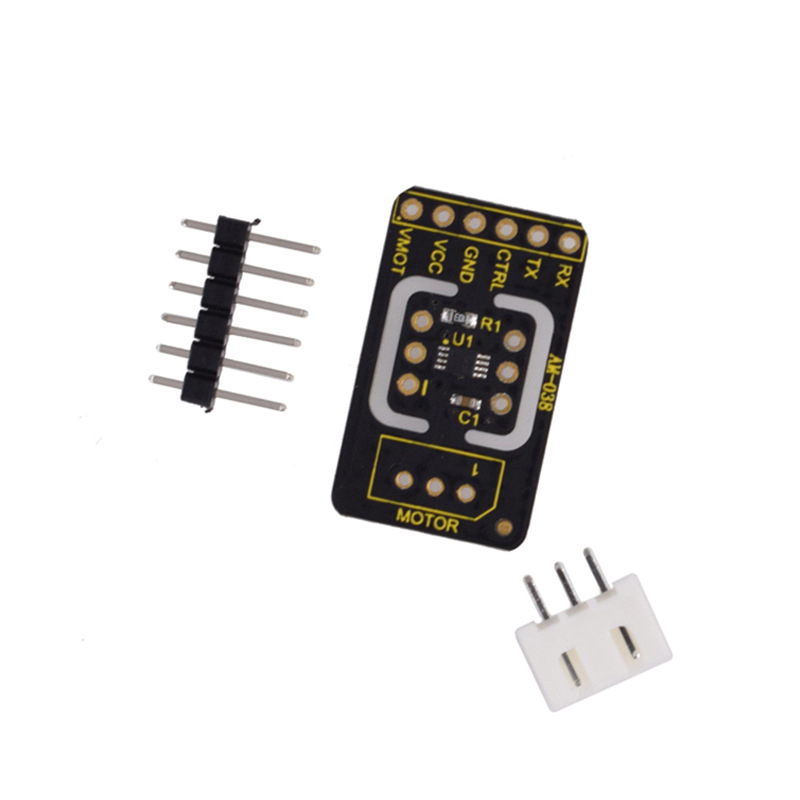

Product Show
