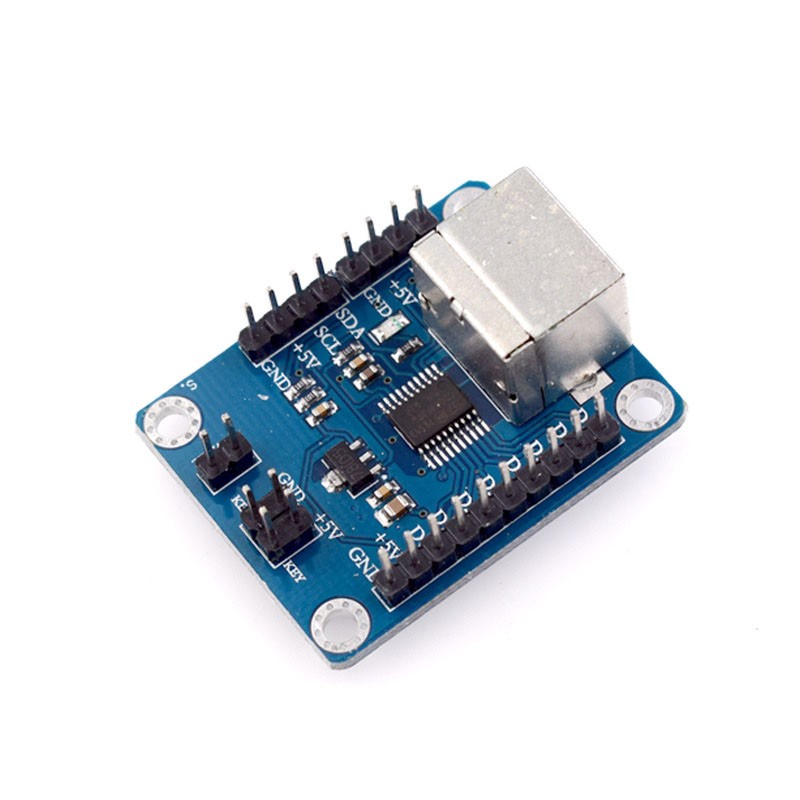

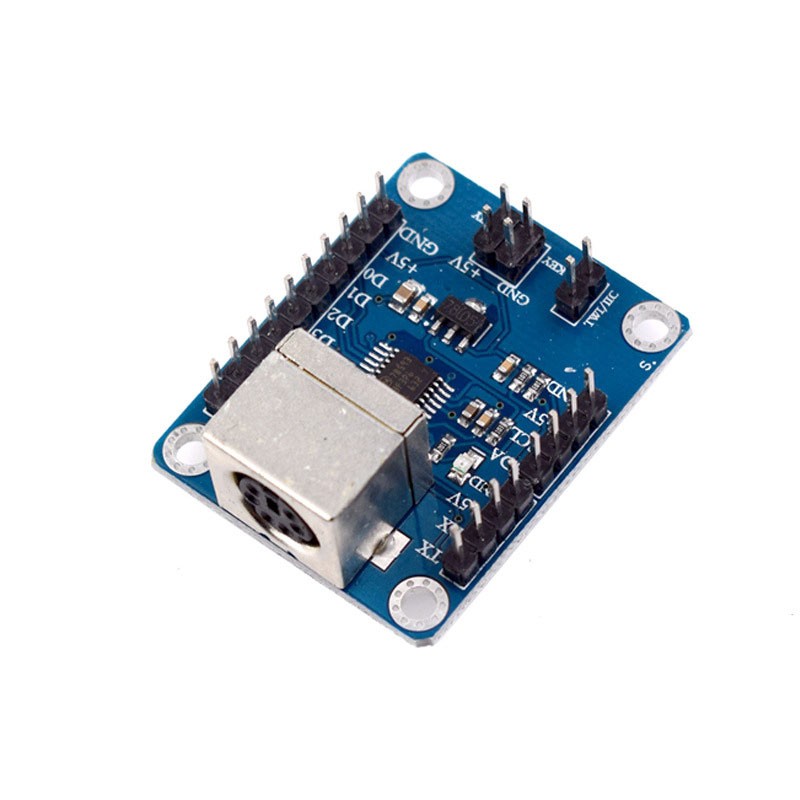

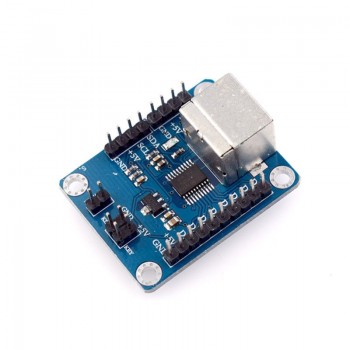

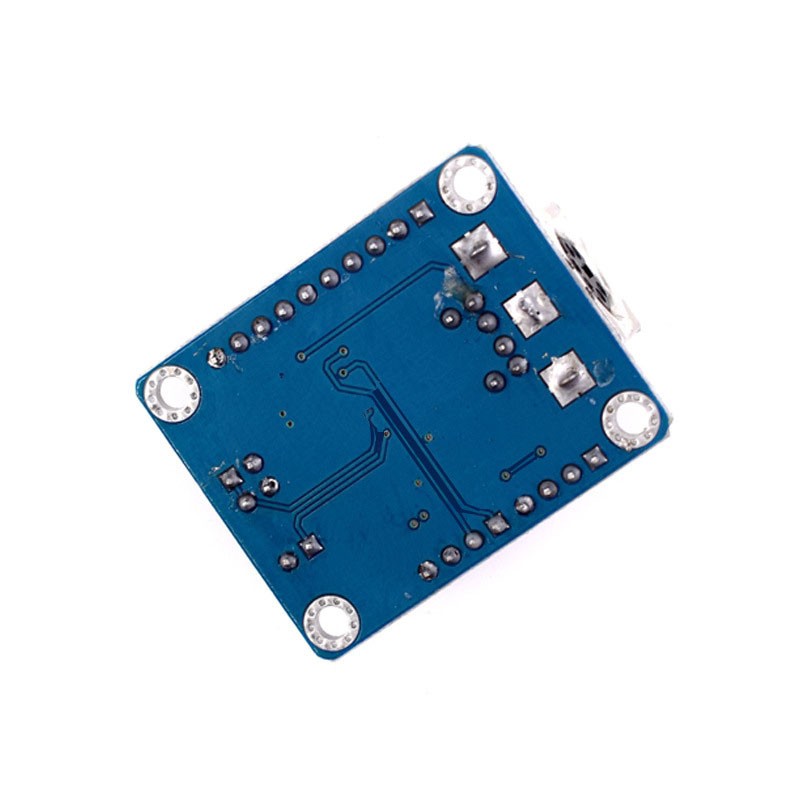

PS2 keyboard module TWI/IIC keyboard socket module PS2 interface keyboard driver development board

Product Parameters

Charging voltage: DC7-12V

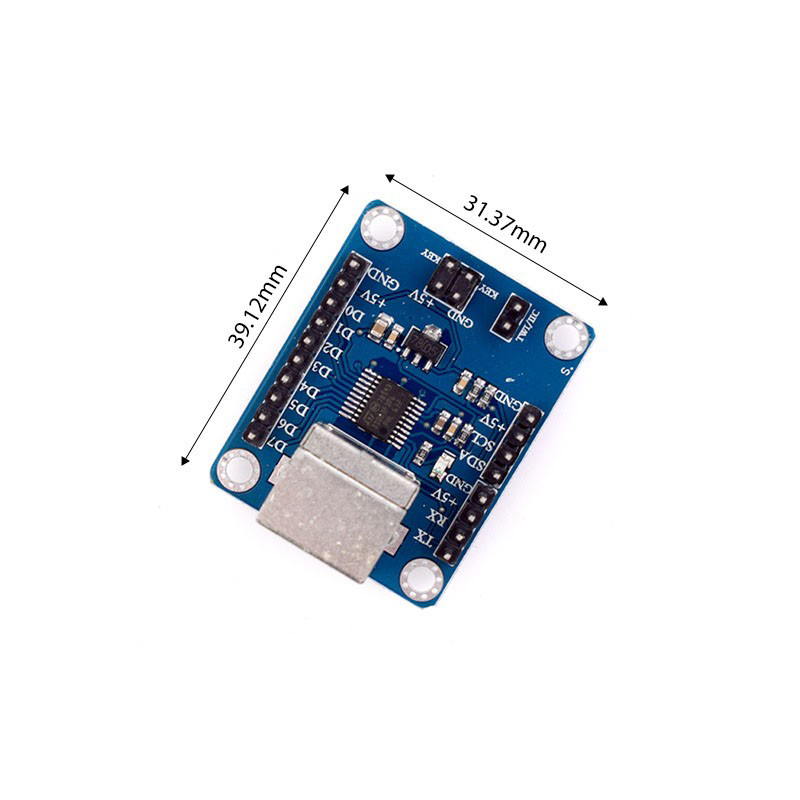

Product size: 31 * 39MM

Product features: Convert PS2 protocol to TWI/IIC, UTRT， Add button status detection to the parallel port, making it more widely applicable in various scenarios

Application scope: Robots, electronic products, electronic experiments

Product Introduction

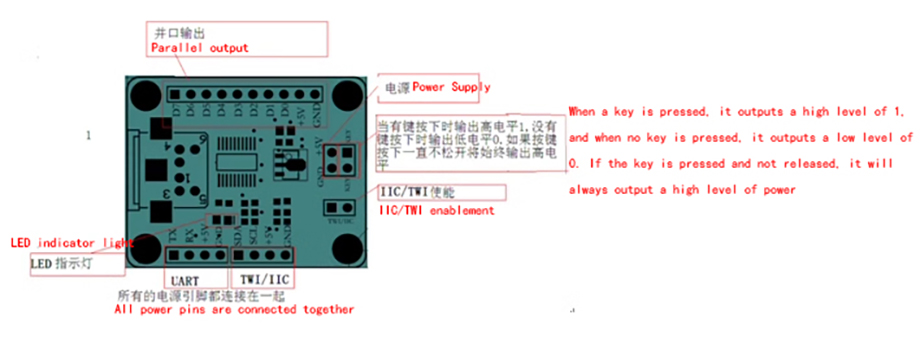

1. PS2 keyboard driver module, using microcontroller serial port, parallel port, TWI/IIC can work simultaneously. If there is no slave connected to the IC/TWI bus, please remove the short-circuit cap on the module, otherwise the module will not work properly.

2. Working principle

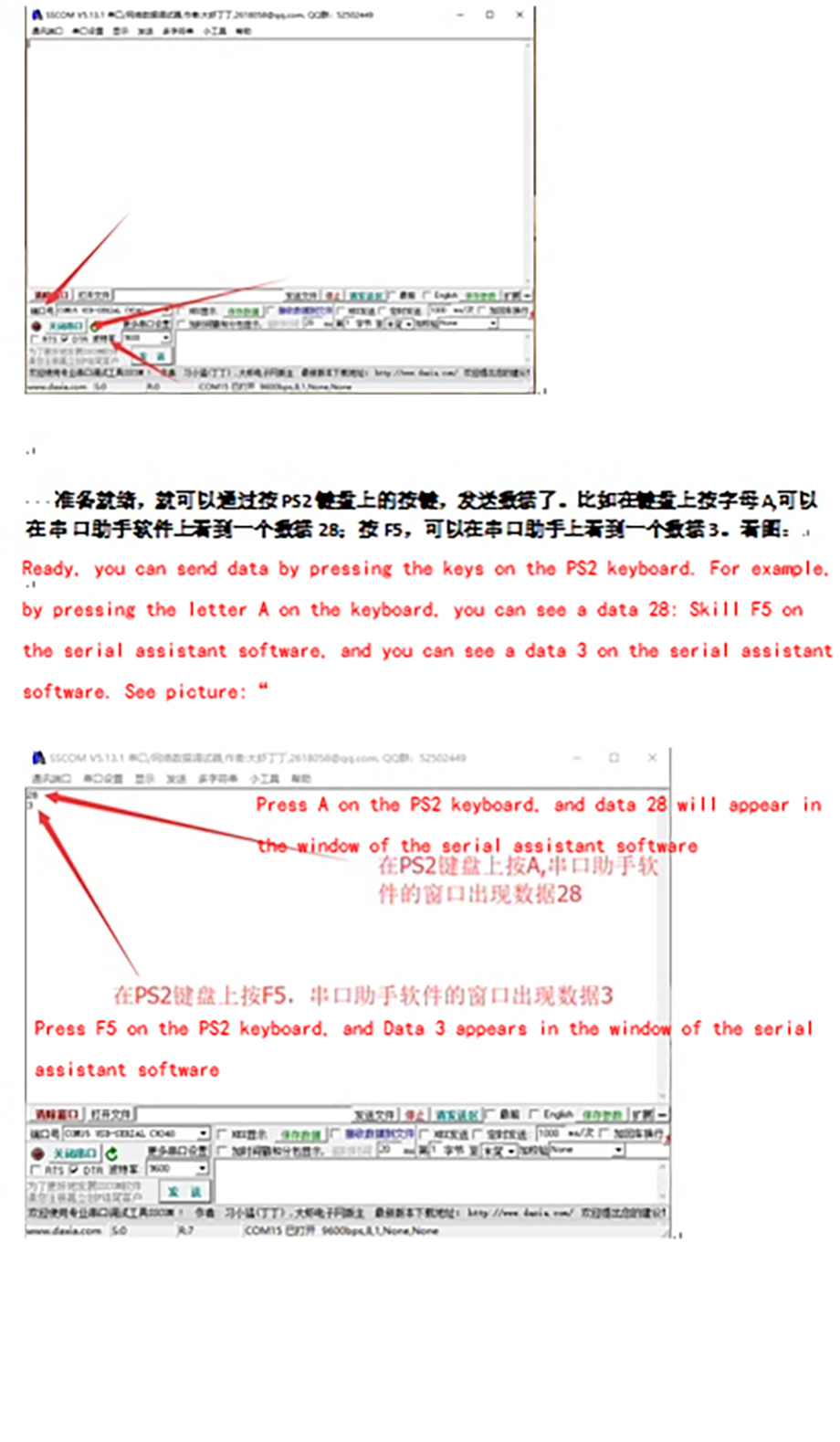

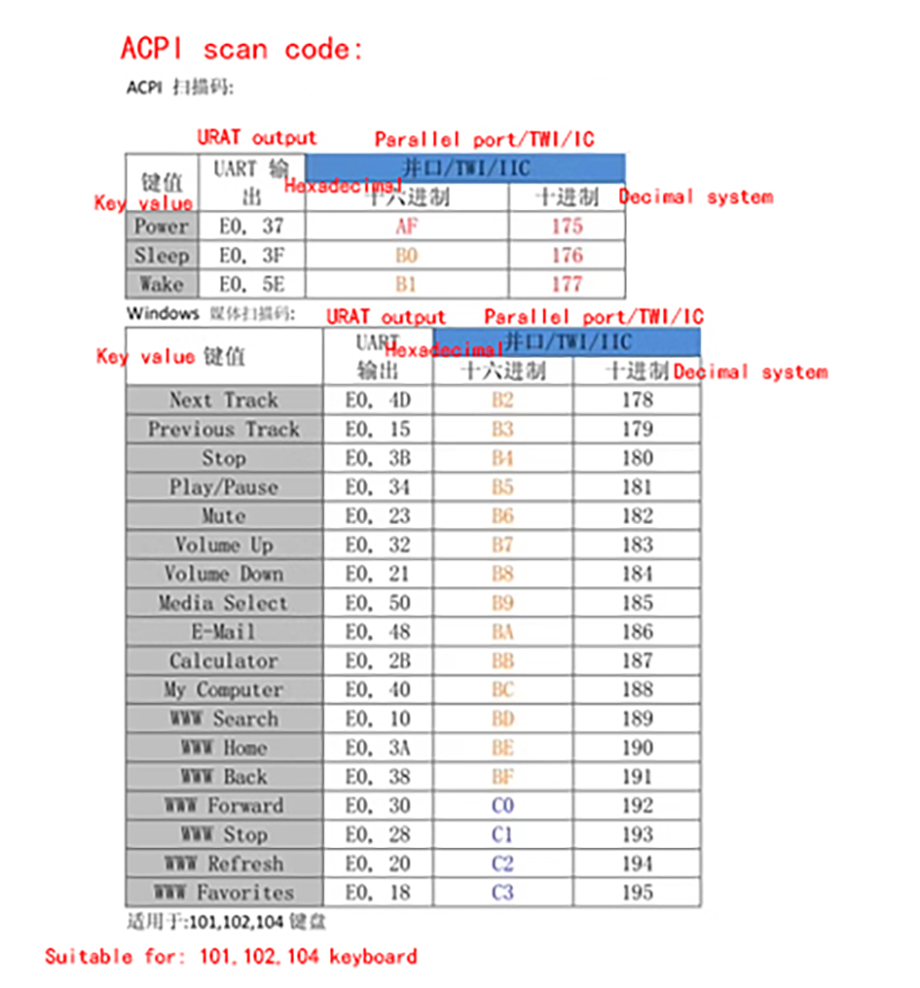

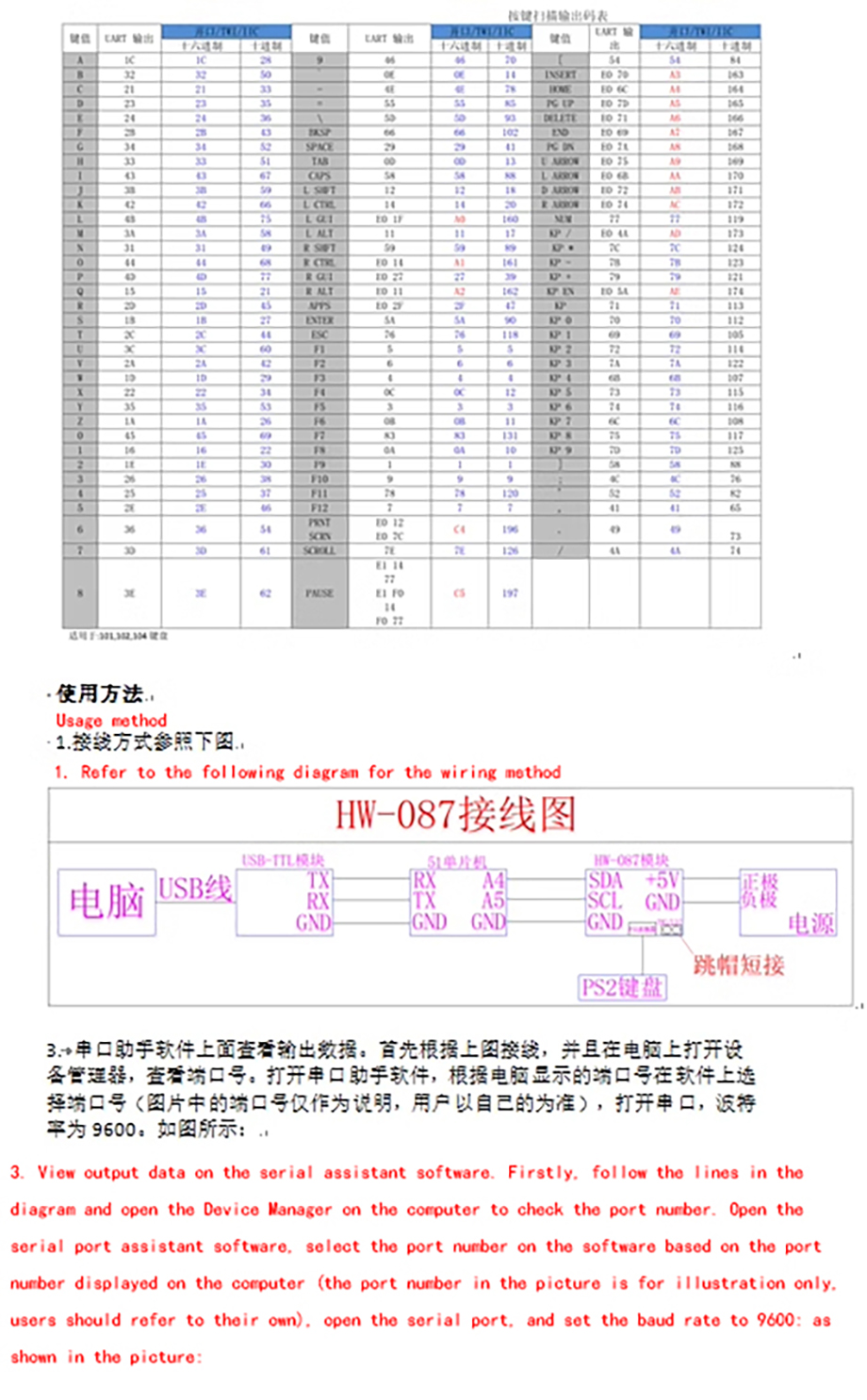

The PS2 driver module uses a MUC to continuously retrieve and read data from the PS2 keyboard. When a button is pressed, the LED on the module flashes. At the same time, the PS2 driver module will transmit the obtained key values through serial port, parallel port, or TWI/IC (if TWIIC cannot be used, the TWI/IIC enable short-circuit cap on the module should be removed). For example, when the button "A" is pressed, the serial port (D7-D0 output) outputs "0X1C" and the parallel port outputs "0X1C", while the TWI/IC outputs "0X1C" (data output is only available when using TWI/IIC). Please refer to the figure below for the specific output scan code.

Product Functions

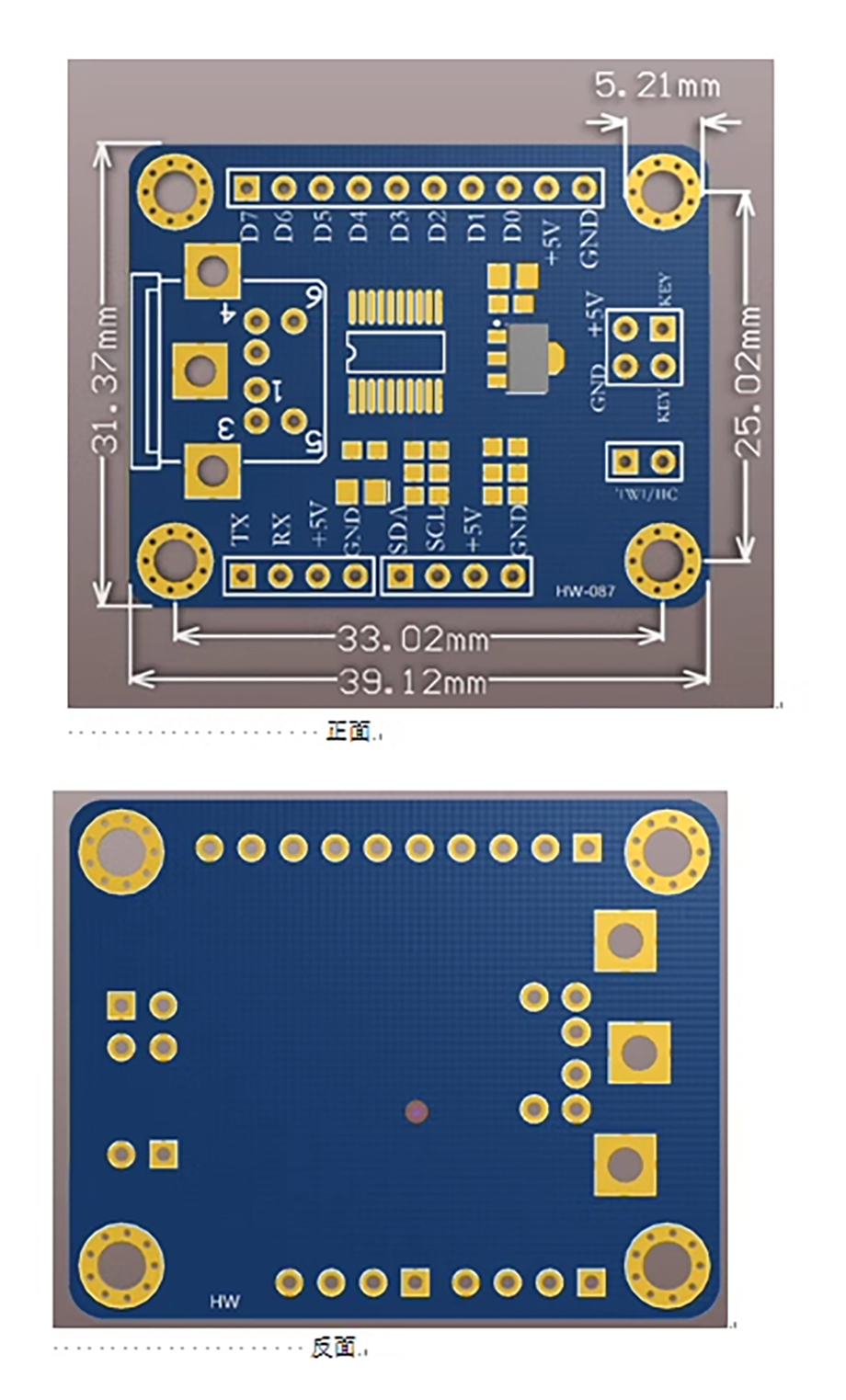

Product Size
