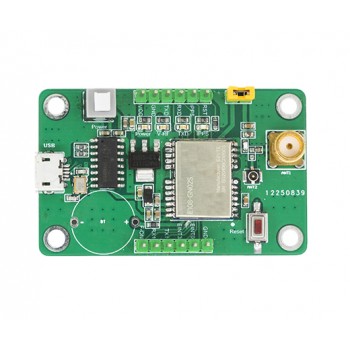

E108-GN02S-TB GNSS Multimode Satellite Positioning Module Development and Testing Kit

Product Descriptions

E108-GN02S-TB is a GPS positioning kit based on E108-GN02S, which can significantly reduce the user's development cycle and support BDS/GPS/GLONASS/ALILEO/QZSS/SBAS.

Product Features

• Support BDS/GPS/GLONASS/GALILEO/QZSS/SBAS multi system joint positioning and single system independent positioning;

• D-GNSS differential positioning, A-GNSS assisted positioning, ephemeris prediction, DR integrated navigation application, with a fastest data update rate of 10Hz;

• 32-bit application processor, with a maximum frequency of 133MHz, supporting dynamic frequency adjustment;

• Support PPS output;

• Built in reset controller; Supports UART, SPI, I2C, GPIO;

• RTC: Supports 32.768 KHz ± 20 ppm crystal oscillator, 1.1V RTC clock output, supports external signal wake-up;

• Output format: Supports NMEA0183 V4.1 and earlier versions, with a maximum fixed update frequency of up to 10Hz;

• High sensitivity: capture cold start -149dBm, hot start -162dBm, tracking -166dBm;

• Ultra low power consumption: Capture 30mA, track 20mA;.

Product Applications

• Vehicle positioning and navigation equipment;

• Wearable devices, such as GPS trackers, etc;

• Drone positioning, industrial computers, etc;

• Industry equipment with a demand for GNSS positioning or navigation;

Specifications
