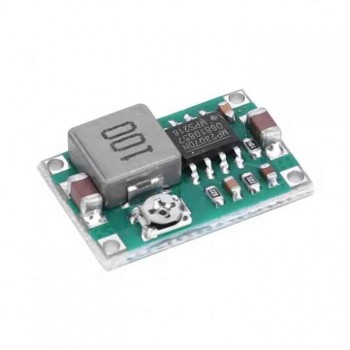

Mini360 aircraft model power supply step-down module Ultra-small power module Vehicle power supply exceeds LM2596
Manufacturer
Manufacturer Product Number
MINI360
Description
Mini360 aircraft model power supply step-down module Ultra-small power module Vehicle power supply exceeds LM2596
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Parameters Module Type: Non-isolated Buck Rectification Method: Synchronous Rectification Input Voltage: 4.75V-23V Output Voltage: 1.0V-17V Output Current: Peak 3A, Continuous 1.8A Conversion Efficiency: 96% Switching Frequency: 340kHz Output Ripple: 3mV (no-load) Load Regulation: ±0.5% Voltage Regulation: ±2.5% Operating Temperature: -40°C to +85°C Overtemperature Protection: Automatic power-off at 85°C Reverse Polarity Protection: Measured 12V/3A Dimensions: 17mm*11mm*3.8mm (L*W*H) |
| Product Description The 360 model aircraft power module is a step-down power module that utilizes an integrated power inductor and synchronous rectification control chip for more stable output, compact size, and high efficiency. Applications: DY mobile power supplies, vehicle power supplies, communication equipment power supplies, and various applications with stringent requirements on size and weight (such as model aircraft). |
Product Description
| Model Name | MINI360 (Small-Size DC-DC Synchronous Rectification Step-Down Module) |
| Module Properties | Non-Isolated Step-Down |
| Rectification Method | Synchronous Rectification |
| Input Voltage | 4.75V~23V |
| Output Voltage | 1.0V~17V |
| Output Current | 3A Peak, 1.8A Continuous |
| Conversion Efficiency | 96% (for reference only) |
| Switching Frequency | 340kHz |
| Output Ripple | 30mV (no-load) |
| Load Regulation | ±0.5% |
| Voltage Regulation | ±2.5% |
| Operating Temperature | -40°C~85°C |
| External Dimensions | 17*11*3.8mm (L*W*H) |
Product Photos
