MT6826S high precision high speed magnetic encoder magnetic induction Angle measurement sensor module

Product Description

MT6826S is a member of the 4th generation magnetic angle encoder IC family launched by MagnTek. It realizes 0°~360° angle measurement based on MagnTek's anisotropic magnetoresistive (AMR) technology and proprietary signal processing technology. The chip consists of a pair of AMR Wheatstone bridges and a signal processing ASIC circuit. As the magnetic field parallel to the chip surface rotates, the chip can output angle signals such as ABZ, UVW and PWM. Based on the excellent analog front-end circuit and advanced signal processing algorithm, MT6826 achieves a system delay of less than 10us and can support a maximum speed of 120,000 rpm. In order to overcome the accuracy loss caused by magnets and installation, MT6826S provides a simple client self-calibration function, which can achieve an angle accuracy of <±0.07° after calibration. MT6826S chip is suitable for various application scenarios with high-speed and high-precision control requirements, such as closed-loop stepper motors.

Product Features

FEATURES AND ADVANTAGES

-Based on AMR technology, it provides absolute angle measurement from 0° to 360°

- Operating voltage 3.3~5.0V

- Operating temperature -40℃~125℃

- System delay is as low as less than 2us, and can support a maximum speed of up to 120,000 rpm

- Incremental output ABZ supports 1~1024 lines of arbitrary resolution

- Incremental output UVW supports 1~16 arbitrary pole pairs

- Application: industrial sewing machines, closed-loop stepper motors

Product Parameters

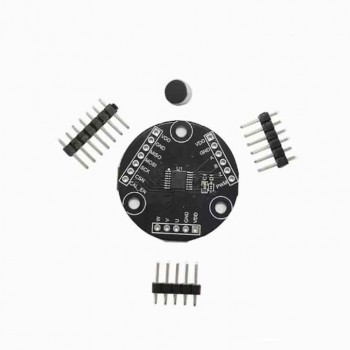

Actual image of the product

​
