BMP390L low power digital atmospheric pressure sensor module can replace the BMP388

Product Introduction

BMP390L is a newly developed industrial-grade digital pressure sensor developed by Bosch, which has the characteristics of extremely high temperature stability, low drift, low power consumption (sleep current is only 54uA, the highest power consumption measurement mode is 650uA) and low noise impact (less than 0.02Pa). The maximum error of the absolute accuracy of this product is less than 50Pa, and the relative accuracy can reach ±3Pa (equivalent to 25cm), which is 166.7% higher than the previous generation, ensuring the accuracy of the measurement. In addition, the new model also far exceeds the performance of the previous generation in long-term stability, with a long-term stability error of only 16Pa for 12 months. Accurate, stable and low-power height detection makes this product very suitable for indoor positioning and other applications where GPS signals cannot cover, and the product has a supply period of up to ten years, so it can be safely integrated into your device.

Product Features

High accuracy (absolute error <50Pa, relative accuracy <3Pa)

High long-term stability (±16Pa/year)

Extremely high temperature stability and low drift characteristics

Low power consumption (sleep current: 54uA, working current <650uA)

Product Applications

1. Vertical speed indication (e.g., ascent/descent speed)

2. GPS navigation enhancement (e.g., improved time to first fix, dead reckoning, slope detection)

3. Indoor navigation and positioning (indoor detection, elevator detection)

4. Outdoor navigation, leisure and sports applications

5. Weather forecast

6. Health care applications (e.g., spirometry)

7. Fitness applications (e.g., enhanced heat detection)

8. Augmented reality and virtual reality applications

9. Situational awareness

10. Industrial IoT devices

Product Parameters

Working voltage: 3.3-5V

Working current: sleep mode (54uA)/normal mode (357~650uA)

Interface mode: I2C/SPI

I2C address: 0x77 (default address)/0x76 (optional: SDO pin connected to GND)

Pressure sensing range: 300~1250 hPa

Relative accuracy: ±0.03hPa (equivalent to 25cm) (@700-1100hPa, 25-40°C)

Absolute accuracy: ±0.50hPa

Temperature offset coefficient: ±0.6Pa/K (@900hPa, 25-40°C)

Long-term stability: ±0.16hPa/year

ODR accuracy: ±2~±12%

Start-up time: 2ms

Working temperature range: -40℃~+85℃ (full-precision measurement can be used at 0℃~+65℃)

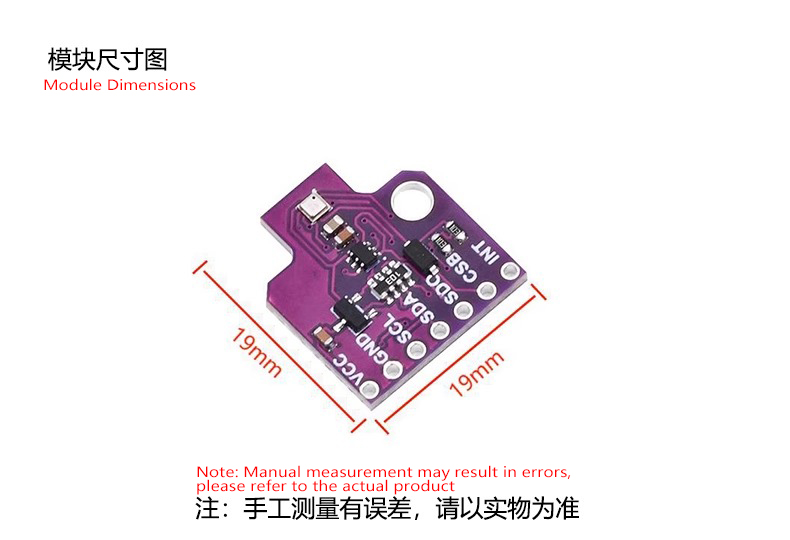

Module size: 19*19 (mm)

Delivery list

Fermion: BMP390L digital atmospheric pressure sensor (Breakout) x1

2.54-7P black single row pin header x1

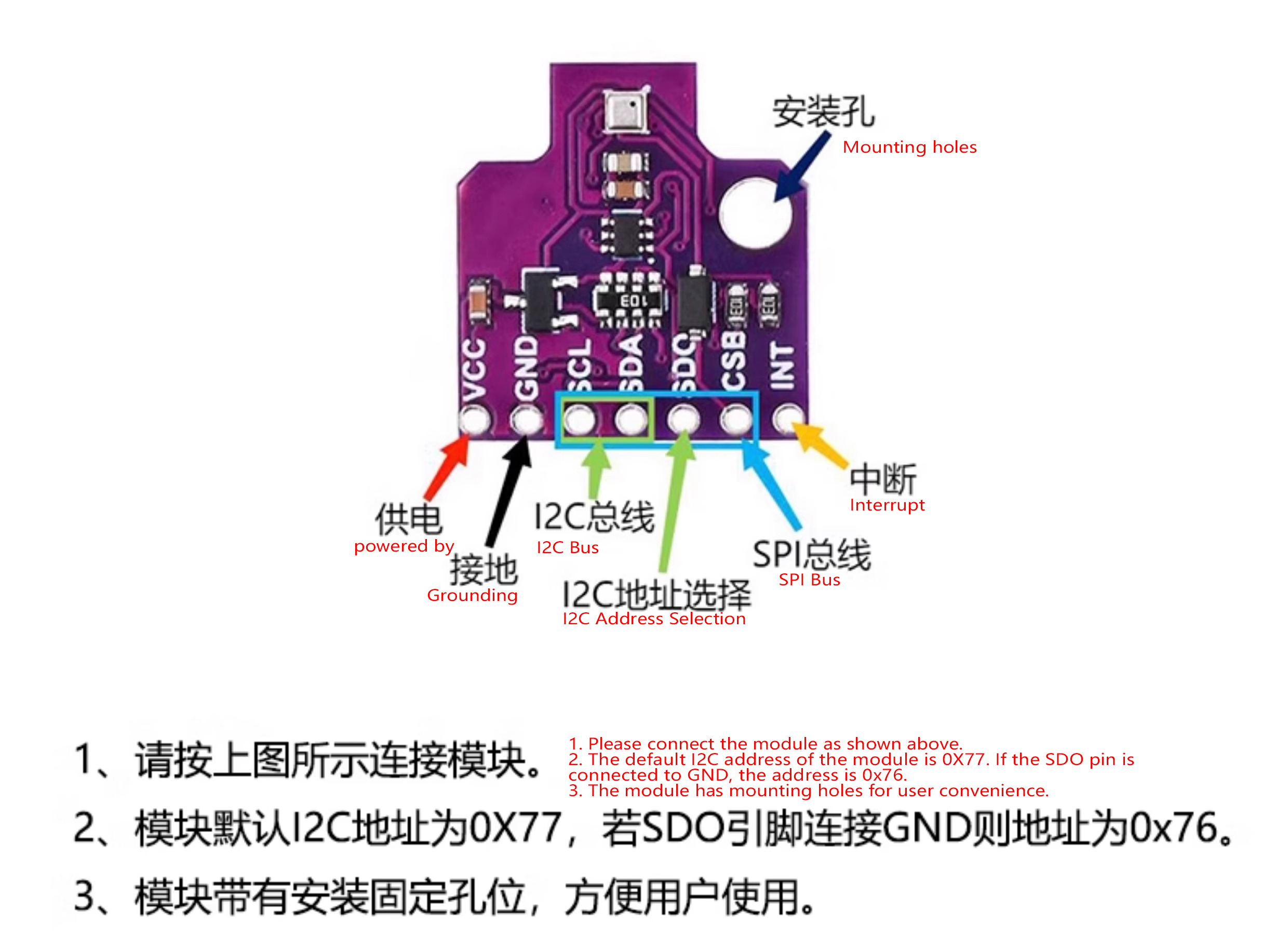

Product Instructions

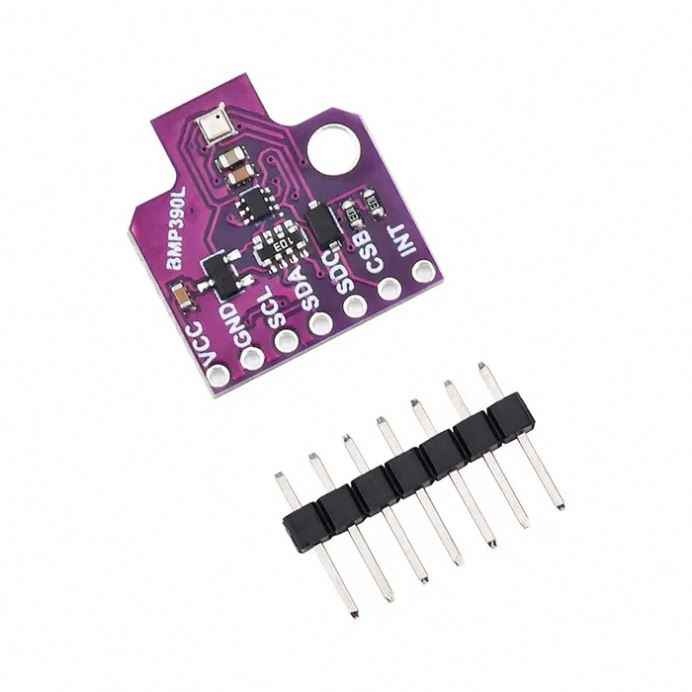

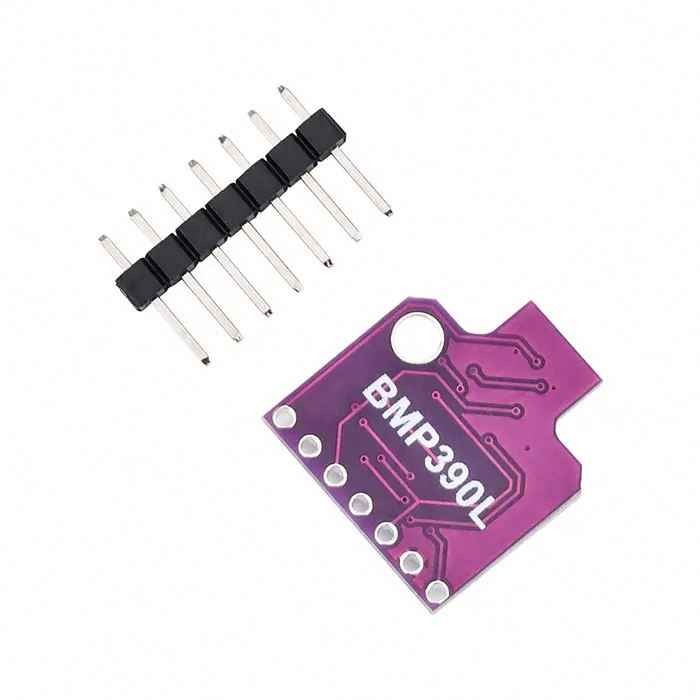

 Actual image of the product
