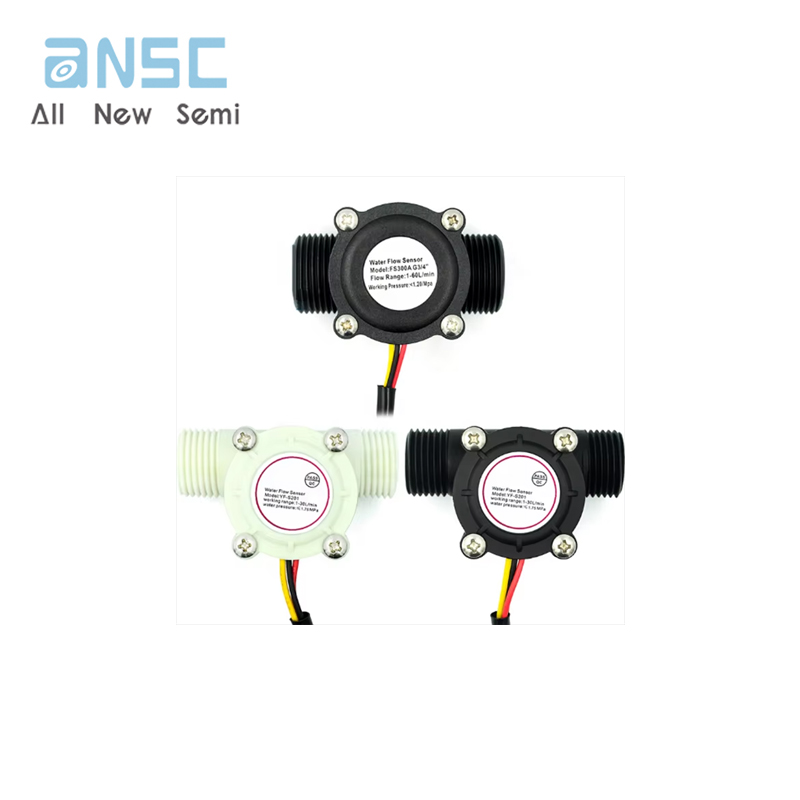

YF-S201 Water flow sensor G1/2 G3/4 interface FS300A Water dispenser Hall flowmeter
Manufacturer
Manufacturer Product Number
YF-S201
Description
YF-S201 Water Flow Sensor
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
1. This product is light and flexible in appearance, small in size, and easy to install.
2. The impeller is inlaid with stainless steel beads, which are always wear-resistant.
3. The sealing ring adopts an upper and lower force structure that never leaks.
4. The Hall element is imported and reinforced with waterproof rubber ring silicone to prevent water ingress and never age.
5. All raw materials meet ROHS testing standards
6. The standard G1/2 thread interface is simpler and more secure to install.
Product Introduction
|
The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly and a Hall sensor. It is installed at the water inlet end of the water heater to detect the water flow. When water passes through the water flow rotor assembly, signal and feeds it back to the controller, which determines the size of the water flow and regulates it. |
Precautions for use:
Severe impact and chemical corrosion are strictly prohibited.
Throwing or collision is strictly prohibited.
The medium temperature should not exceed 120 degrees
Product Parameters
|
Scope of application: |
Suitable for water heaters, card machines, automatic water vending machines, and other flow metering equipment! |
|
|
Basic parameters |
1. Minimum rated operating voltage |
DC4.5 5V-24V |
|
2. Maximum operating current |
15 mA (DC 5V) |
|
|
3. Operating voltage range |
DC 5～18 V |
|
|
4. Load capacity |
≤10 mA (DC 5V) |
|
|
5. Operating temperature range |
≤80℃ |
|
|
6. Operating humidity range |
35%～90%RH (no frost) |
|
|
7. Allowable withstand voltage |
Water pressure below 1.75Mpa |
|
|
8. Storage temperature |
-25～+ 80℃ |
|
|
9. Storage humidity |
25%～95%RH |

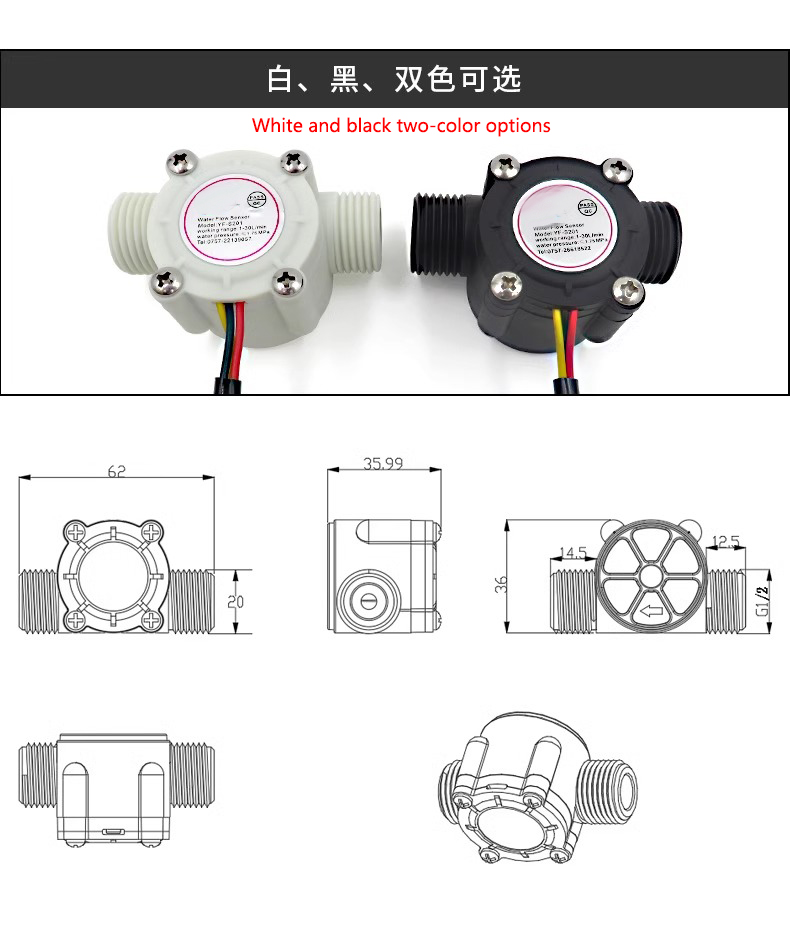

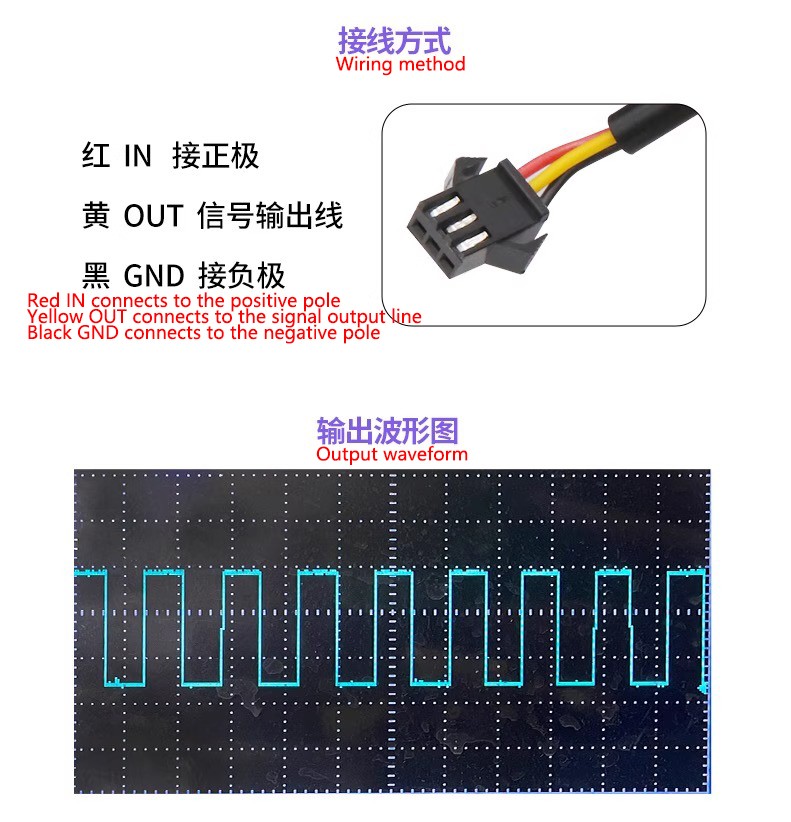

Product Photos
