L293D Motor Drive Shield Dual Motor Drive Expansion Board
Manufacturer
Manufacturer Product Number
L293D
Description
L293D Motor Drive Shield Dual Motor Drive Expansion Board
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| It is a good introduction to electronic production, and with the motor expansion board can be a good robotDevelopment platform. Here is a full-featured motor expansion board that can drive a variety of simple to slightly complex projects. This is a commonly used DC motor drive module, using 293DChip Small current DC motor drive chip. The pins are made compatible, which also facilitates quick and easy-to-use development by enthusiasts。 * 2 x 5V servo motor (servo) ports connect to Arduin's high-resolution high-precision timer - no jitter! * Up to 4 bidirectional DC motors and 4 PWM speed regulation (approx. 0.5% resolution) * Up to 2 stepper motors forward and reverse control, single/double step control, staggered or microstep and rotation angle control. * 4 H-bridges: The L293D chip provides .0.6A (peak 1.2A) current per bridge and has thermal power-loss protection, 4.5V to 36V. * Pull-down resistance ensures that the motor remains stationary when powered on. * Large terminal blocks make wiring easier (10 - 22AWG) and power. * With Arduino reset button. * 2 large terminal external power terminals to ensure the separation of logic and motor drive power supply. * Compatible with Mega, Diecimila, & Duemilanove. *Download easy-to-use Arduino software libraries for quick project development Scope of application: Arduin beginners, Arduin experimental equipment platform, Arduin interactive electronics, Arduin robots, etc. Features: Many functions, easy operation, powerful driver library support and function updates. Disadvantages: I/O usage is high When driving four motors at the same time (compared to the version with less Arduin I/O), the power is low. It can drive 4 DC motors or 2 stepper motors as well as 2 servos, supporting the latest Arduin UNO, Arduin Mega 2560 You can use it like this: Drive four DC motors and two servos Drive two DC motors and one stepper motor and two servos Drive two stepper motors and two servos |

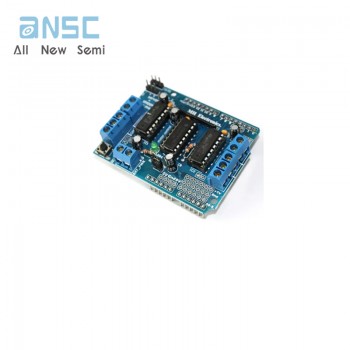

Actual image of the product
