Tmall Genie Candy and other smart speakers modified with AUX output stereo dedicated DAC decoding board PCM5102

Product Parameters

Product Name: PCM5102 Stereo DAC Decoding Board

Chip model: PCM5102

Supply voltage: DC5V

Type: I2S DAC decoder

Feature: Discharge stereo jack

Product Descriptions

1. The DAC module provides high-quality DAC for Raspberry Pi.

2. Using digital audio produces better results than onboard analog audio. The stereo jack has been soldered onto the circuit board.

3. Use PCM5102ADAC in conjunction with Raspberry Pi l2s interface

4. Applied to A/V receivers, DVD, BD players, HDTV receivers, requiring 2VRMS audio output.

5. Market leading low out of band noise, optional digital filter delay and performance, no need to isolate DC current capacitors.

6. Integrated high-performance audio phase-locked loop (PLL) with BCK reference for internally generated SCK

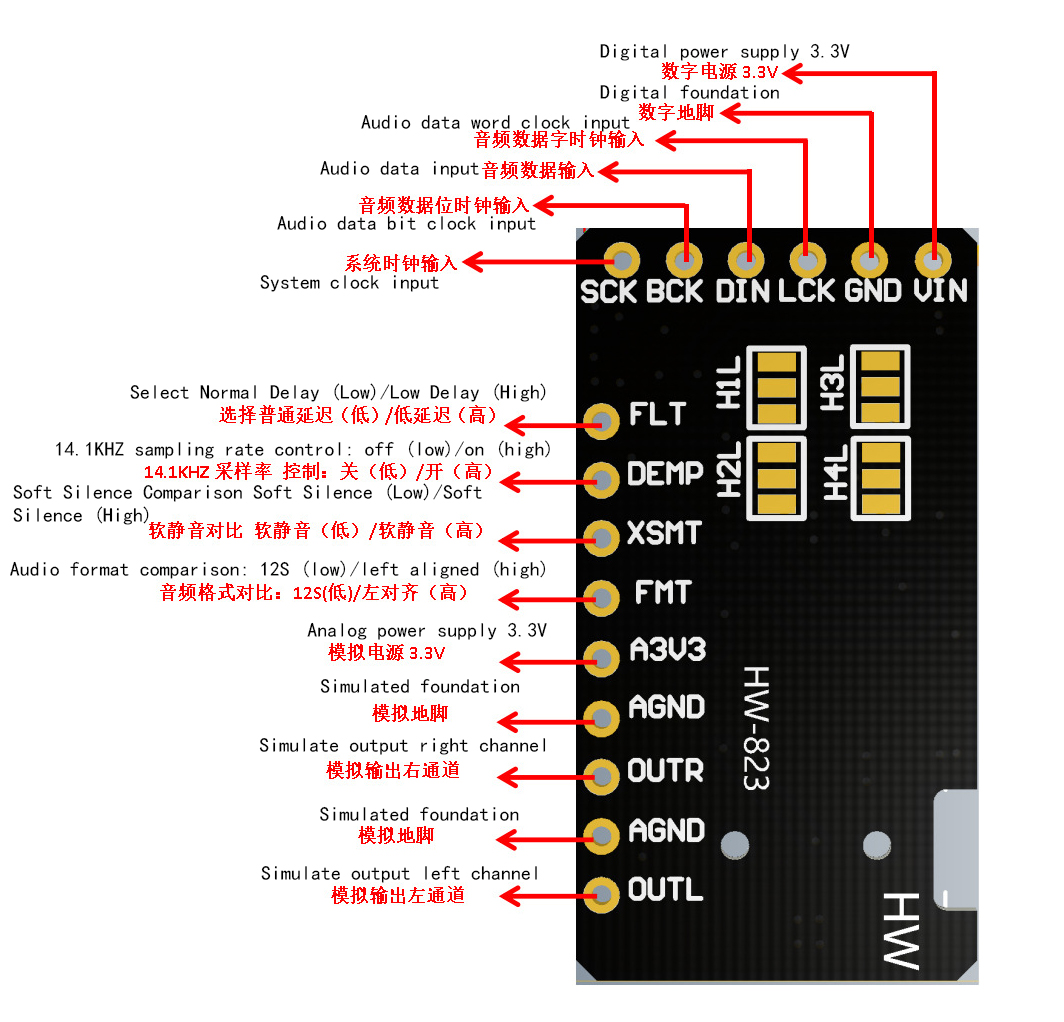

Product Functions

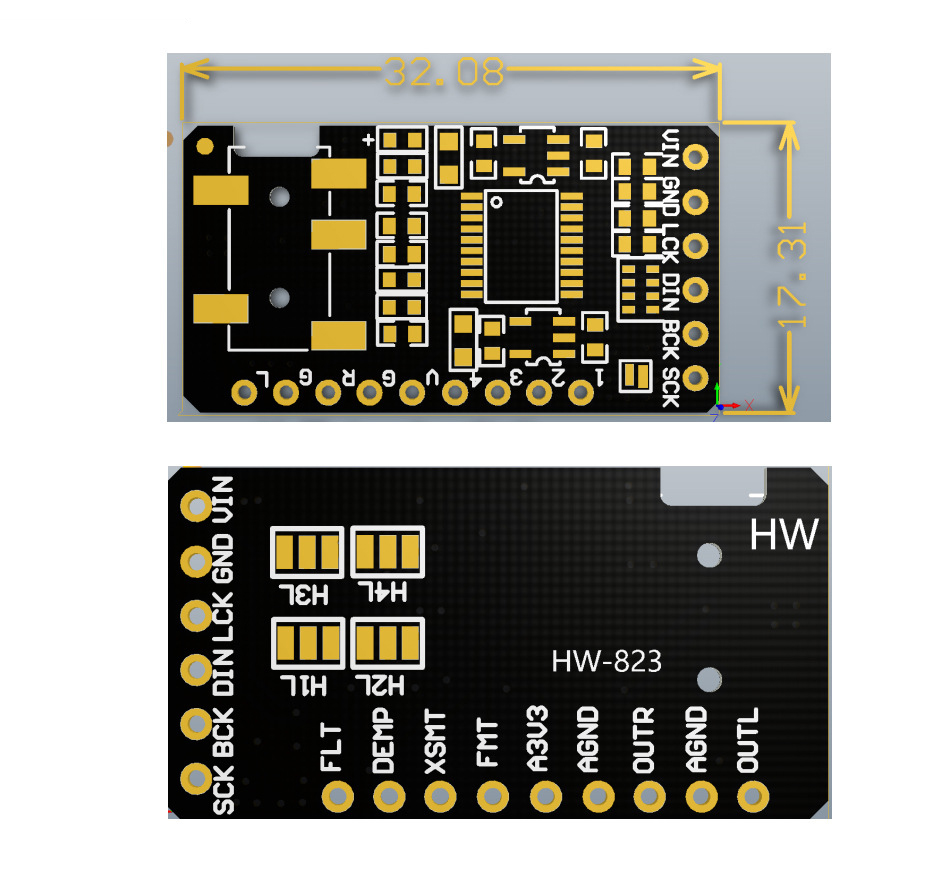

Product Size

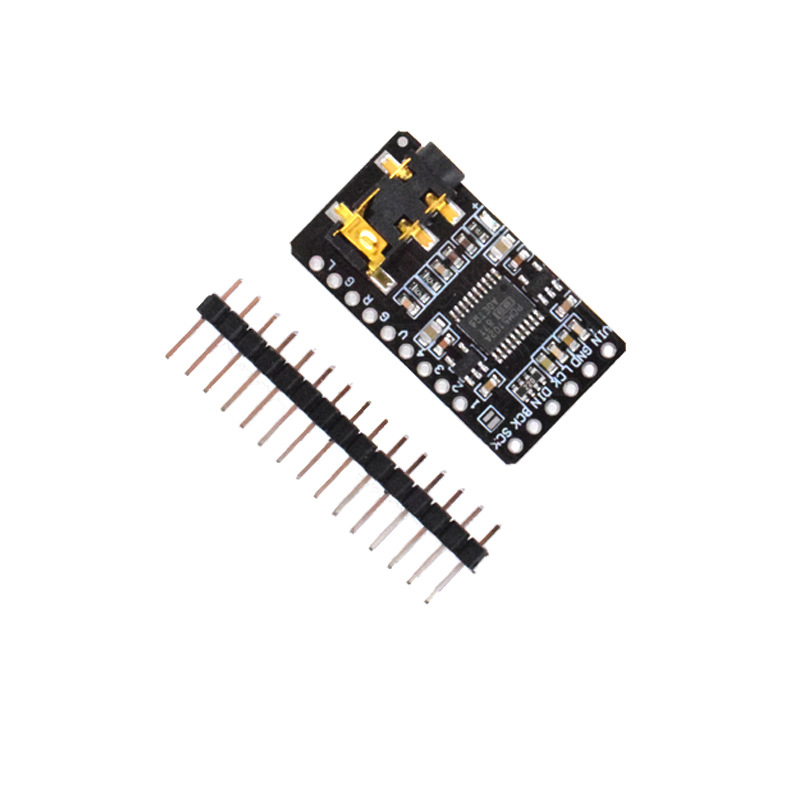

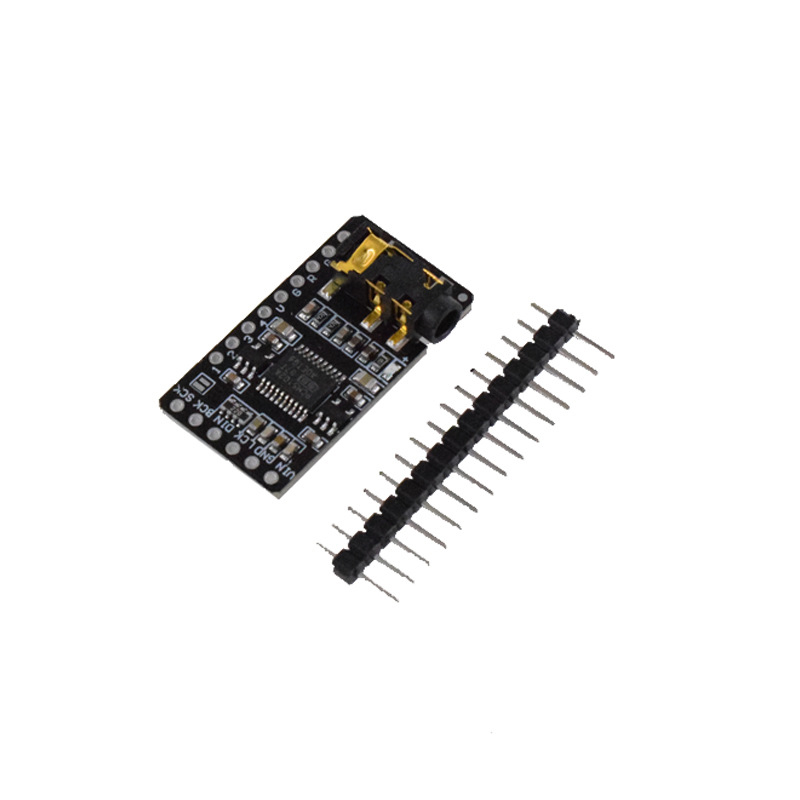

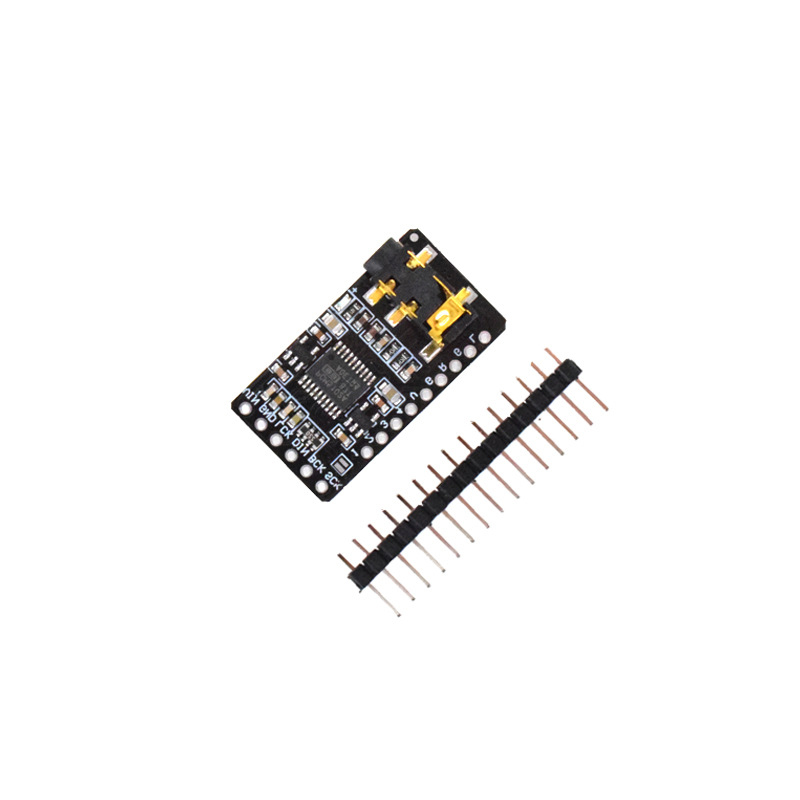

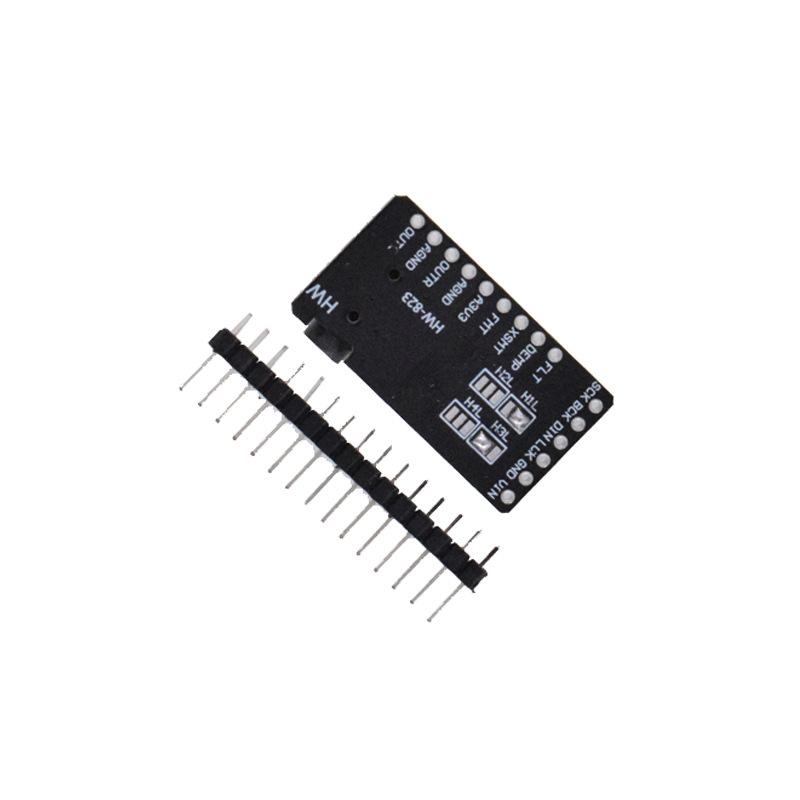

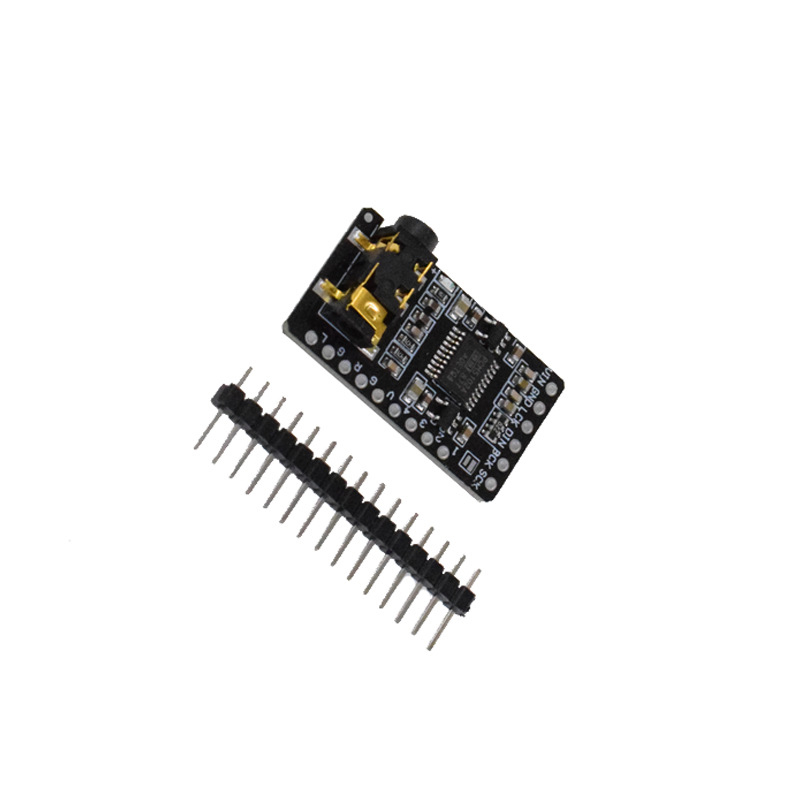

Product Show
