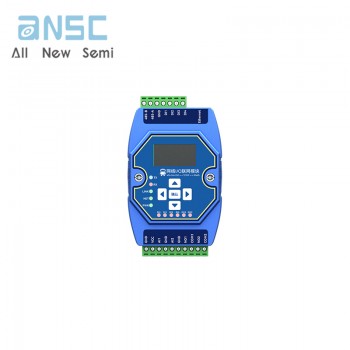

Hot selling original stock sale [4DI+2AI+2D] ME31-AAAX4220 Network I/O Networking Module

Product Descriptions

ME31-AAAX4220 is equipped with 2 channel A-type relay outputs and 2 channel analog inputs (0-20mA/4-20mA), and 4 channel dry contact input detection,supports Modbus TCP protocol or Modbus RTU protocol for acquisition and control and can be used as a simple Modbus gateway (automatically send commands with non-local Modbus addresses through the serial port/network port).

Product Features

 Good for standard Modbus RTU protocol and MODBUS TCP protocol;

 Work with various configuration software/PLC/touch screen；

 RS485 acquisition control I/O；

 RJ45 acquisition control I/O，support 4 channel master access；

 Support OLED display screen to display status information, and device parameters can be configured through buttons;

 2 channel analog inputs（0-20mA/4-20mA）；

 4-channel switch input DI (dry node) ；

 2 channel switch output DO（A-type relay）；

 Switch output (DO) supports level mode, pulse mode, follow mode, reverse follow mode, and trigger flip mode;

 Support custom Modbus address settings；

 Support 8 common baud rate configurations ；

 DHCP and static IP；

 DNS function, domain name analysis；

 Support input output linkage.
