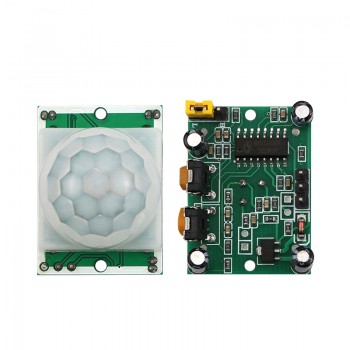

Spot HC-SR501 Human Infrared Induction Module Pyroelectric Infrared Sensor Quality Assurance
Manufacturer
Manufacturer Product Number
HC-SR501
Description
HC-SR501 Human Infrared Induction Module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Spot HC-SR501 Human Infrared Induction Module Pyroelectric Infrared Sensor Quality Assurance
Product Descriptions：
-
The D-SUN PIR human infrared sensing module is an automatic control product based on infrared technology. High sensitivity, strong reliability, ultra-low power consumption, and ultra-low voltage working mode. Widely used in various types of automatic induction electrical equipment, especially in automatic control products powered by dry batteries
-
Electrical parameters
|
PRODUCT MODEL |
HC -- SR501 Human Sensing Module |
|
Working voltage range |
DC voltage4.5-20V |
|
Static current |
<50uA |
|
Level output |
High 3.3 V/Low 0V |
|
Trigger method |
L cannot be triggered repeatedly/H repeated triggering (default repeated triggering) |
|
Delay Time |
0.5-200S (adjustable) can be produced within a range of a few seconds to tens of minutes |
|
Lockdown time |
2.5S (default) can create a range from a few seconds to tens of seconds |
|
External dimensions of circuit board |
32mm*24mm |
|
Sensing angle |
<100 degree cone angle |
|
Working temperature |
-15-+70 degrees |
|
Sensing lens size |
Diameter: 23mm (default) |
