4-channel 5V low-level solid-state relay module with fuse solid-state relay 250V2A

Product Parameters

Input: 5VDC

Current: 160MA

Input control signal voltage:

The low-level trigger of this module is valid, and the triggering conditions are as follows

Low level 0-2.5V triggers the relay to work after the load circuit is energized;

High level 3.3-5V triggers the relay to disconnect the load circuit and cut off power.

Load voltage: 250VAC

Load current: 2A

Product Introduction

4-channel 5V low-level solid-state relay with fuse 250V 2A, can be used for circuit switch control.

 Product Features

(1) The product has short-circuit protection, overload protection, and overheating protection functions

(2) Four relays can individually trigger the control load circuit, and each relay is equipped with a status indicator light. When the relay is engaged, the LED light will turn on, otherwise it will not turn on

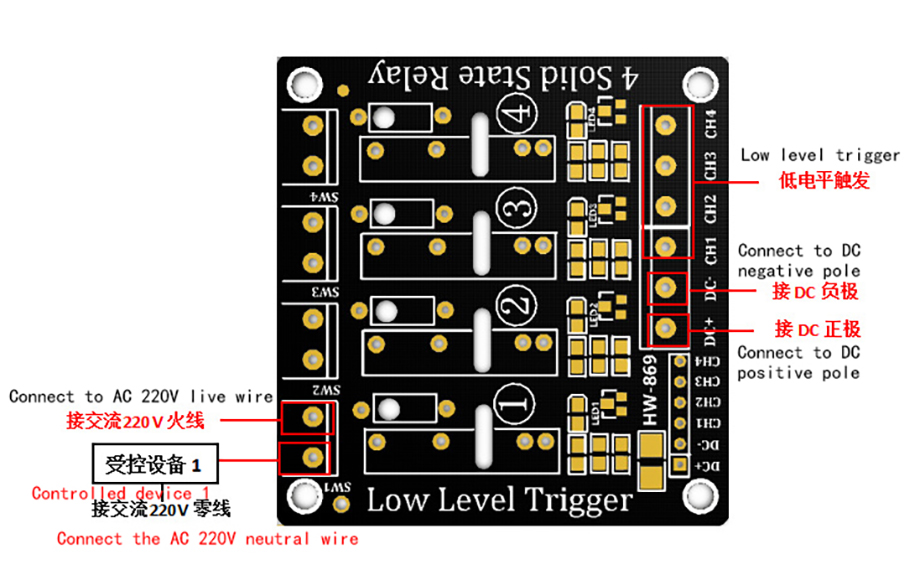

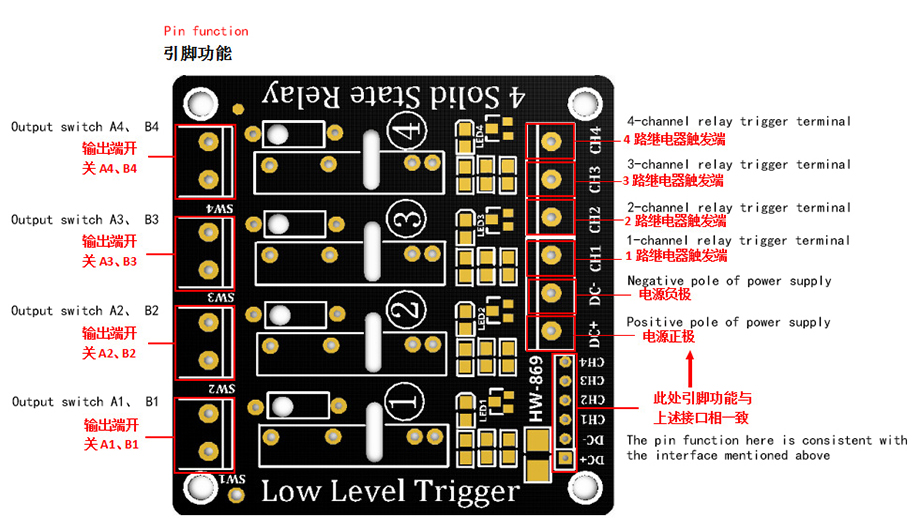

Product Functions

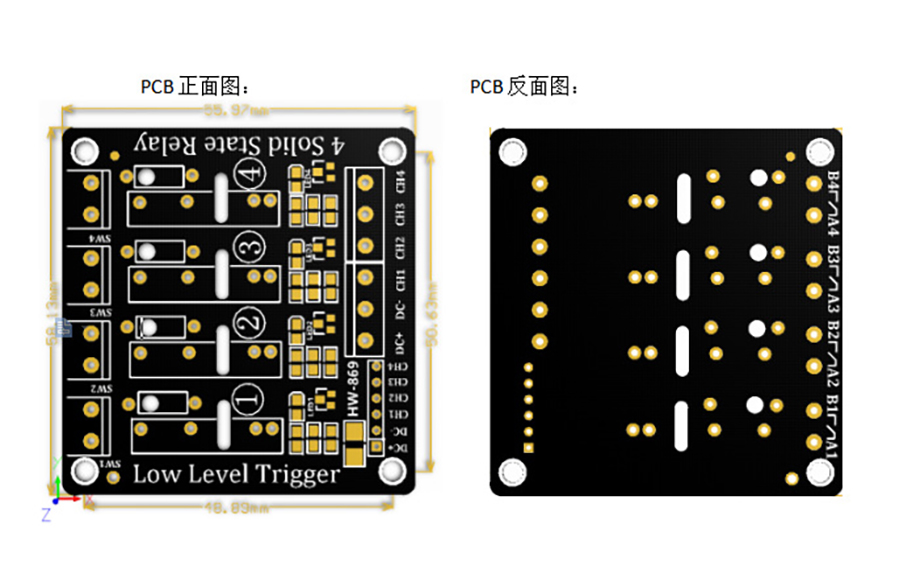

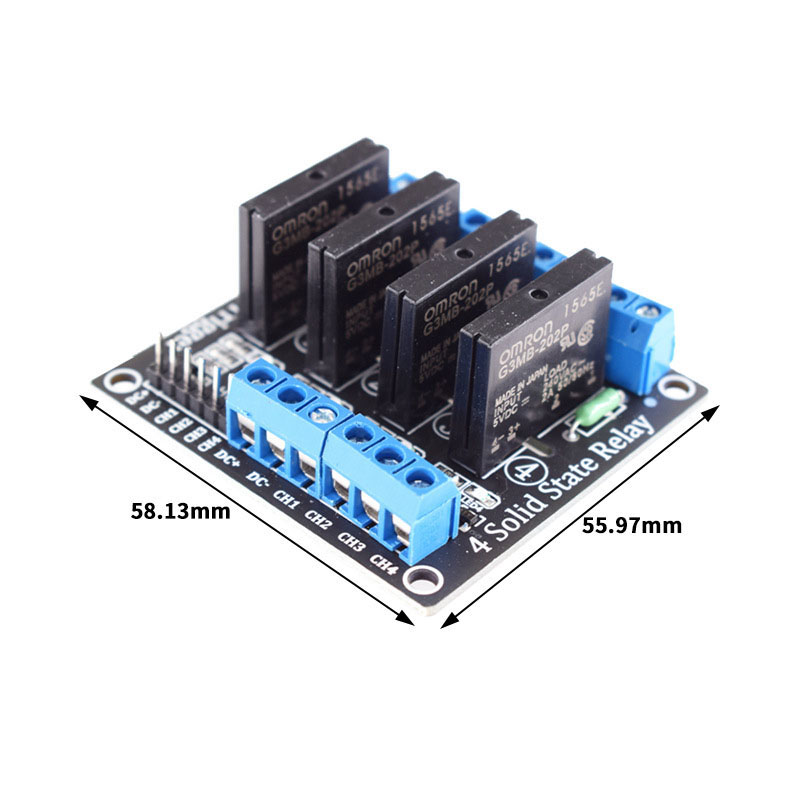

Product Size

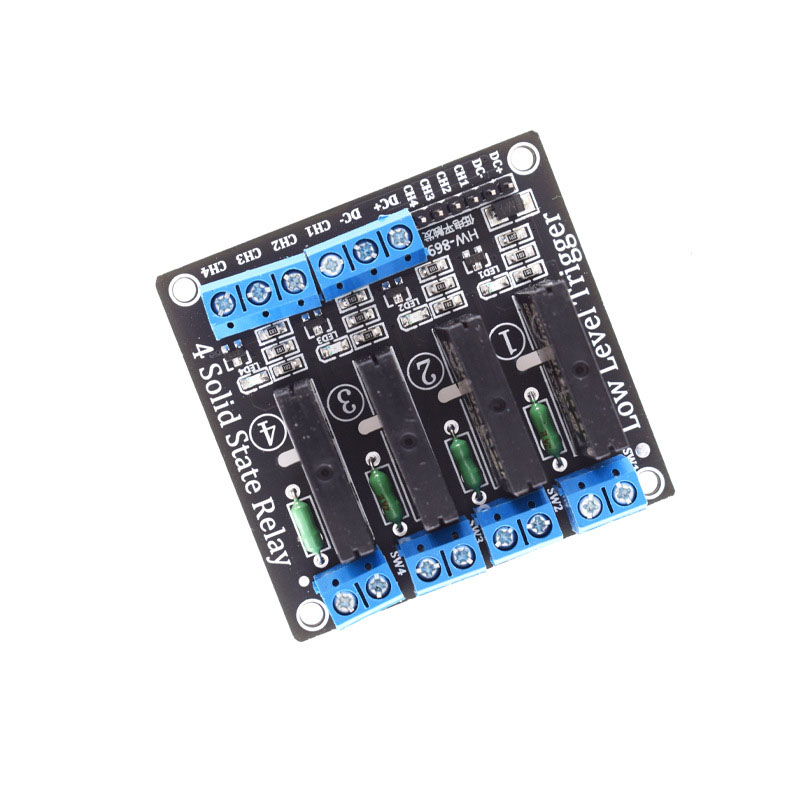

Product Show
