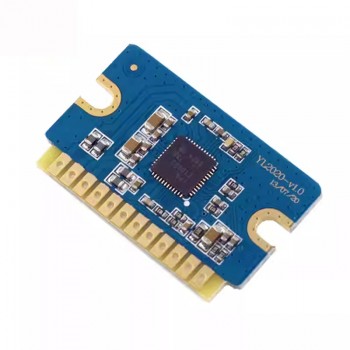

20W+20W D-class digital amplifier board 12V-24V mini amplifier module with good sound effects
Manufacturer
Manufacturer Product Number
M322
Description
20W+20W D-class digital amplifier board
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Parameters
Power supply voltage: DC-12V-22V
Chip voltage range: DC8V-26V
Rated power: 20W+20W
Output impedance: 4-8 ohms
Peak power: 35W+35W
Maximum dynamic current: 4A
Static current: Gain: 35db
Output impedance: approximately 20K ohms
PCB size: Length 38mm * Style 20mm * Thickness 2.8mm
Pin: Width: 2.54 * 12, Length: 4mm
Product Introduction
This amplifier module adopts the chip design of TI company in the United States, with perfect protection functions such as undervoltage, overcurrent, output short circuit, etc., and excellent sound quality! Through 100 full power output short-circuit tests, quality assurance!!!
In the design, ports such as shutdown control and mute control are reserved, and there is an output fault report output, which is more convenient for applications in secondary development!
