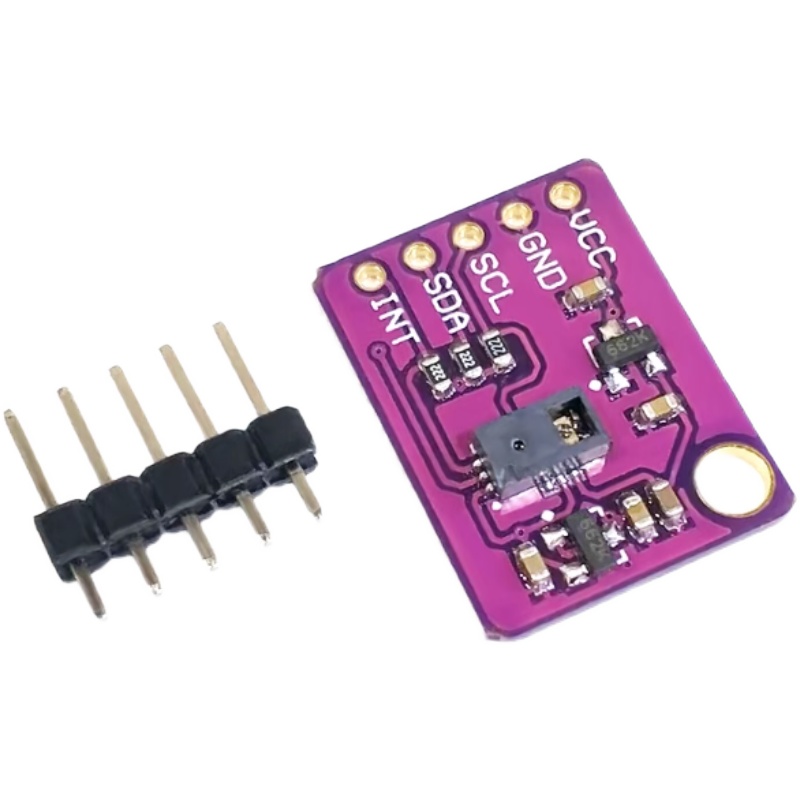

PAJ7620U2 gesture recognition sensor module with 9 built-in gesture recognition/IC interfaces/intelligent recognition

Product Introduction

This product is based on the PAJ7620U2 gesture recognition sensor, which can recognize 9 different directions of gestures, including up, down, left, right, front, back, clockwise, counterclockwise, and swing. The gesture recognition module uses the I12C interface and can be programmed and controlled using the corresponding Arduino library functions. The signal returned by the gesture recognition module can be used as the control signal received by the robot, thereby achieving control of the robot. The built-in recognition algorithm is quite limited and can free hands from stiff buttons. Gesture recognition sensors can be used in non-contact control scenarios such as non-contact mice, smart homes, car click device control, robot interaction, etc.

Product Features

1.9 types of gesture recognition

2. Interface: IC interface communication protocol

3. Working voltage: 3.3V-5.0V

4. The gesture speed ranges from 60 °/S to 600 °/S in normal mode and from 60 °/S to 1200 °/S in game mode

5. Environmental light immunity:<100k Lux

6. Working current: 3mA-10mA

7. Module size: 20mm * 15mm

Product Interface definition

1. GND: Negative input port of power supply

2. VCC: Positive input port of power supply

3. SCL: 12C clock port

4. SDA: 12C data port

5. INT: Interrupt output

Wiring port distance: 2.54mm (circular distance between two holes)

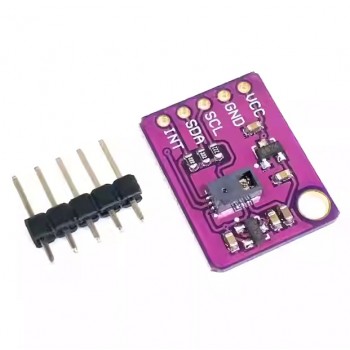

Product Photograph
