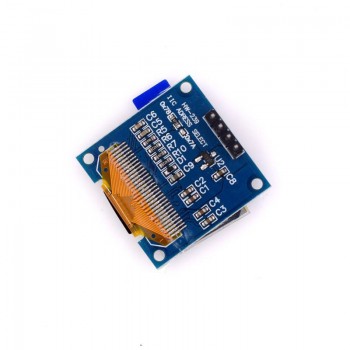

Factory direct sales of 0.96-inch white IIC communication 128 * 64 OLED LCD screen module in stock
Manufacturer
Manufacturer Product Number
M164
Description
0.96-inch white IIC communication 128 * 64 OLED LCD screen module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Parameters
Size 0.96 (INCH)
Type OLED
OLED driver chip SSD1306
Resolution 128 * 64 (PIXEL)
Module interface VCC-GND-SCL-SDA
Effective display area 21.744X10.864 (MM)
Module size 27.3X27.8 (MM)
Perspective>160 °
Working temperature -20 ° C~70 ° C Storage temperature -30 ° C~80 ° C
The working voltage is 3.3V/5V, and the power consumption is about 25MA when fully on and about 1.5MA when fully off.
Product Descriptions
This product is an OLED screen display controlled by an I ℃ bus, with a screen size of 0.91 inches, high resolution, low power consumption, and a working voltage supply of 3V-5V. It is compatible with 3.3V and 5V level logic and does not require a level conversion chip. The module is available in three colors: white, blue, and yellow blue.
Product Function
Pin Definition:
| PIN | 标号 Grade |
引脚说明 Pin Description |
| 1 | VCC | OLED电源正(3.3V~5V) OLED power supply positive (3.3V~5V) |
| 2 | GND | OLED电源地 OLED power ground |
| 3 | SCL | OLED IIC总线时钟信号 OLED IIC bus clock signal |
| 4 | SDA | OLED IIC总线数据信号 OLED IIC bus data signal |
Wiring Instructions
| 与 UNO 开发板连接 Connect with UNO development board |
与 Mega2560 开发板连接 Connect with Mega2560 development board |
||
| HW-239 | UNO单片机上 On the UNO microcontroller |
HW-239 | Mega2560 单片机 Mega2560 microcontroller |
| VCC | 5V | VCC | 5V |
| GND | GND | GND | GND |
| SCL | A5 | SCL | 21 |
| SDA | A4 | SDA | 20 |
