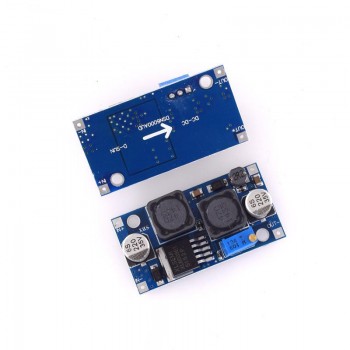

Hot selling power module DCDC boost module Isolation constant current constant voltage module Power amplifier boost power module

Product Descriptions

When the car starts, the voltage will be pulled down to below 7V or less, and the engine voltage can reach 15V or higher at high speeds. It is difficult for electrical appliances working at 12V to function properly. This automatic voltage boosting module solves this problem, and regardless of whether the input voltage is 5V, 12V, or 32V, the output can be stable at 12V.

Product Features

Ultra wide input voltage of 5V~32V;

Ultra wide output voltage of 1.25V~35V (with automatic voltage rise and fall, within the working range, any voltage input can be stabilized and any voltage output can be output);

Built in 4A high-efficiency MOSFET switch, achieving an efficiency of up to 94%; (LM2577 current is only 3A)

Ultra high switching frequency of 400KHz, with smaller ripple and volume. (LM2577 frequency is only 50KHz)

Product Application Areas

Applications with unstable voltage, such as automotive voltage stabilization, solar photovoltaic power generation, and wind power generation.

Product Parameter

Input range 3.8V~32V

Output range 1.25V~40V

Input current 3A (maximum), no-load 18MA (5V input, 8V output, no-load less than 18MA). The higher the voltage, the greater the no-load current

Conversion efficiency<94% (the greater the pressure difference, the lower the efficiency)

Switching frequency 400KHZ

Load adjustment rate ± 0.5%

Voltage regulation rate ± 0.5%

Working temperature -40 ° C~+85 ° C

Dimensions: 48MM * 25MM * 14MM (length * width * height)

Short circuit protection is not available (please install a fuse or protective circuit in the input)
