SC7A20H high-precision three-axis load force acceleration tilt Angle sensor module IIC/SPI transmission

Product Introduction

SC7A20H is a high-precision digital three-axis acceleration sensor chip with richer built-in functions, lower power consumption, smaller size and more accurate measurement.

The chip communicates with the MCU through the IC/SPI interface, and the acceleration measurement data is obtained in interrupt mode or query mode. The INT1 and INT2 interrupt pins provide a variety of internal automatic detection interrupt signals to adapt to a variety of motion detection occasions. The interrupt sources include 6D/4D direction detection interrupt signals, free fall detection interrupt signals, sleep and wake-up detection interrupt signals, single-click and double-click detection interrupt signals. The chip has a built-in high-precision calibration module to accurately compensate for the sensor's offset error and gain error. Four adjustable full-scale measurement ranges of ±2G, ±4G, ±8G and ±16G can flexibly measure external acceleration, and the output data rate can be selected between 1.56HZ and 4.434kHz.

The chip's built-in self-test function allows customers to detect system functions during system testing, eliminating complex turntable testing.

Product Features

• Wide voltage range 1.71V-3.6V

• 1.8V compatible with digital 10 ports

• Power supply current as low as 0.5uA@1.8V@1.56HZ in low power mode

• ±2G/±4G/±8G/±16G dynamic full range

• 12bit data output

• 12C/SPI digital output interface

• 6D/4D direction detection

• Free fall detection single-click detection and motion detection

• Programmable interrupt generation circuit embedded self-test function

• Embedded FIFO

• 10000g high G resistance

Product Applications

• Mobile phones and tablets

• Indoor navigation

• Image rotation

• Motion-activated user interface

• Games

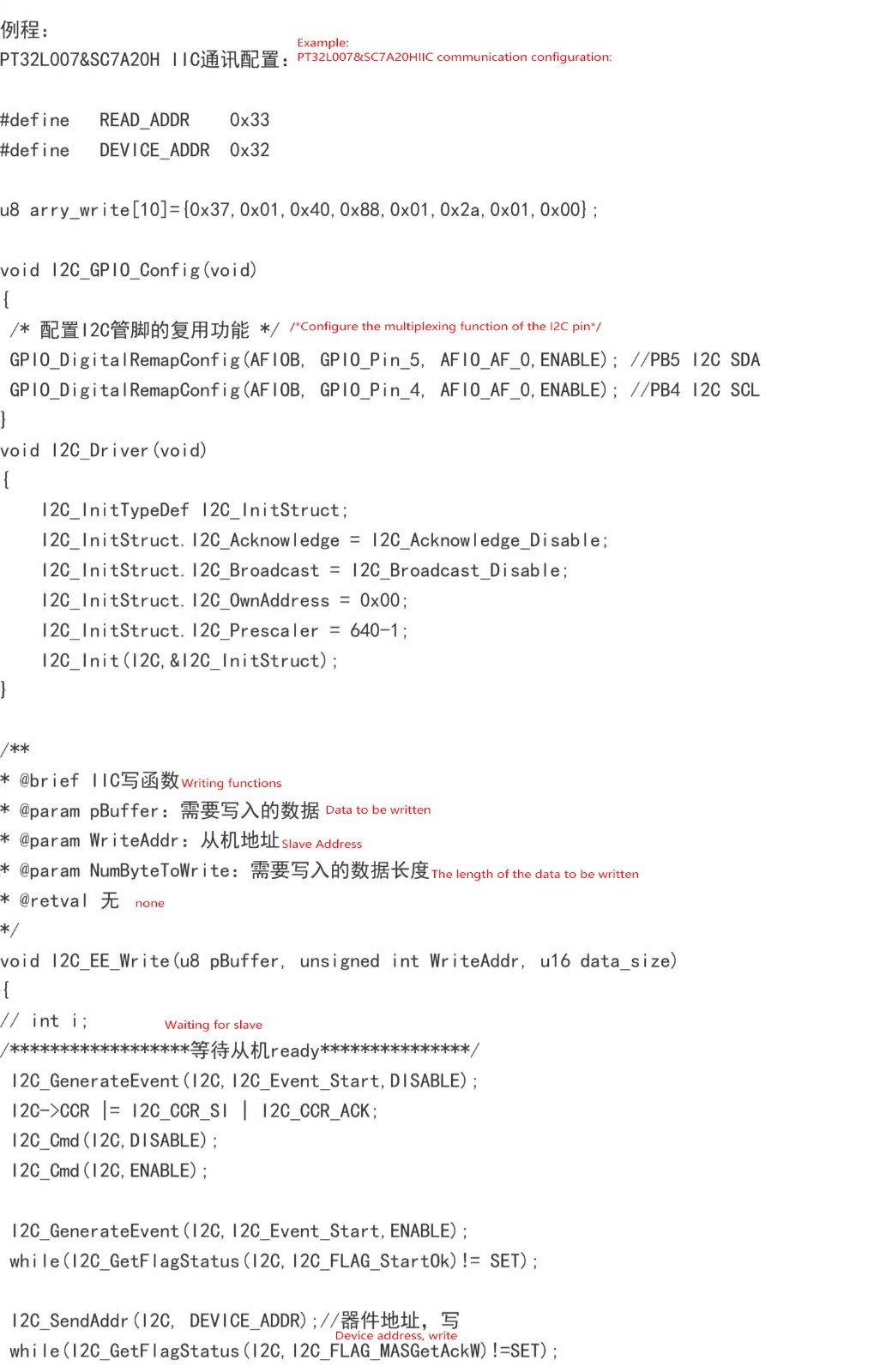

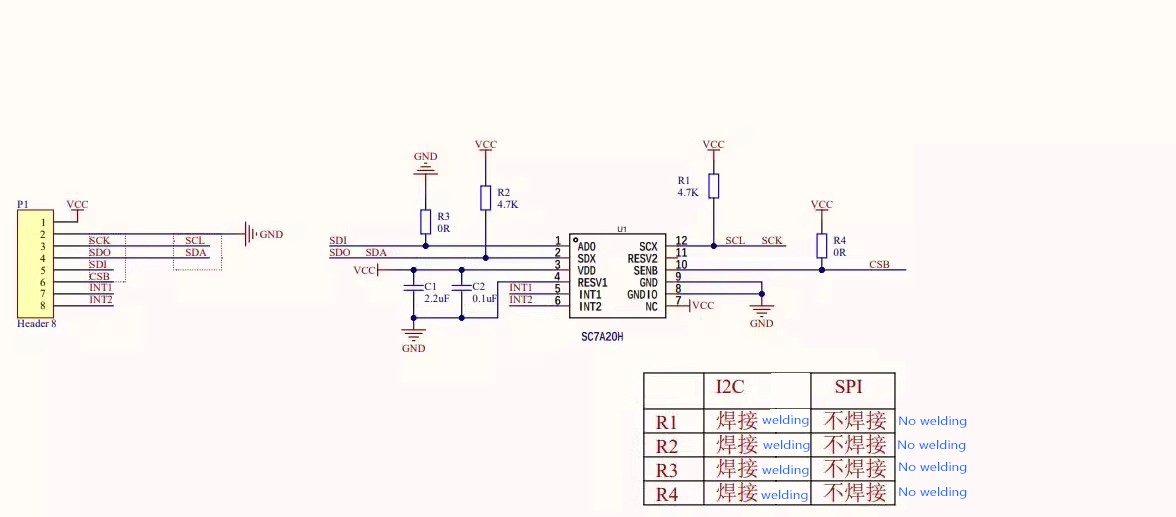

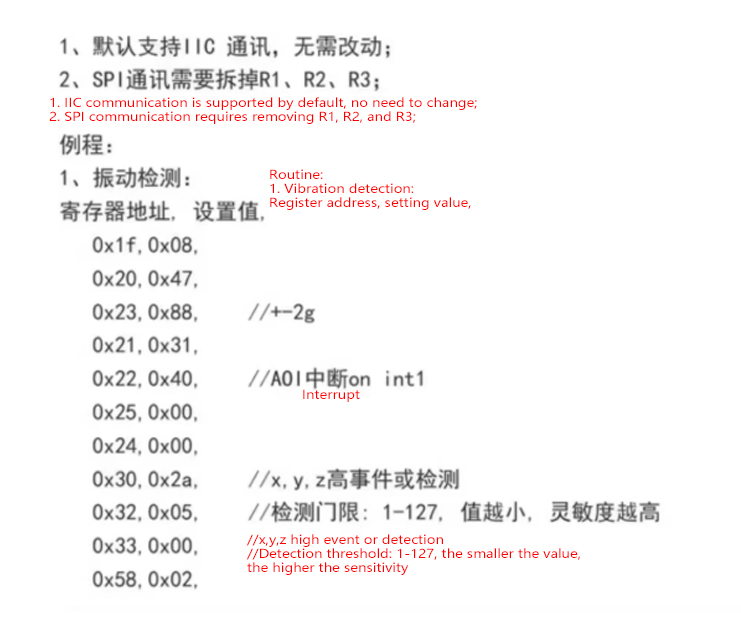

Product Instructions

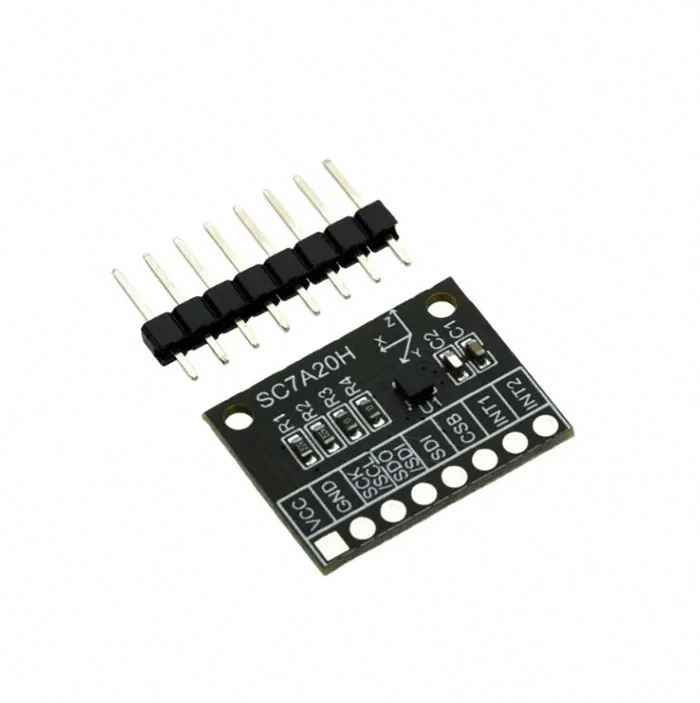

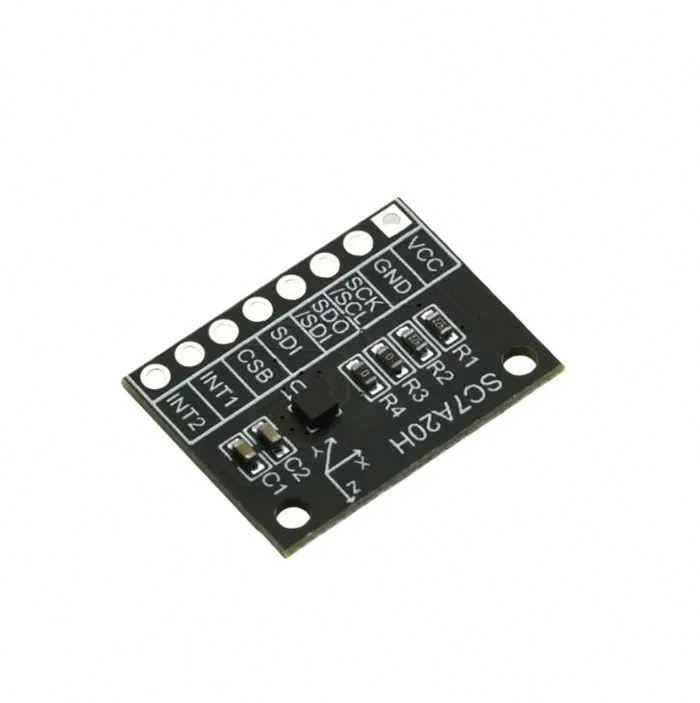

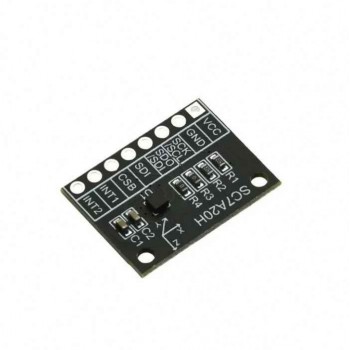

  Actual image of the product

​
