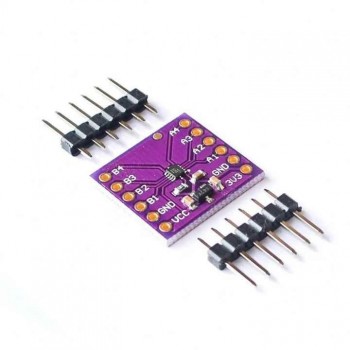

TXB0104 4-bit bidirectional voltage level converter automatic direction induction WCMCU-401

Product Description

1.2-V to 3.6-V on A Port and 1.65-V to 5.5-V

on B Port (VCCA ≤ VCCB)

VCC Isolation Feature: If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State

Output Enable (OE) Input Circuit Referenced to VCCA

Low Power Consumption, 5-μA Maximum ICC

I OFF Supports Partial Power-Down Mode Operation

Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

ESD Protection Exceeds JESD 22 * A Port: * 2500-V Human-Body Model (A114-B)

1500-V Charged-Device Model (C101)

B Port: * ±15-kV Human-Body Model (A114-B)

1500-V Charged-Device Model (C101)
