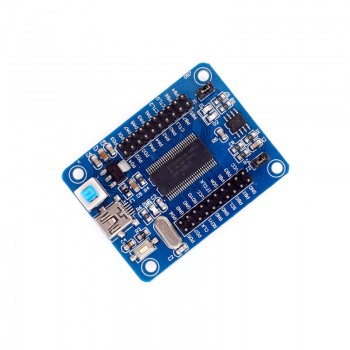

EZ-USB FX2LP CY7C68013A USB Core Board Development Board Logic Analyzer

Product Introduction

CY7C68013A is a core development board that establishes a communication connection with USB and is functionally compatible with USB 2.0 USB IF communication. Programs can be uploaded to AT24C128 via USB, and the board provides 16K program memory (EEPROM) for reading and writing through J4 jumper caps (plug in jumper cap, turn off AT24C128, unplug it, turn on AT24C128), effectively compensating for storage deficiencies.

Product Parameter

Interface type: mini USB

USB port power supply voltage: 5V

Product Funtions

Using examples

Connect to the computer via USB cable

Install the driver (select the Driver folder)

If the installation fails and displays' does not include digital signature ', you can disable digital signature before installing

If there are still issues with the driver after installation, as follows

The driver for this device has been blocked from starting as it can cause issues in Windows. Please contact your hardware vendor for a new driver“

Download a 360 Driver Master and fix the driver. After fixing the driver, it will be displayed in the Device Manager

“CYPRESS FX2LP NO EEPROM DEVICE”

Product Size

Product Show
